portable porta cabin

Temporary modular houses built for various spaces

Top Porta Cabin supplier & Manufacturer in China

K-home porta cabin is made of galvanized steel frame and insulated sandwich panels. Using modular technology, standard size production. Easy to relocated, detachable, fast installation, low transportation cost, and complete supporting facilities. The standard porta cabin sizes are 20ft and 40ft, also can be custom designed according to your needs, stacked up to 3 layers. Regular porta cabin container has one ready-made door, two windows, two lamps, floorboard, ceiling, and electrical system. The wires are fully enclosed, with good fire resistance and high seismic performance, which will escort your stay.

The portacabin is designed with excellent safety performance, all-steel frame designs with a good drainage system can effectively resist earthquakes, strong winds, and rains. The wall is made of fireproof material, which can also prevent moisture in the case of sound insulation and heat insulation. If your area has more rain, don’t worry! The roof waterproof can be flat-top or double-slope roof structure according to your climate characteristics. The portacabin average lifespan is more than 15 years, which is very convenient for later maintenance. Only the damaged parts need to be replaced. What’s more, the used porta cabin can be as a warehouse, so it is multi-functional.

Send Email To Khome

The Guide to Porta cabins and cabin Containers

What Is Porta Cabin, and where can it be used?

Porta cabin is a kind of temporary building, also called of detachable container house. Porta cabin’s standard size is 5950(L)*3000(W)*2800(H) mm. They use high-strength steel to build the main frame, and use high-quality sandwich wall panels as walls and roofs to form a sturdy and durable overall structure. Prefab container cabins are highly flexible and support customized size, material and appearance design according to needs to meet diverse scene applications.

Porta cabin houses are a multifunctional solution for project camps and commercial spaces with excellent mobility. They can be quickly deployed in different locations to provide users with a convenient and comfortable space experience. The internal layout can be flexibly adjusted according to the number of people to achieve efficient use of space.

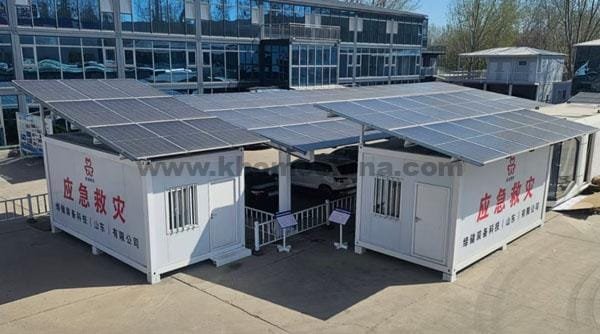

In addition, modern container house roofs can integrate solar photovoltaic systems to provide clean energy for indoor lighting, heating and water supply equipment, effectively ensuring electricity demand in remote areas.

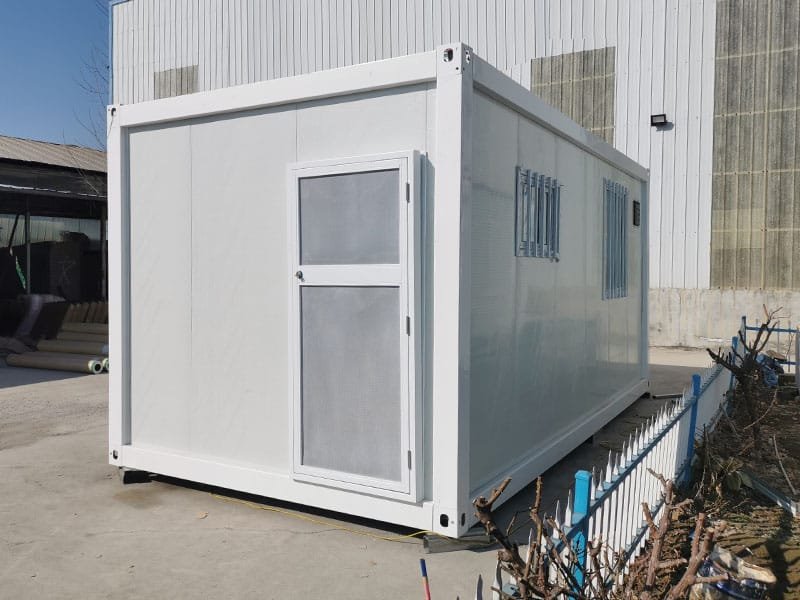

With modular characteristics and rapid deployment capabilities, portable cabin containers are widely used in on-site offices, meeting rooms, staff dormitories, schools, hospitals, laboratories, refugee camps, toilets, storage rooms, etc. It has become the preferred solution for temporary modular buildings.

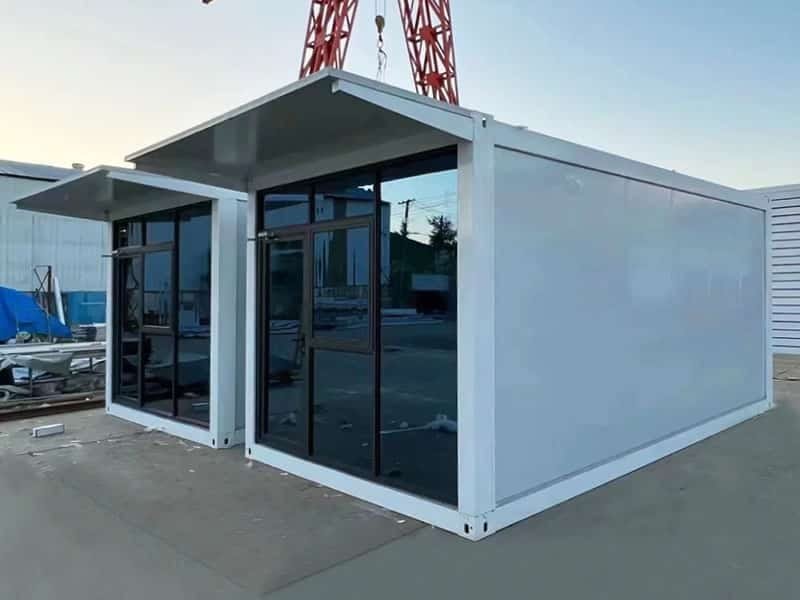

porta cabin
porta cabin accommodation unit
porta cabin container
portable toilet cabin
Customized kitchen containers
portable security cabin
portable guard house
portable office cabin
porta cabin office

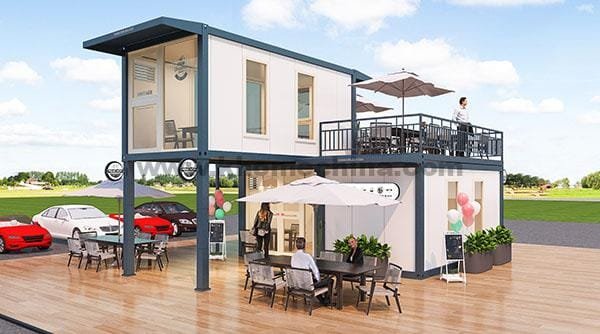

portable shop cabin

What you Should Know Before Buying a Porta Cabin?

Learn About the Porta Cabin base frame

The main structure of the prefab cabin is stable. The primary consideration for large camp construction is safety. The portacabin can be stacked up to 3 floors. The main structure and the density of the purlins of the bottom frame determine the load-bearing capacity and overall safety of the floor.

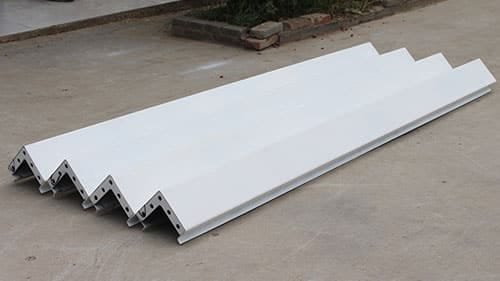

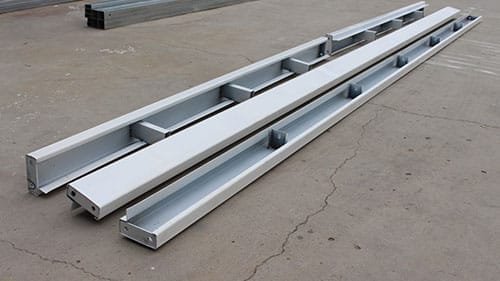

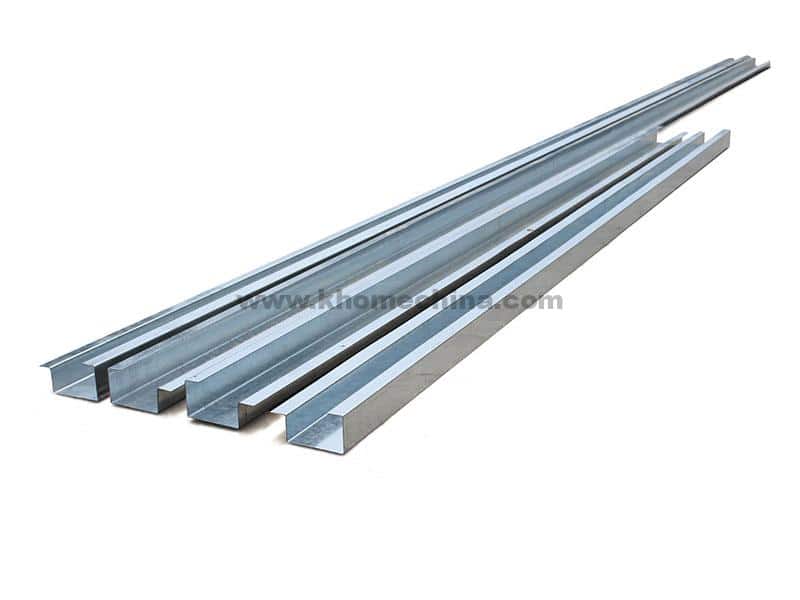

The main beams and columns of the porta cabin container are formed by cold bending with 2.3 mm thick galvanized steel. The surface treatment is completed by electrostatic spraying. The galvanized layer provides basic corrosion protection, and the spray coating gives the structure a unified visual texture. The double protection system ensures that the frame has both long-term corrosion resistance and aesthetics.

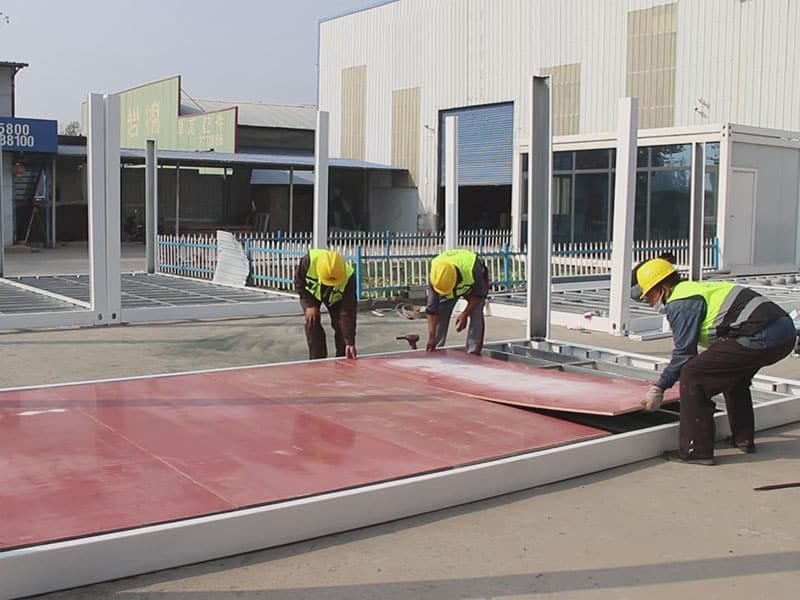

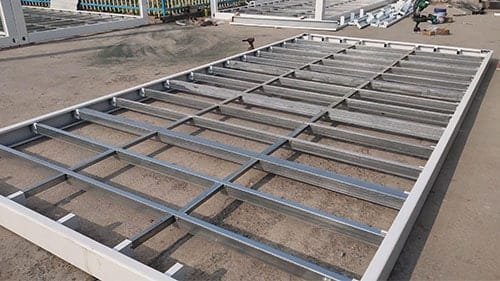

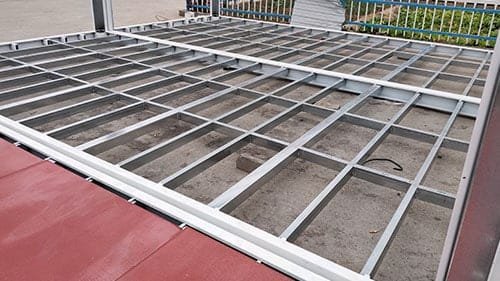

The bottom support system is composed of 14 long purlins and 30 transverse short purlins. The long purlins are 80x80mm (4 pieces) and 40x80mm (10 pieces). The two specifications of steel are evenly spaced. There are 30 transverse short purlins with a size of 30x50mm. The precise grid structure at the bottom can significantly enhance the platform’s bearing capacity and provide a stable foundation for the upper building.

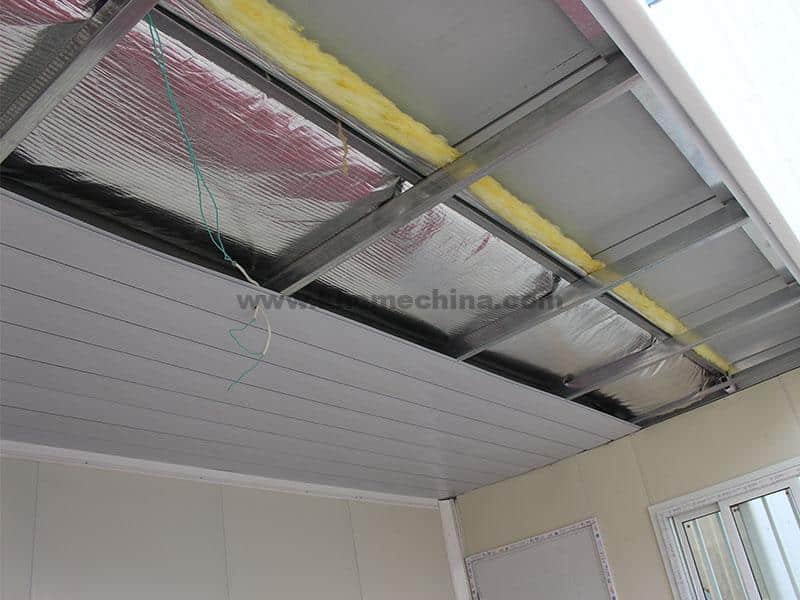

The internal roof structure of the container house is composed of 0.4mm decorative ceiling and 50mm insulation core material, which reduces the heat conduction between indoor and outdoor.

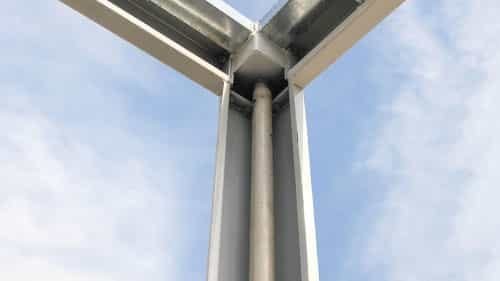

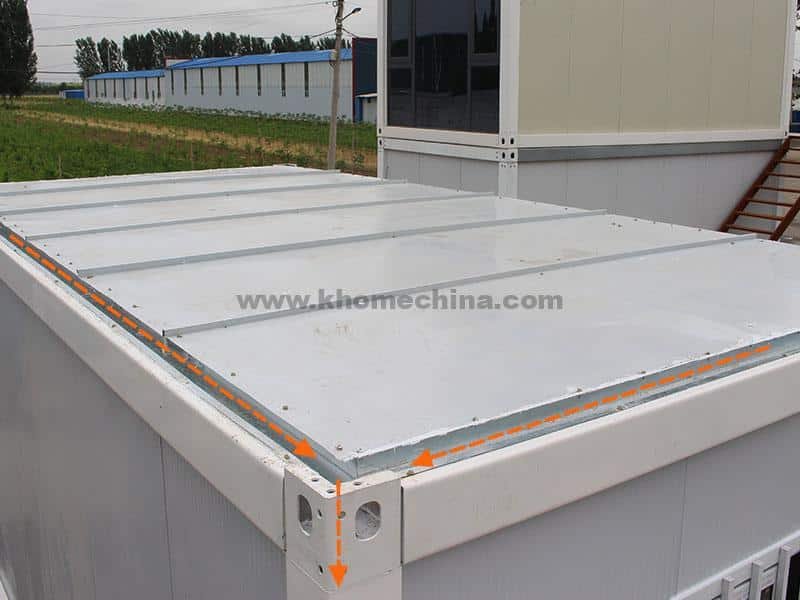

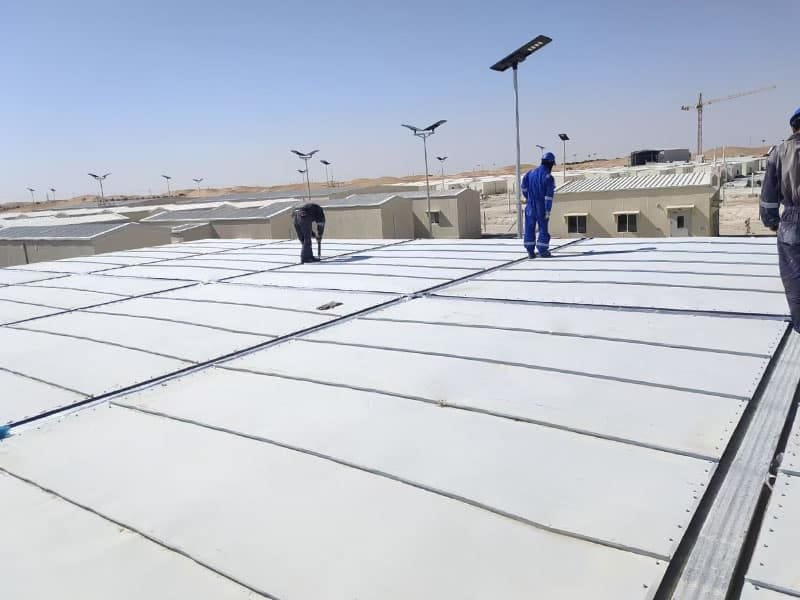

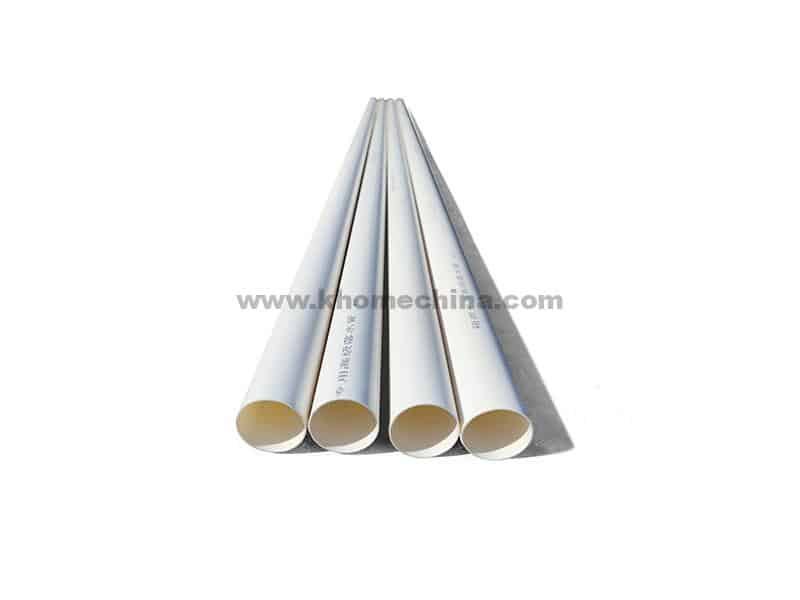

The external roof system is covered with 0.4mm high-strength galvanized steel plate. A drainage structure with a two-way slope (uplift in the center and gradually lower around) is adopted. A deep groove gutter system is set at the eaves, and a drainage path is formed with the preset downpipe to ensure the smooth flow of rainwater.

Ensure that the portacabin has a good drainage system. The drainage system of the porta cabin is very important. If you do not consider this when buying, it will become a headache for you when it rains heavily. A good portable building should be weatherproof and have strong resistance to natural disasters.

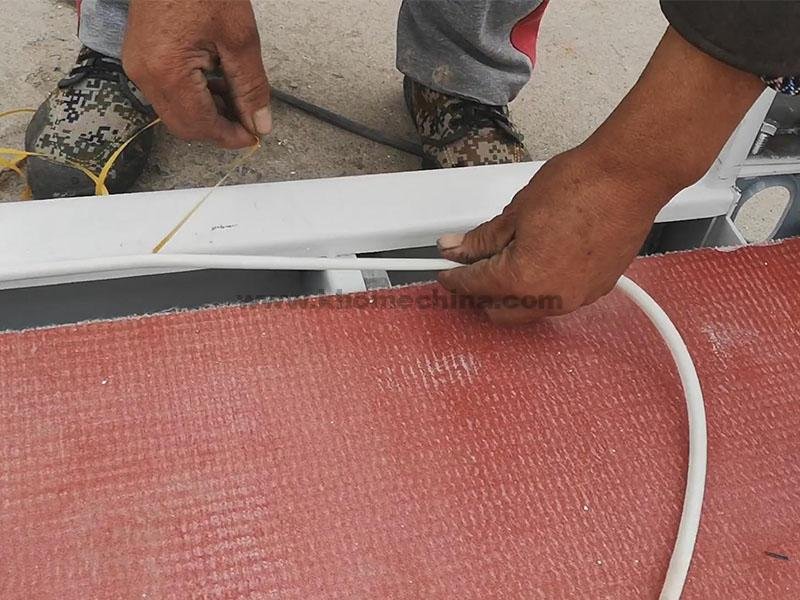

Ensure that the porta cabin has a good internal seal. Inferior porta cabins may have very poor sealability and may make some noise when there is strong wind. The Porta cabin, which is well-sealed, does not have this problem.
insulation. When looking for a suitable portable structure as a storage building, make sure it has adequate and proper insulation.

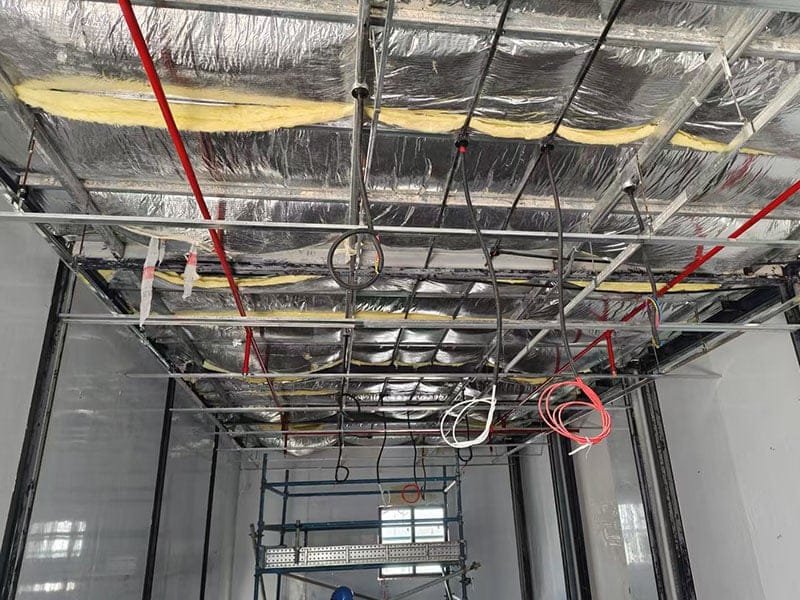

Electrical facilities. Depending on the purpose of your Porta cabin, it is strongly recommended that you ensure that you provide the correct wiring, lighting and sockets.

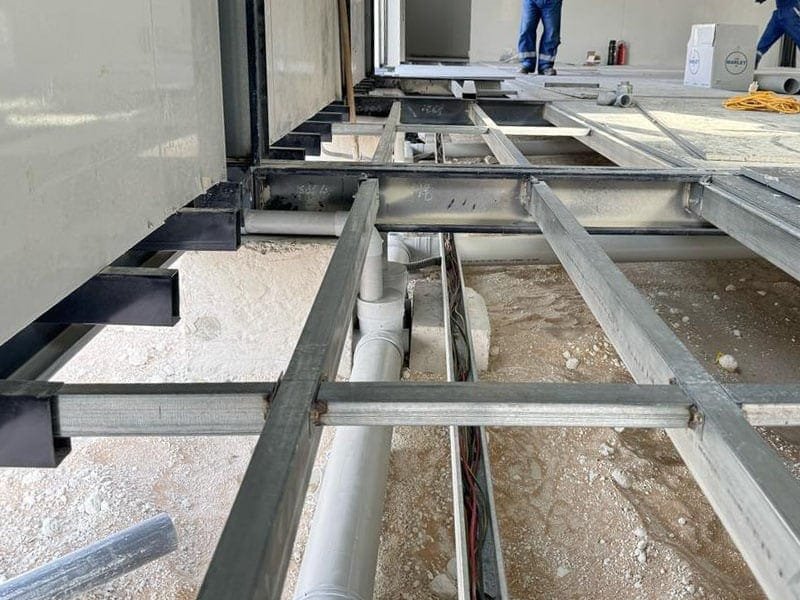

Plan plumbing in advance. Installing the plumbing system before installing the floor and ceiling makes it easier to manage the plumbing.
Prefabricated porta cabin aesthetics. The porta cabin should have a beautiful appearance and complete internal facilities. So make sure that the portable building you buy has matching finishes and does not require additional exterior paint.

Container houses do not have high requirements for foundations. They only need to be placed on flat ground. For some special ground, point foundations, strip foundations, or concrete hardened foundations can usually be set up.

What Are Porta Cabin Walls Made Of?

The porta cabin wall panels are made of sandwich panels. There are three different materials and thicknesses to choose from, depending on climate and geography. These wall panels are good for any bad weather.

No.	Wall Panel Types	Thickness	Options
1	Rockwool Sandwich Panel	50mm/75mm/100mm	Standard Options. The most cost-effective choice.
2	Polyurethane Sandwich Panel	50mm/75mm/100mm	high-end choice, better performance, more beautiful.
3	EPS Foam Sandwich Panel	50mm/75mm/100mm	the cheapest option, the shorter service life choice.

The sandwich panel consists of two layers of galvanized metal panels (or panels of other materials) and a polymer insulation core that is foamed and cured directly in the middle of the panel, which is easy to install, lightweight, and efficient. Sandwich board is a common product in modern building materials, which is not only good in flame retardant and sound insulation, but also environmentally friendly and efficient.

It is widely used in Purifying factories, combined house, building top attachment, indoor partition, automobile painting room, refrigerator, and other projects, e. G. Interior decoration of civil building for medicine, electronic, foodstuff, beverage, vegetable preservation, and large refrigerator, etc.

Features Of Sandwich Panels:

The weight per square meter is less than 24kg, which can fully reduce the structure cost.
Light weight, plug-in, installation and free cutting characteristics, which determine the ease of installation, which can improve efficiency and save construction period.
The surface material and heat preservation material of the color steel composite core board are non-combustible or non-combustible materials, which can meet the requirements of fire protection regulations.
Colored steel plates treated with special coatings will last for 10-15 years. Afterwards, anti-corrosion coatings will be sprayed every ten years, and the life of the plates will reach more than 35 years.
The clear lines of the profiled steel plate are as many as dozens of colors, which can meet the needs of any style of building.
Thermal insulation Commonly used thermal insulation materials. Include: rock wool, glass fiber cotton, polystyrene, polyurethane, etc., with low thermal conductivity and good thermal insulation effect.
Environmental protection and noise prevention.
The sound insulation strength of the composite board can reach 40-50 decibels, which is a very effective sound insulation material.
The plasticity and strong profiled steel plate can be cut arbitrarily, which can meet the needs of special design.
High-strength High-strength steel plate is used as the base material, the tensile strength is 5600 (kg/cm2), plus the most advanced design and roll forming, it has excellent structural characteristics.

Study Your Local Regulations Carefully

When deploying porta cabins globally, strict compliance with the building regulations and industry standards of the target countries is the first prerequisite for project success. Although our products adopt a universal modular design, each country has its own rules and standards. There are significant differences in the fire rating, structural wind pressure coefficient and seismic performance requirements of temporary buildings in different regions.

Find a full-service contractor

Find a high-quality porta cabin contractor to assist in the entire after-sales and installation process, rather than choosing inferior products and services for lower prices. K-home specializes in providing porta cabin construction for construction sites and large camps. Our projects cover Mali, Ethiopia, Kenya, Nigeria, Guatemala, Guyana, Australia, Philippines, Singapore, Japan, Indonesia, Myanmar, Thailand, France, Belize, etc. In many countries, our porta cabin has passed ISO and CE certification, and the service life is more than 15-20 years.

We have a professional sales, design and after-sales service team. Our Service Include:

Layout plan can be designed if needed.
Installation introduction / CD / installation drawing will be provided if needed.
Engineers and workers can be sent abroad for guidance and installation.
5 professional engineers for consultancy and enquiries.

Our Picks for Best Porta cabin design

K-home can provide you with free design solutions. These pre-built porta cabin can be used in a variety of environments, including hurricane and island environments. Whether you were ready for modular building for your projects, accommodation, mobile classrooms or school buildings, a medical center, welfare unit, a laboratory, ablution blocks, or a canteen, you will definitely find a portable modular building solution that meets your expectations.

Get A Free Design

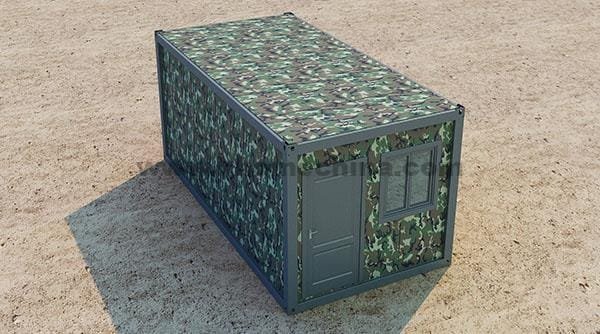

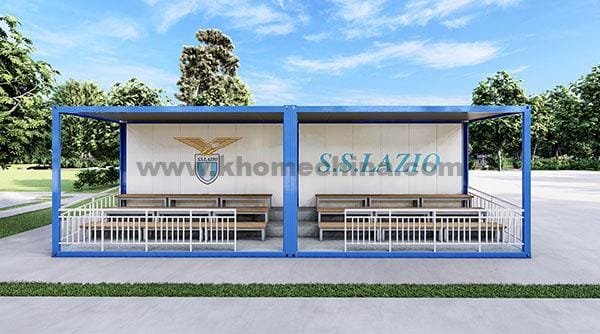

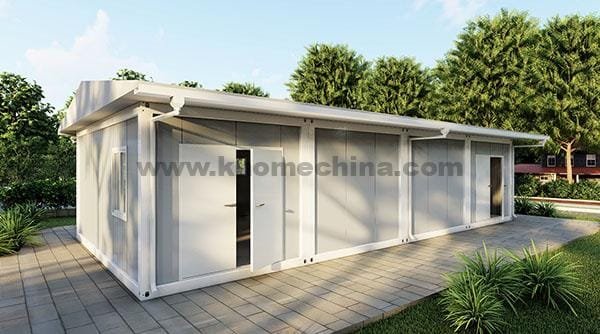

Porta cabin exterior designs to suit a variety of scenarios

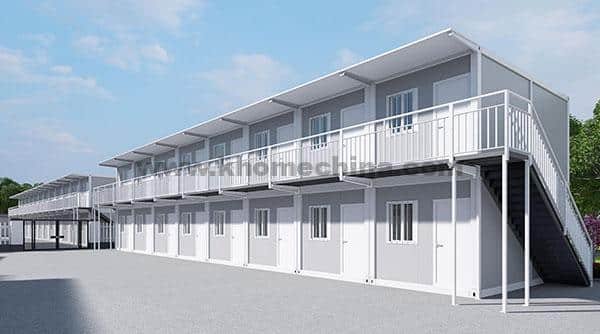

Porta Cabin Accommodation is a very helpful product in the construction industry whether it is a government project or the private project. Nowadays portacabin is getting very popular the reason behind its popularity is that the frequent use at the site in the construction industry. Therefore the Portacabin makes the work easy and fast at the construction site.

ortable cabins are used for various purposes like worker accommodation to stay temporary for all workers, portable site offices for staff meetings and discussions, portable stores to store the material, and others all the important equipment which is to be used during the construction. Portable laboratory for any kind of testing regarding the project.

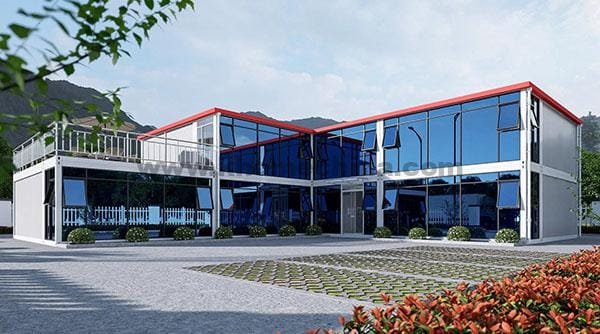

porta cabin office design layout

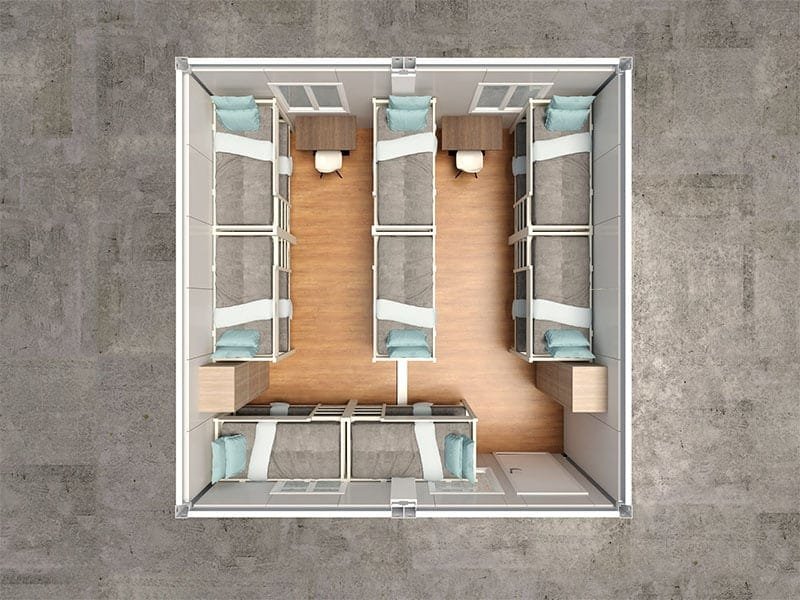

Porta Cabin Accommodation unit design

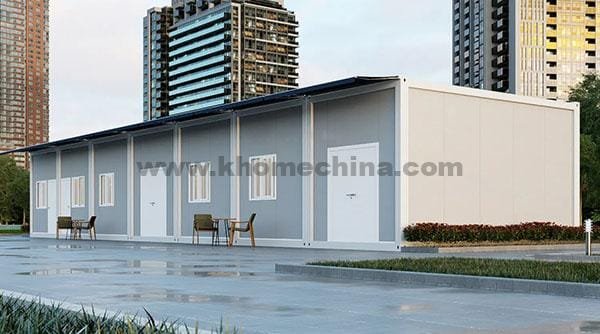

porta cabin for canteen & kitchen design

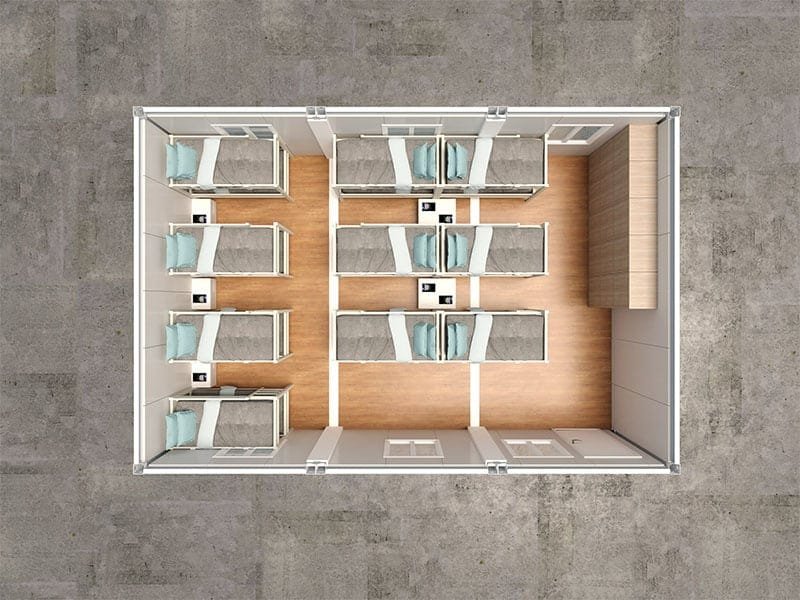

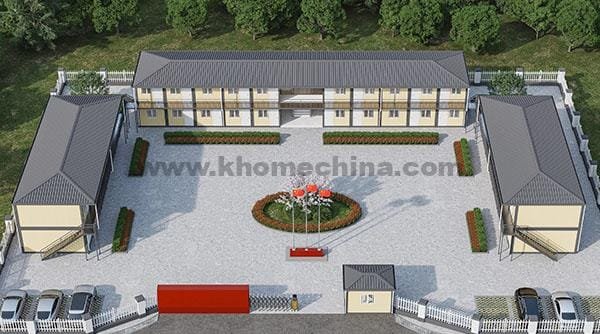

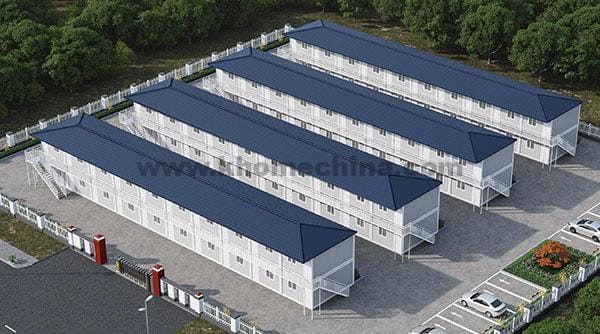

labor camp accommodation design

portable toilet &shower cabin design layout

Why Porta Cabin?

1. Porta Cabin Advantages

Porta cabin as a temporary building, meet the need for affordability and safety, and comfort and are the most ideal solution for large camp housing, construction site housing, temporary offices, resettlement housing, temporary schools, and temporary hospitals.

2. Low Construction and Installation Cost

Porta Cabin is made of modular lightweight steel construction that is easy to assemble, inexpensive, and has a short construction cycle. Compares to the permanent building, as the data shows prefabricated porta cabin is about 30% cheaper than the cost of a permanent building.

3. Easy to Move and Install

Porta Cabin is a portable structure that can be repeatedly disassembled and reassembled and can be easily transported to new project sites by crane. The setting-up of the prefabricated porta cabin on-site is easy and quick. All the parts are pre-produced in our factory. 3 workers in one unit, could install 3 prefabricated porta cabins in one day. Per prefabricated porta cabin is 6meters long, 3meters wide, and 2.8 meters high.

4. Recycle To Use

Once your project is finished in 1 or 2 years, have to shift to another place, the house could be disassembled, and transfer all the parts to another place to make assemble again. Under proper maintenance, the prefabricated portacabin could recycle to use 3 times.

5. Easy to Customize, Flexible Layout Design

The Porta Cabin comes in a standard size of 20ft, but can of course be custom designed to meet your needs, with internal partitions that can be added to meet your project requirements.

6. Easy to Build Porta Cabin Foundations

Considering the drainage system, a porta cabin needs to be built on a foundation, and there are usually two ways to build a foundation.

Full Concrete Foundation: If used to build a camp, the thickness of the concrete foundation depends on the number of floors in the project. If it is used for storage, it depends on the weight of the materials or equipment placed in the porta cabin.

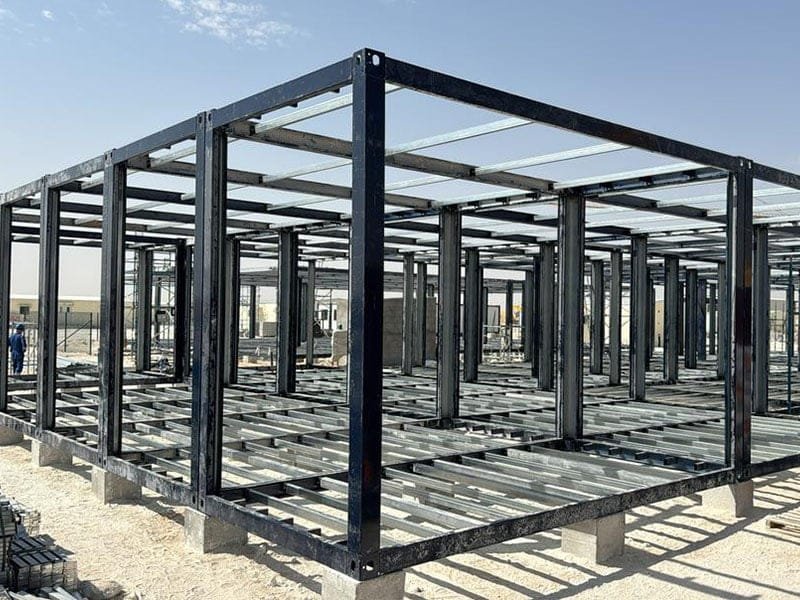

Dot Pillars foundation: Our most common method is to use Dot Pillars foundations for porta cabin foundations, using 6 bases per porta cabin unit.

All Hardened Foundation for Prefab Containers
Dot Pillars Foundation for Prefab Containers
Strip Foundation for Prefab Containers

How to Build a Porta Cabin?

Our portable home containers adopt a modular system, which is designed to be easy to master the installation method.
Before installing the porta cabin house, we will do lots of to perfect our installation files as following:

1. Detailed porta cabin installation video.

2. Vivid 3D porta cabin installation steps

3. Customized CAD installation layout

4. Customized Detailed installation steps

Any inexperienced worker can easily install the house according to our installation documents.

How to Transport and Delivery Porta Cabin?

Transport and Logistics

Porta Cabin, as a modular temporary building structure, is designed in a very convenient way for transportation. Under normal circumstances, the minimum order quantity is 4 units, so that all parts can be packed in an ISO 20HQ shipping container and transported to your location. If your project demand is relatively large, you can choose 40 HQ shipping containers for transportation, each box can be loaded with 10 Porta Cabin unit components, which will greatly save transportation costs.

On Time Delivery

Porta Cabin’s production and delivery speed is very fast, our monthly production capacity is 400 sets, and less than 60 sets can be delivered immediately. The general lead time is 15-30 days. The specific delivery time depends on the quantity you need. K-home has professional production equipment and a large amount of inventory and is definitely your reliable partner.

china Porta Cabin supplier, manufacturer, factory

K-home is a high-quality portable cabin manufacturer in China. We are located in Xinxiang, Henan, the birthplace of China’s container housing. Relying on the Asian transportation hub and being close to Qingdao Port, has resulted in convenient transportation and lower transportation costs. We have a complete industrial chain, and container houses in Xinxiang account for more than 70% of China’s market share. We have 15 years of experience in portacabin manufacturing, as a result of our high-quality products and outstanding customer service, we have gained a global sales network reaching, Philippines, Singapore, Indonesia, Kenya, Nigeria, France, Australia, Ethiopia, Spain, Mali, Somalia, Iceland, etc. We made a huge boost to the development of international trade. Eagerly welcomed to visit our factory.
