What is the Container Van House?
“Container van house” is a commercial term used in the local Philippine market to refer to “prefabricated container units” or “modular containers.”
Essentially, container vans are built from specially engineered prefabricated container units. Unlike traditional on-site construction, these modular containers are manufactured in controlled factory environments. This ensures superior quality control and structural precision.
Modern container vans represent a cost-effective and flexible infrastructure solution. They are widely used for worker dormitories, site offices, temporary sanitation facilities, commercial spaces, and more. These units are designed to meet various temporary or short-term emergency needs.
container van exterior
Container vans’ exteriors are typically white and feature a standard “one door, two windows” design, offering both versatility and cost-effectiveness. In addition, the sides of the container can be modified as needed, such as by installing glass curtain walls or adding corridor units. These modular units can be arranged or stacked. For safety reasons, it is recommended that they not be stacked more than three high.
standard container van houses-
container van houses with with corridor
-
2-story container van houses
-
3-story container van houses

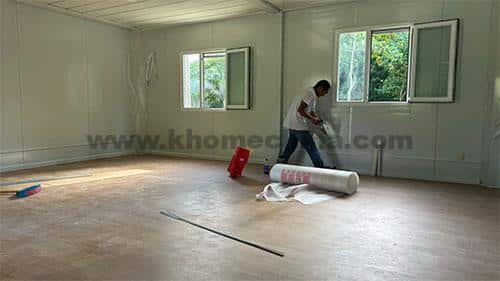

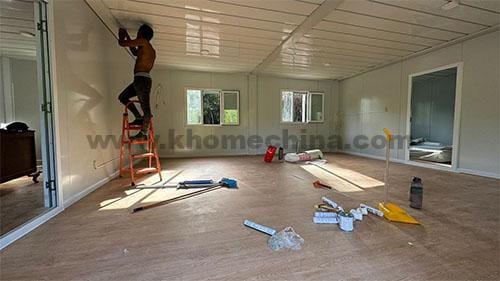

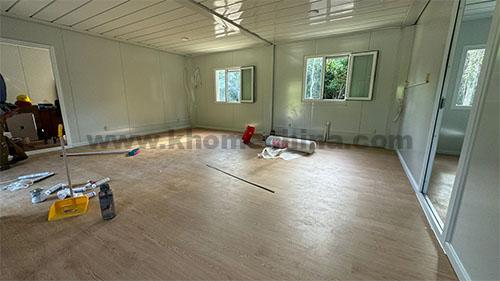

container van interior

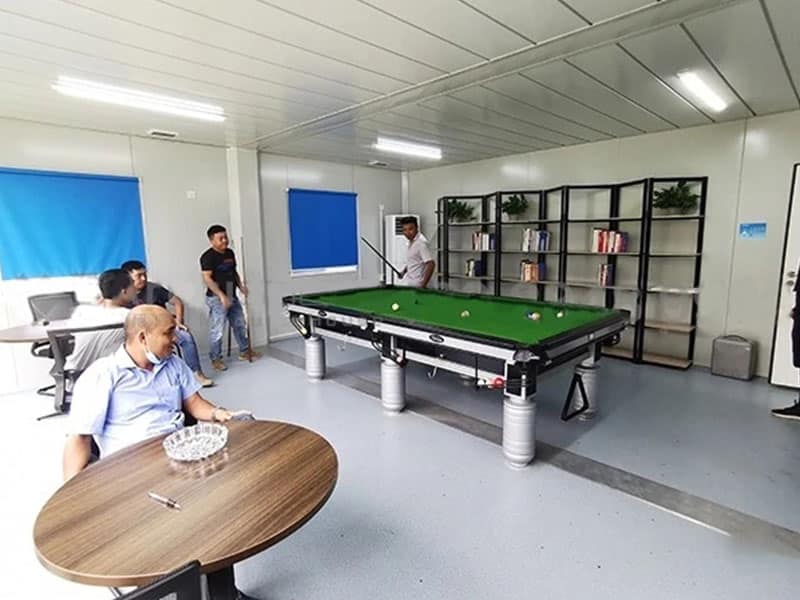

The interior of a container van can be flexibly planned to create spaces such as living areas, office areas, reception areas, dining areas, or sanitary zones. Users may either use a single unit for a single function, or combine multiple units to build an integrated functional system.
Technical Specifications: The Anatomy of a Quality Prefab Container Van
To stand out in the market, quality is non-negotiable. KHOME’s prefabricated container units meet strict standards. They feature the following specifications:
| Structure | Specifications |
| Container Van House Size | • Standard: 5950*3000*2800mm（20ft） • Sizes can be flexibly customized |
| Structure Frame | • 2.3mm High-strength galvanized steel |
| Flooring System | • 4+10+30 pics galvanized steel square tube • Reinforced MGO / cement board + customizable PVC vinyl flooring finishes available upon request. |
| Roofing System | • 3+5 pics galvanizedsteel square tube • 0.4mm ceiling + 75mm glass wool insulation + 0.5mm steel plate |
| Wall System | • 50mm rockwool panles + 0.4mm PPGI • Customization Options: 50–100 mm thick PU /PIR to meet specific requirements. |
| Electrical System | • Pre-installed electrical systems (compliant with AS, DIN, CE standards) |
| Door & Window | • Steel security door with security lock • PVC steel silding window • Customization options available |
container van house design
The container van house design is not a one-size-fits-all solution. Exceptional design requires a systematic balance among budget, site area, capacity, and functional needs. Whether you are planning to build a simple site office or a comprehensive remote camp, the planning phase often determines the success or failure of the project.
At KHOME, our professional team, backed by years of hands-on experience, is dedicated to providing one-stop solutions tailored to diverse functional scenarios and environmental conditions. We offer more than just the product itself; we deliver a high-quality environment suitable for living or working. Below is our classification of the main categories of container house designs:
A standard 20-foot container van offers 180 square feet of floor space (19.5′ L x 9.8′ W x 9′ H). It is the industry-standard size for portability. Common designs include: the standard model, units featuring glass walls, and layouts with a private restroom.
It is ideal for the following uses:
- Single Living Unit: A self-contained unit with a kitchenette and private bathroom.
- Share Living Quarters: Shared sleeping units for 2–8 people (can be equipped with bunk beds/private bathroom)
- Offices: A fully equipped workspace for up to 2-3 people that can be deployed anywhere.
- Lunch room：
-
Single living Unit floor Plan
-
Share Living Quarters Floor Plan
-
Single office Unit floor Plan
-
Single share office floor Plan
-
Container Lunch Room Floor Plan
When 17 sqm isn’t enough, the 40ft or larger prefabricated container van offers double (or even multiple times) the footprint. This design is preferred for:
- Family Residences: Allowing for a distinct separation between sleeping quarters and living areas.
- Multi-room Dormitories: Efficiently housing large numbers of workers in industrial or mining settings.
- Multifunctional offices: Providing separate office spaces for on-site supervisors and managers, supporting efficient communication and collaboration.
- Dining hall & kitchen: Provide the kitchen and dining space. Particularly in energy, mining, and oil camps, these facilities meet the dining needs of large workforces.
-
3x20ft container family room
-
40ft container van offices
-
40ft container living quarter
-
40ft container dining hall & kitchen
In situations where land footprint is limited or when constructing large-scale personnel camps, we offer solutions that involve expanding vertically. Modular container van units support vertical expansion of up to 3 stories.
-
2-story container van with terrace design
-
2-story container van with slope roof design
-
2-story container van with corridor container design
Modern container van house designs have moved beyond the utilitarian look of temporary structures. We use high-quality finishing materials and craftsmanship to enhance the aesthetics and quality of your building. For exterior wall cladding, a variety of options are available. These include Wood-Plastic Composite and decorative embossed metal panels.
customized container van options

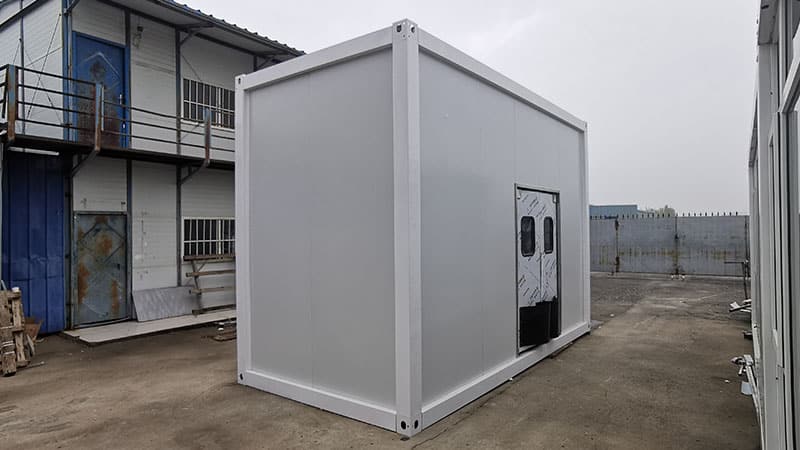

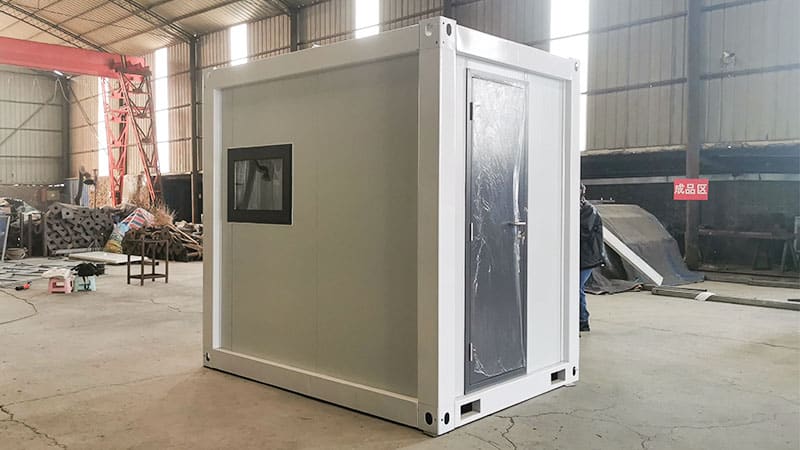

- Size: The standard size of the container van is about 3*6 meters. But, detachable containers are not restricted by the dimensions of standard shipping containers, thereby offering flexible size customization to meet unique requirements.

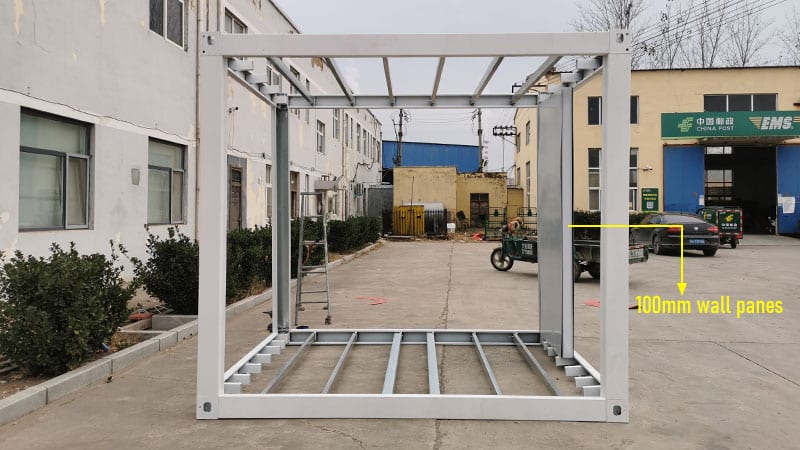

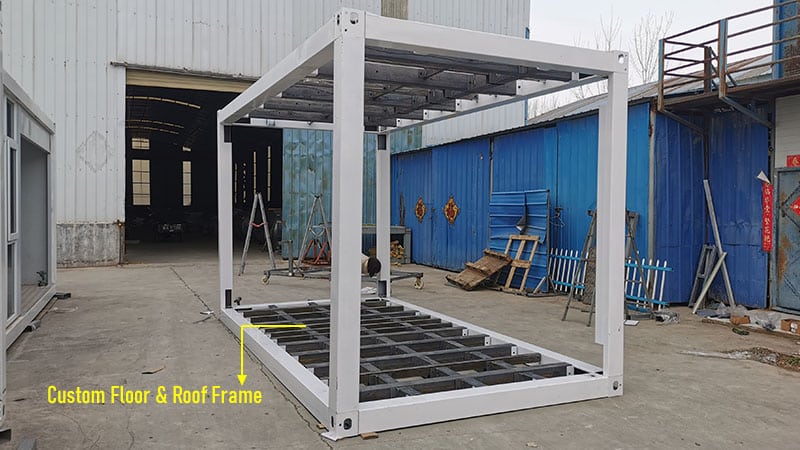

- Frame: Supports custom frame thicknesses and structural configurations to meet specific requirements.

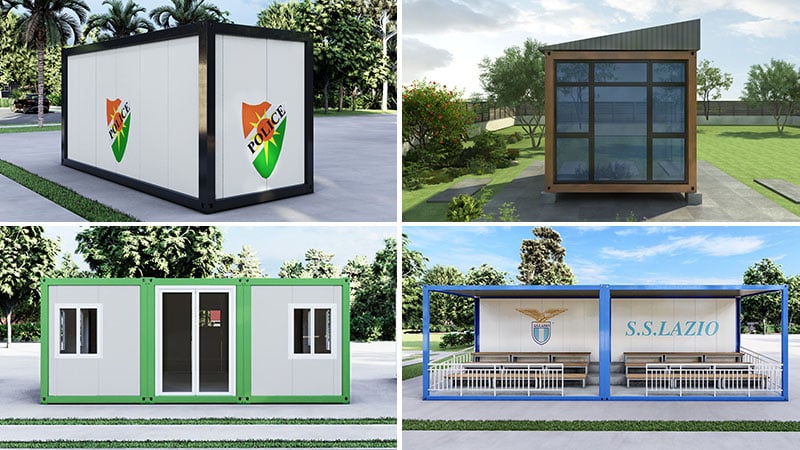

- Color: The standard frame color is white; dark gray can be freely customized. For other RAL colors, a minimum order quantity applies.

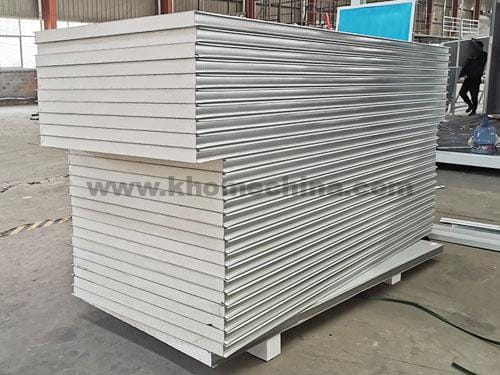

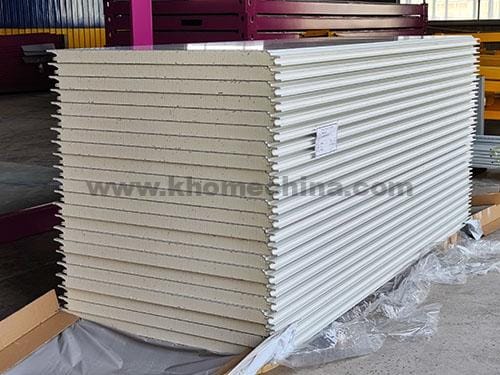

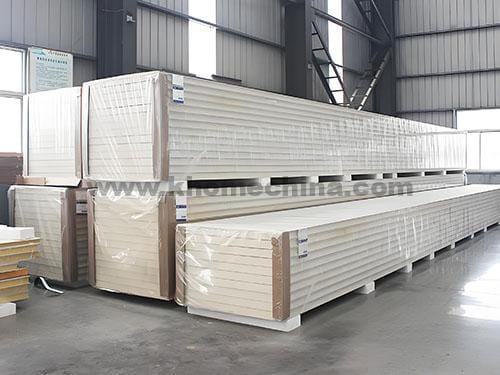

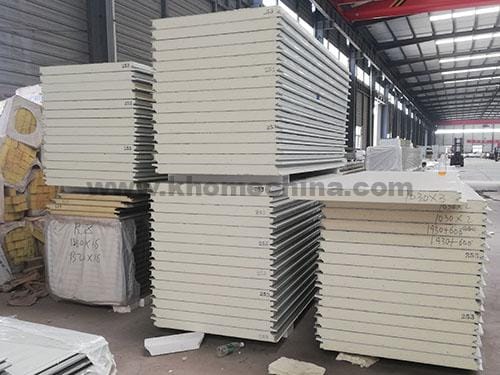

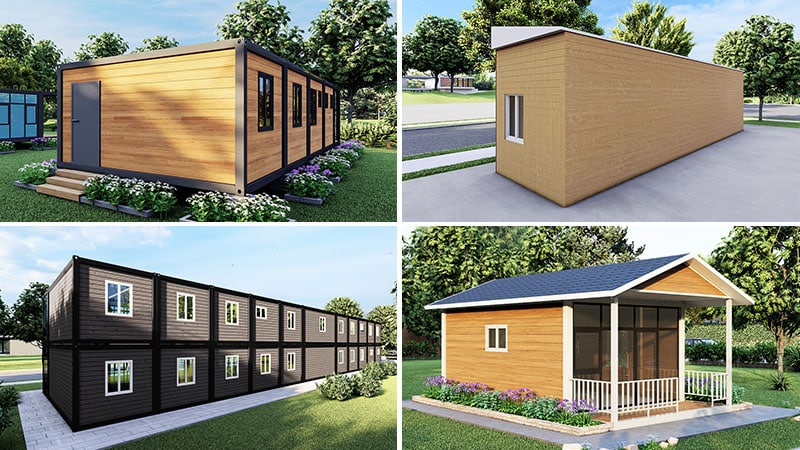

- Cladding：Customizable wall cladding panels (fireproof, moisture-proof, high-density polyurethane). Available in various thicknesses and textures.
- View Metal-Cladding Panel Documents

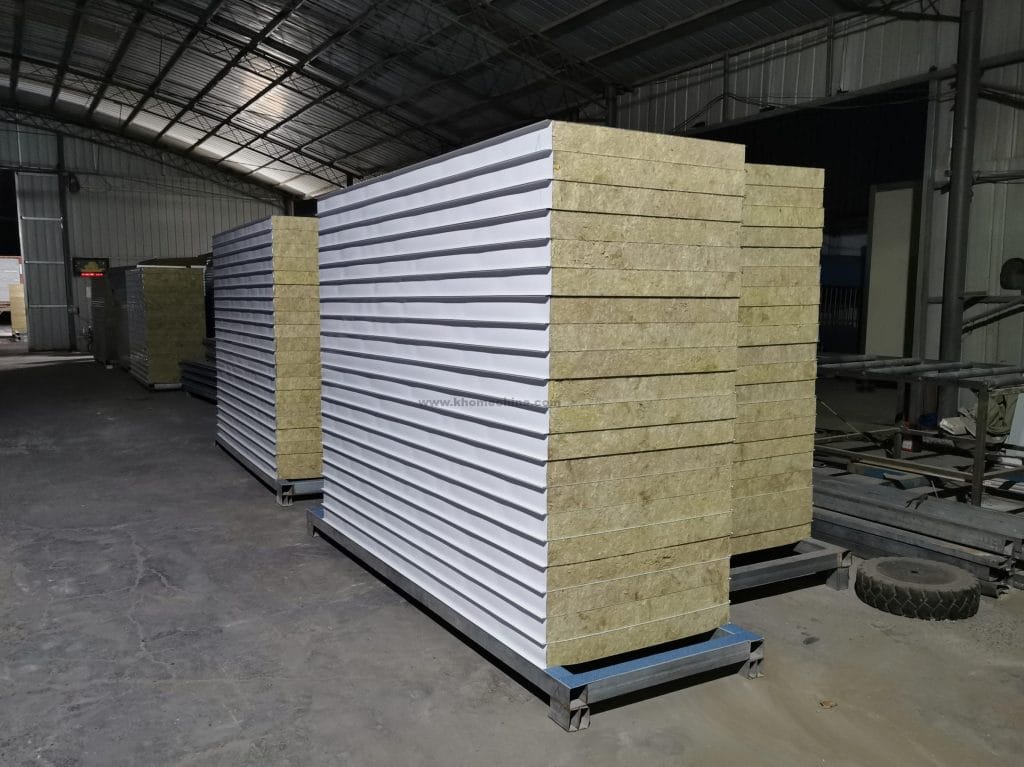

- Rock wool panel: Thk: 75–100 mm; Density: 80–120 kg/m³

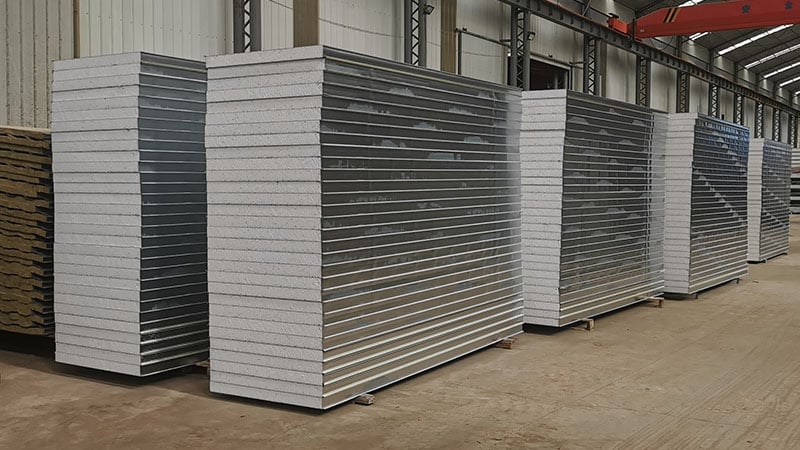

- EPS: Thk: 75–100 mm; Density: 8-10 kg/m³
- PU：Thk: 50–100 mm; Density: 38/40 kg/m³

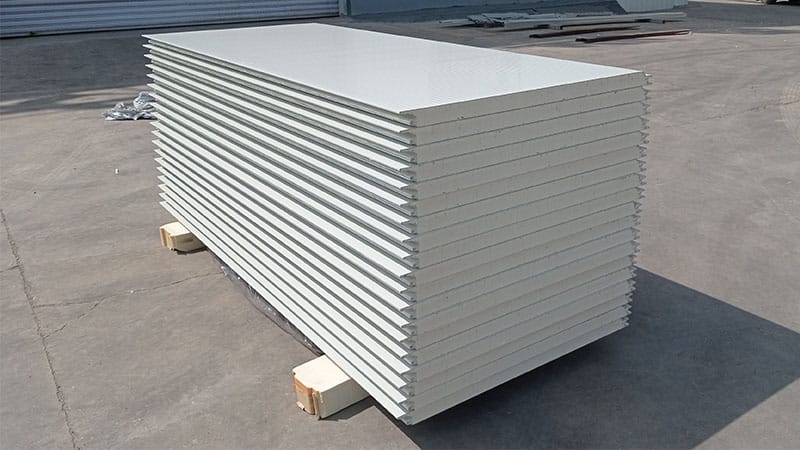

- PIR: Thk: 50–100 mm; Density: 38/40 kg/m³

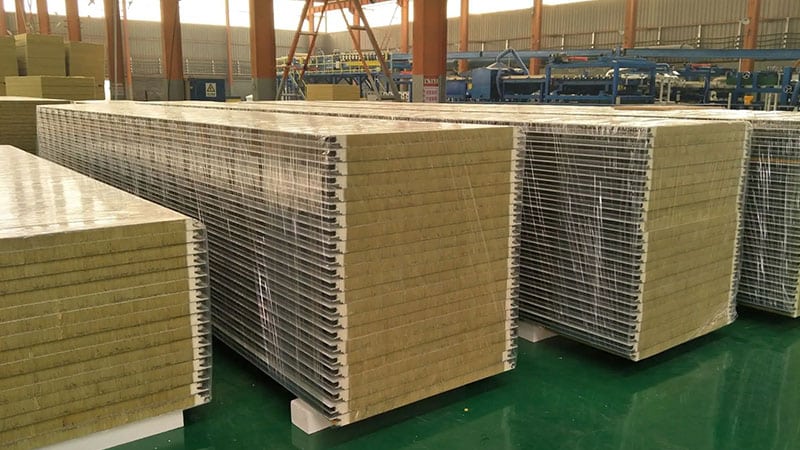

- PU-sealed Rock Wool panel: Thk: 50–150 mm; Density: 80-120 kg/m³

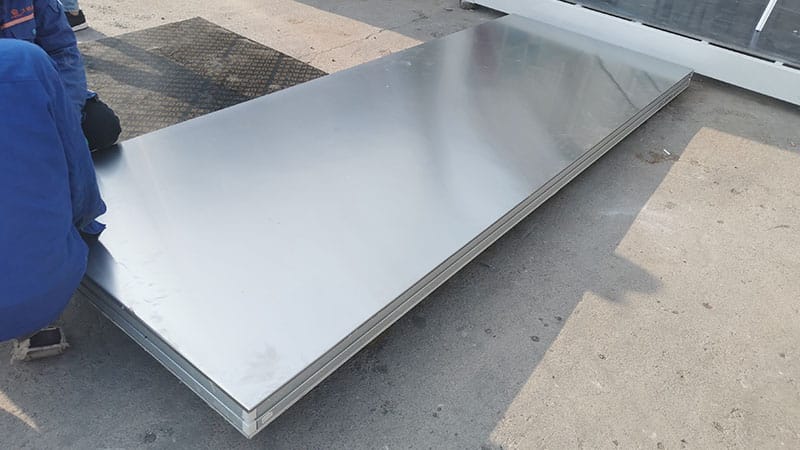

- Double-Layer Rock Wool and Magnesium Oxide Board

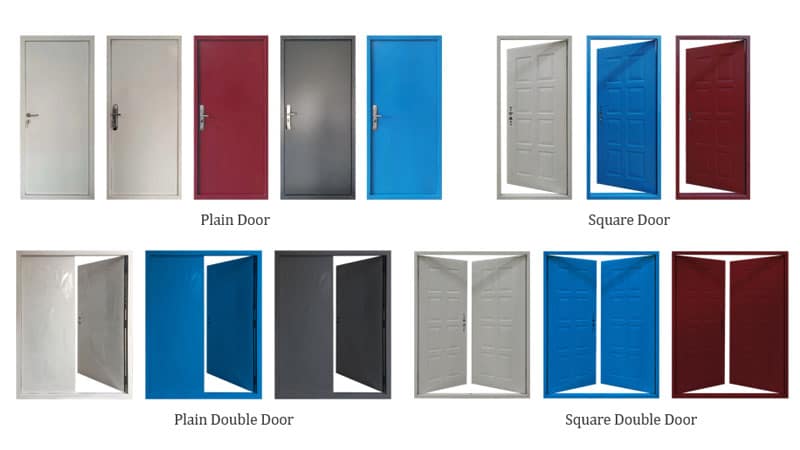

- Doors and Windows: Security Doors/Aluminum Alloy Windows/Thermal-Break Aluminum Windows

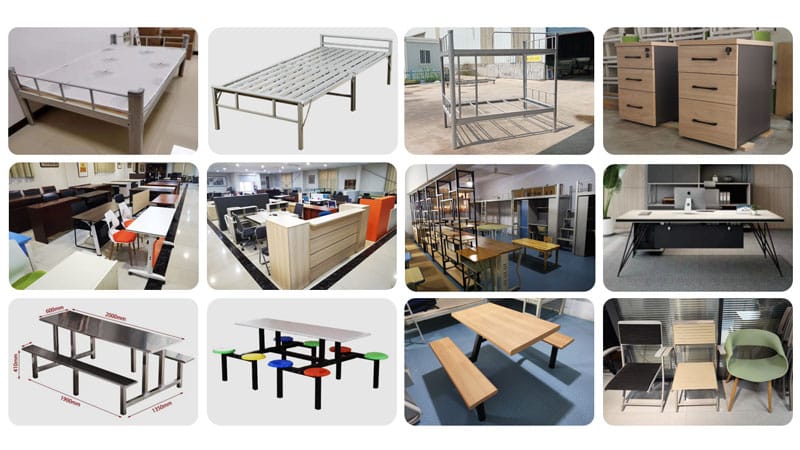

- Furniture: Home Furniture/Office Furniture
- Kitchen Facilities:

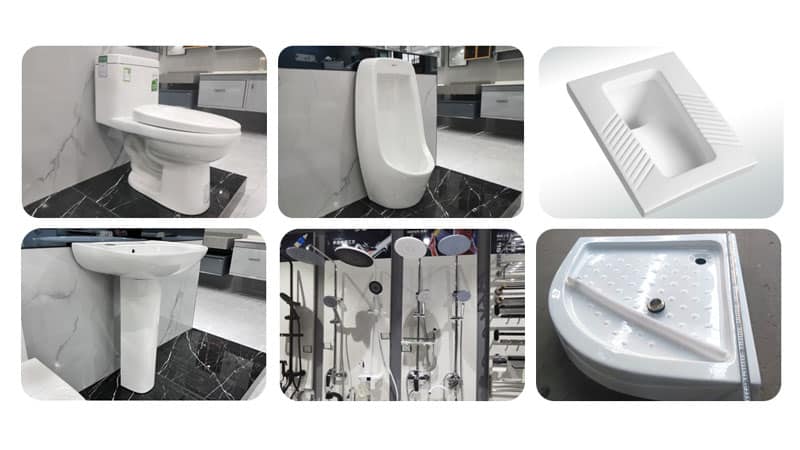

- Sanitary Facilities

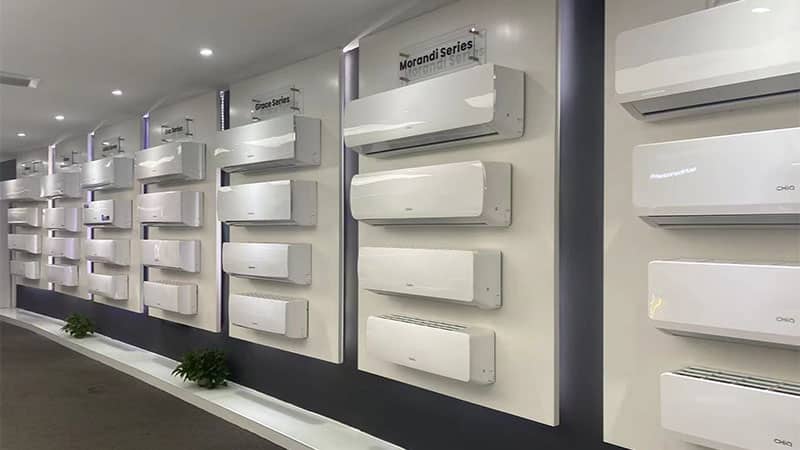

- Electrical Appliances
container van house philippines: Built for Local Conditions
Building container van houses in the Philippines requires comprehensive consideration of climate conditions, container structural safety, fire protection requirements, and green environmental protection. The following precautions can ensure the smooth progress of the project and the quality and applicability of container van houses.
Insulation and ventilation: Since the Philippines is located in the tropics and the climate is hot and humid, the insulation and ventilation of container van houses are particularly important. It is necessary to choose insulation materials with good effect. K-HOME provides you with a variety of materials. In addition to the conventional rock wool wall panels of different thicknesses as insulation materials, we also have polyurethane panels for you to choose from, which have a better insulation effect. At the same time, we will plan the space according to your use requirements to ensure indoor air circulation and prevent indoor temperature and humidity from being too high.
Waterproof and heat preservation design: Considering the rainy climate characteristics of the Philippines, the waterproof design of container van houses is very important. K-HOME container van houses have a good drainage system, and to adapt to the Philippine market, we have launched hydrophobic rock wool wall panels for you to choose from, which have better strength. At the same time, you can also upgrade the bottom frame for sealing to achieve better waterproof and heat preservation effects. Because of the climatic conditions in the Philippines, we recommend that you choose a gable roof container van house design so that rainwater can be better discharged while reducing the heat on the top and bringing a more comfortable experience.

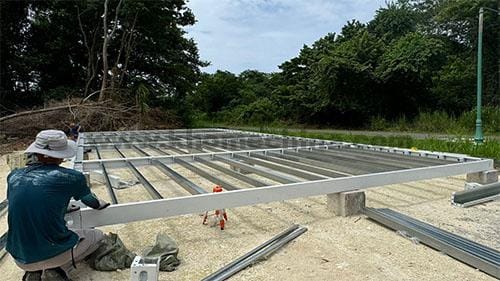

Add support structure: Considering the seaside situation in the Philippines, to ensure that the container van house is more solid during use under severe windy conditions, it is recommended that you choose to add support structures, such as platforms, anchor bolts, expansion screws, etc. These support structures can firmly support the containers to be more stable under windy conditions and improve the overall stability of the container van houses. In addition, we can also provide you with thickened container house structures to enhance stability.
Support structure design – embedded fixings -

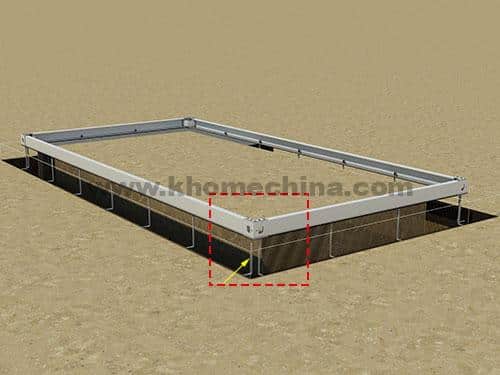

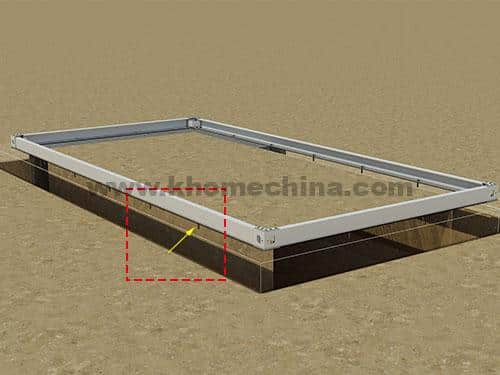

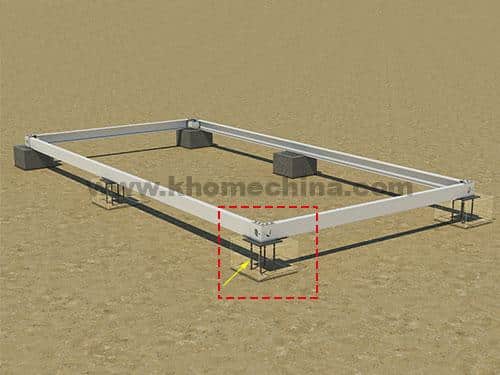

Support structure design – anchor bolts -
Support structure design – expansion screws
Our design solutions are within reach, support low-cost housing, and promote modern and comfortable aesthetics. We strive to give you customized space features and experiences through thoughtful design, original ideas, and creative modular building solutions. If you plan to buy container van houses, then our custom design services may be just the thing for you! Our design team and sales will specialize in planning your project, matching needs, budget, and sustainable value. Contact us!
Container Van Houses In The Philippines | The Prefab Solution for Every Need
Container van houses are a type of prefabricated housing that is widely used in the Philippines for large-scale on-site housing or on-site offices due to its high performance. With its high scalability and deep customization capabilities, these affordable, flexible and sustainable prefabricated container vans are perfectly adapted to the Philippines’ changing climate and diverse application scenarios . Container van houses are in demand in the Philippine market, especially when housing or temporary residences need to be built quickly.
Choosing a reliable supplier is the key to ensuring the success of the project. When purchasing container van houses, it is necessary to ensure that the supplier has legal business qualifications and a good reputation. As a professional prefab container supplier who has been deeply involved in the Philippine market for many years. K-HOME has successfully delivered projects in dozens of countries including the Philippines, Cebu, Manila, etc., covering all-scenario needs such as accommodation, office, and camping. These projects have been highly praised by customers.
K-HOME has extensive experience in exporting prefabricated container houses to the Philippines. We not only provide container houses that meet local building specifications, but also provide you with specific installation guides or local installation teams. Achieve one-stop delivery from factory prefabrication to on-site installation.

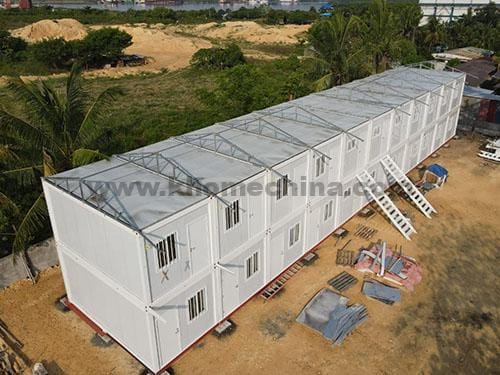

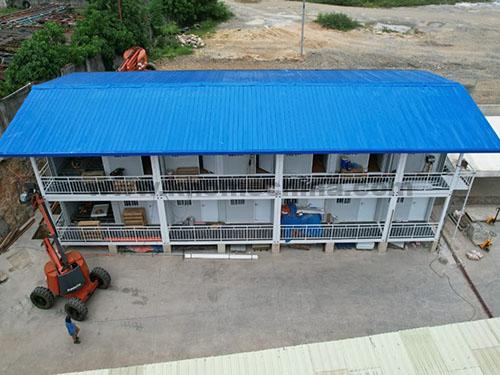

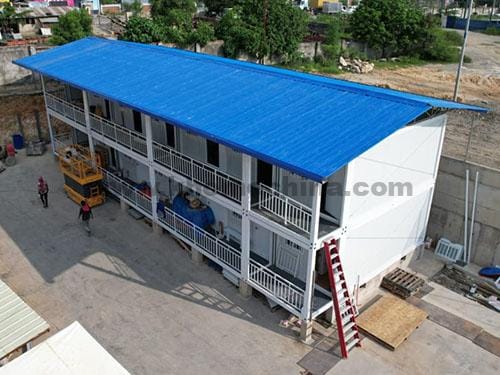

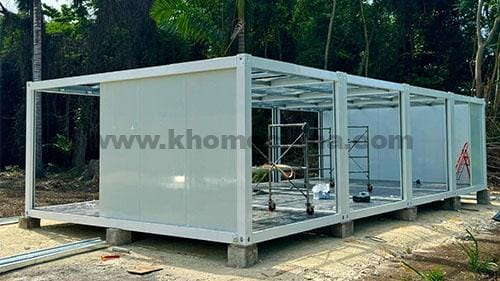

case studies – container worker dormitory in PH, set up a second sloped roof to cope with high temperatures

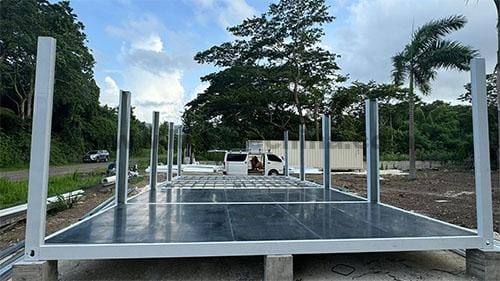

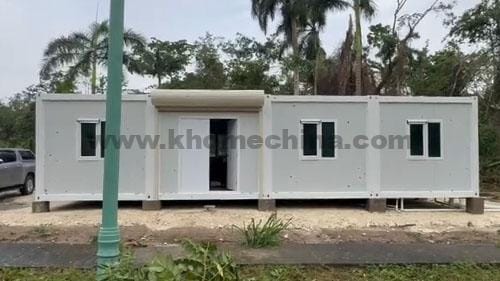

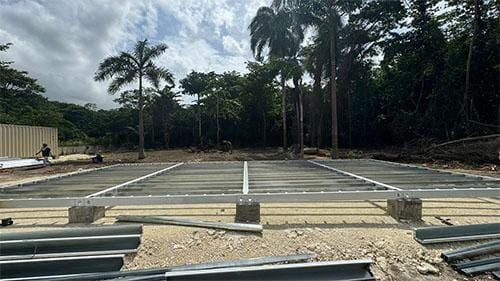

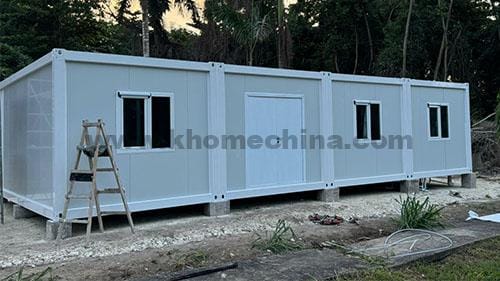

case studies – living container house in Cebu, Set bolt anchors to deal with typhoon weather
container van house price
The price of a standard empty container house ranges from 1,500– 2,500 USD. This price is factory-only (Ex-works). To calculate the total overall cost, it depends on the combined factors of the internal configuration/add-on options for all units and the sea freight charges. Below are the prices for our standard sizes, for your reference.
| container type | Floor Area | Ex-works Price（USD） | Ex-works Price（PHP） |
| 20ft empty container van price | 160sq. ft (14.4m2) | USD $1400-$2300 | PHP 86454 – 142032 |
| 20ft empty container van with 5.95 glass wall price | 160sq. ft (14.4m2) | USD $2500-$3400 | PHP 154383 – 209960 |
| 20ft empty container van with private bathroom | 160sq. ft (14.4m2) | USD $1800-$3100 | PHP 111155 – 191434 |
| 40ft empty container van price | 320sq. ft (28.8m2) | USD $2800-$4500 | PHP 172908 – 277889 |
Would you like to get the detail quote your project？
Please share the geographical environment and personnel capacity of your project, and our sales team will contact you within 24 hours.
Application of prefab container van
Living Container Van House
The planning process for a construction site housing project begins with design and includes site analysis, project conceptualization, design development, budget estimating, and construction materials. This is the part where your project vision comes to life!
All container van houses are carefully designed to provide not only safety but also efficiency, cost management, and waste reduction. The second phase of the process allows us to forecast project costs accurately.
The third phase of the process is permitting; permitting for the container van is done in-house at the factory by a third-party inspector while permitting for all site-related components is done locally.
Once building permits are obtained, we will begin manufacturing all components. Here, expandable container houses are converted into modular, detachable structures that include framing, insulation, electrical, plumbing, wall panels, and more. One of the most compelling arguments for factory construction is that all site work is pre-manufactured at the factory. You only need to install the foundation, assemble the house, and connect the utilities at the construction site.
The final stage is the site fit-out, which depends on your preferences and local regulations.
For us, it is important to understand that all markets are different across the Philippines. There are some states or municipalities that allow most homes to be built in a factory, while others require a larger percentage of the site to be built. This difference affects not only the price of the project but also the way we approach each project.
K-home is a professional container van construction supplier that offers fully customizable, turnkey solutions. As a one-stop shop, we provide design, camp construction, installation, fabrication, fieldwork, and project coordination for each project.
If you’re struggling with the camp construction or container van office plan, then our custom design services may be just the thing for you! Our design team, drafting staff, and sales will specialize in planning your project, matching needs, budget, and sustainable value.
Container Van Office
Container Van Homes
Where Can I Buy Reliable Prefab Container Vans? | K-HOME Container Van House Supplier
The key to finding a reliable container house supplier lies in “high-quality products + full-process service “. As China’s leading container house manufacturer, K-HOME adopts the “factory prefabrication + on-site assembly” model, independently controlling the entire process from material production to installation and delivery, completely eliminating the quality risks of middlemen.
Why choosing K-HOME can solve your purchasing anxiety?
Source manufacturer, reliability
- All modules are factory-built and can be pre-assembled and tested to prevent sudden problems during on-site construction.
- Anti-corrosion galvanized steel plate + fireproof rock wool sandwich panel is used to meet temporary living needs under normal conditions.
- Support customer factory acceptance and a series of after-sales responses.
Precisely match the real needs of customers
K-HOME collects high-frequency problems of Southeast Asian users and provides exclusive solutions:
| Customer Needs | K-HOME Exclusive Customized Solution |
| Safety requirements in typhoon areas | Customized anchor bolts for anchoring / Customized steel frame strength |
| High temperature and high humidity environment | Setting up the secondary roof / Polyurethane insulation sandwich panel |
| Rapid emergency deployment | Built with folding containers |
Diversified solutions and free design services
K-HOME, as a professional and high-quality container van house supplier, offers an exceptional range of customized solutions to meet your unique housing needs. With our expertise in the field, we provide a diverse selection of container van house types, including detachable container house, flat pack container houses, and folding container house options. Additionally, we provide flexibility in various customization options to enhance your experience.
At K-HOME, we understand that every customer has different needs and budgets. Therefore, we strive to provide personalized services and solutions tailored（providing design drawings, 3D renderings, etc.) to your specific requirements. Our team of experts will work closely with you to ensure that you receive a container van house that meets your expectations in terms of quality, durability, and aesthetics.
Comprehensive Certifications
We uphold the highest standards. Behind every building is a rigorous commitment to safety, quality, and sustainability, backed by dozens of internationally recognized certifications.
