Steel Structure Building Prefab Factory

Factory Building can be constructed in many forms. The most common one is steel structure building, which mainly uses steel structure as the main load-bearing structure.
The wall can be a brick-concrete structure or steel structure, mostly made of steel plates, then composed of various parts such as doors and windows.

The Industrial Metal Buildings are not only light in weight, low in consumption, and fast in construction speed, but also have strong seismic resistance and can improve the comprehensive seismic performance of the entire house. It is a structure that is currently widely used in industrial plants.

The steel structure factory building is composed of beams, columns, purlins, walls, and roofs.
Single-story steel structure factory building generally uses portal steel frames. The portal steel frames are created for drainage of long slopes in steel workshops with large spans. Under these conditions, the middle column can reduce the span of the beam, thereby reducing the cost. The middle column adopts the upper and lowers hinged swing column made of steel pipe, which takes up a small space.

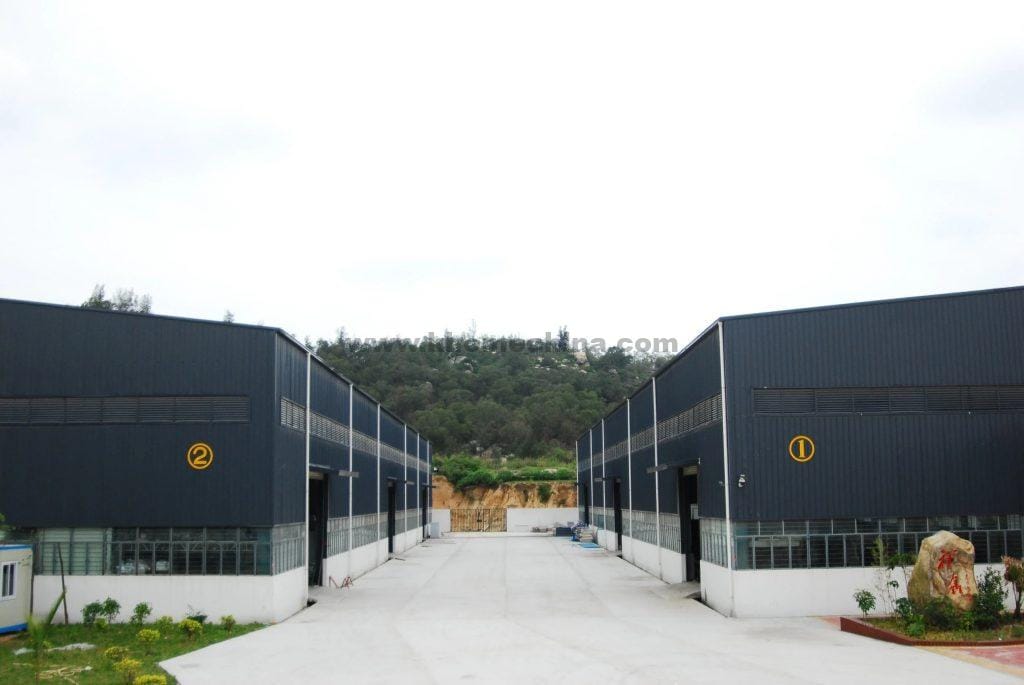

Steel Structure Building Gallery

The Construction of Steel Structure Buildings

  1. Embedded parts, (to stabilize the structure of the factory).
  2. Columns generally use H-shaped steel or C-shaped steel.
  3. For beams, generally C-shaped steel and H-shaped steel are used (the height of the middle product is determined according to the span of the beam)
  4. Purlin: C-shaped steel and Z-shaped steel are generally used.
  5. Supports and braces are usually round steel.
  6. There are two types of plates, the first is color steel plate. The second type is sandwich panel.

Why Do We Use Steel Structure building?

Compared with the traditional building structure, the steel structure factory building has fewer internal space columns, which can reduce the cover’s area and improve the use of internal space.
In addition, the prefab metal buildings are relative to the traditional building. The construction period is fast and the cost can be saved.
That’s why the steel structure factory building has become one of the most important steel structure buildings today.

Short construction period:

It is because all the steel components are processed and manufactured in the factory.
The steel components processed by the factory are well-made and high-precision, so that the assembly can be carried out quickly, the construction period is shortened, and the cost is saved.

Safer and More Service life:

The steel structure factory building is taller than the traditional building workshops. All the materials in the steel structure factory building are made of semi-finished steel. The cross-sectional area of ​​the components is small, which is convenient for installation and transportation, reduces the amount of on-site construction, and is convenient for installation. At the same time, it will not have a great impact on the surrounding environment, and it is a green and environmentally friendly building.

Larger Internal Space:

It can increase the demand for large space in the production workshop. The construction of steel structure workshops is undoubtedly very popular with enterprises. It is convenient for construction and can save costs, making the construction of steel structure workshops more and more widely used as production workshops.
