Modular Prefab Homes

Prefab home is a new concept environmentally friendly and economical light steel structure sandwich board house with light steel as the framework, sandwich panel as the enclosure material, and standard modular series for space combination. It is suitable for various construction sites, offices, migrant workers’ dormitories, or government resettlement houses, etc.

The components are connected by bolts. It can be assembled and disassembled conveniently and quickly, realizes the general standardization of temporary buildings, and establishes an environmentally friendly, energy-saving, fast, and efficient construction concept, and makes the temporary housing enter a series of development, integrated production, supporting supply, inventory, and availability. The field of stereotyped products used for many times of turnover, multi-functional rooms. The wall adopts light-weight thermal insulation rock wool thermal insulation material and galvanized steel plate, which has the functions of heat insulation, sound insulation, waterproof, and corrosion resistance. The wall is decorated with high-grade plastic pattern wallpaper, and the indoor ceiling is made of an aluminum alloy keel gypsum board. The overall appearance is novel, easy to install, and saves construction costs.

Product Details

NOSortNameSpecification
1SizeSpecificationlength-can be customized
Width-3T,4T,5T,6T,3.5T,4.5T,5.5T etc.
Height-3H,6H

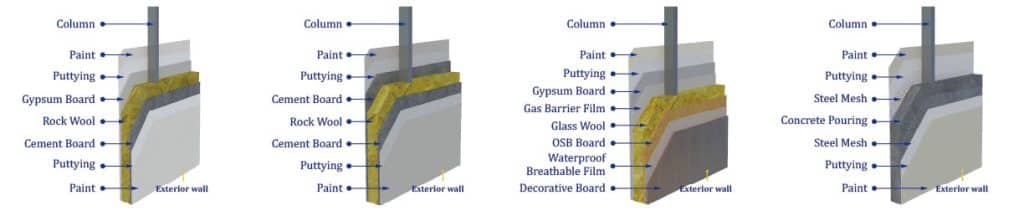

2Standard accessoriesWallEPS/Glass Wool/Rock Wool ,50/75/100mm thickness

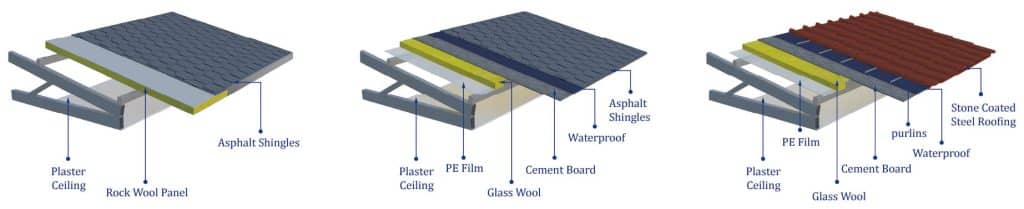

3Standard accessoriesRoofEPS/Glass Wool/Rock Wool ,50/75/100mm thickness
4Standard accessoriesDoorSandwich panel door/Steel door/Security door
5Standard accessoriesWindowPVC sliding window/aluminum alloy glass window
6Standard accessoriesPillarSquare tube 8080/100100
7Standard accessoriesRoof beamSquare tube 40*80
8Standard accessoriesRoof trussSquare tube 40*80
9Standard accessoriesPurlinSquare tube 40*80
10Optional accessoriesCeilingCalcium silicate board/ PVC ceiling
11Optional accessoriesFloorPVC flooring sheet/flooring tiles/Ploywood
12Optional accessoriesElectricityCan offer plan and construction
13Optional accessoriesFurnituresCan offer plan and construction

Standard Specification

mT * nT * uH (1T=1150mm, 1H=100mm)
No.WidthLengthHeight
13TnT3H
24TnT3H6H
34.5TnT3H6H
45TnT3H6H
55.5TnT3H6H
66TnT3H6H

Technical Parameter

NoItemParameter
AOverall weight≥50~60kg/sqm
BAnti sesmic8 grade
CWind-proof capacity8grade
DFloor loading capacity150kg/sqm
ERoof loading capacity≥60kg/sqm
FExternal wall bearing capacity≥50kg/sqm
GWalkway loading capacity≥150KG/M²
HWalkway Load≥200KG/M²
IWall Impact≥80KG/M²

  • On-site office
  • Outdoor work camp
  • Government resettlement
  • non-profit organization
  • Refugee residence

Leading of Prefab Homes Supplier In China

K-HOME is a leading of modular prefab homes supplier in china with low price. We have the best steel home kits suitable for a wide range of applications and preferably fit for Site Office, Government Resettlement Housing, and Outdoor Workers Housing. As you know light steel frame prefab home solutions have become a popular standard and are gaining industrial grounds for increased supplies on different grounds.
K-HOME has leading steel homes for preferable applications and can be customized to the requirement if needed. The houses are built on quality foundations as well as following specific industrial rules and regulations to keep standards to the line.

Follow us on Facebook, update overseas project dynamics for you every day: https://www.facebook.com/khomechina/

Affordable Prefab Homes Advantages

  • Integrated production, supporting supply
  • Light steel structure, waterproof, anti-seismic, anti-corrosion
  • Sound insulation, heat insulation, environmental protection
  • Quick installation, turnkey solution
  • Low construction cost, service life over 20 years

Related Projects


Related Articles


Frequently Asked Questions

Prefab Home is modular designed and can be customized to your needs. Every single bedroom can have a private bathroom and can be also equipped with a TV, air conditioning and other facilities, which is similar to living in the town. A fully functional temporary living quarter, not only includes an accommodation area but also including an office, meeting room, kitchen, dining hall, and other recreation areas. Our low-cost prefab home can fully achieve these designs.

K-home manufactures practical prefab homes, which are characterized by their low prices, can be set up very quickly and can be designed according to different climate zones. Our modular houses are designed to make life easier and better for you. That is why we are constantly improving our structure system. The orders of the customers go in our module houses in different directions, whether prefab home or shelter building. We work for low-income people and homeless people of eco-friendly and affordable housing. A modular prefab home that meets the desired standard is just as important as comfort and aesthetics. Our prefab modular homes are designed for high insulation and maximum energy consumption. K-home comfortable, fully secure, and durable modular homes are an affordable and environmentally friendly way to create your own affordable living space.
