Anchoring a prefabricated house to the foundation is one of the most important steps in the construction process. It protects your house from wind, earthquakes, and other lateral forces. Proper anchoring ensures the home’s structural integrity, safety, and long-term durability.
“How to do it” is a frequent topic of concern when discussing with clients. This article will provide a practical guide, explaining the professional methods and key points for securely attaching a prefabricated home to a concrete foundation.
Why Proper Anchoring is Important？
Before delving into the “how” of anchoring, it’s crucial to understand the “why” of anchoring. While structurally strong, manufactured homes are large and, if improperly anchored, can be easily toppled or overturned by strong winds or earthquakes. The main reasons for secure anchoring are:
- Structural Integrity: Anchors evenly distribute the load on the house and connect all structural components together, preventing sagging, deformation, and cracking over time.
- Wind Resistance: Strong winds create powerful uplift forces that can actually try to pry the house off its foundation. They also exert horizontal forces that can cause the structure to slide.
- Earthquake Resistance: In earthquake-prone areas, the ground can shift dramatically. Anchors allow the house to move with its foundation, preventing catastrophic separation or collapse.
What preparations should be made before anchoring?
You can’t anchor a prefabricated house on a weak foundation. Therefore, prepare your foundation plan，anchoring materials, and tools before anchoring.
Foundation Plan
There are many foundation plans available for prefabricated houses, depending on the geological conditions, house type and other factors. Common foundation treatment methods include：
- Concrete slab: The most common foundation. Popular for its solid, uniform surface.
- Dot pillars foundation：Dot pillars foundations are a group of concrete support structures that are independent of the substructure. They are not integral structures but independent support points.
- Strip foundation：A strip foundation is a type of shallow foundation that looks like a continuous strip of concrete placed directly under the walls of a prefabricated building.

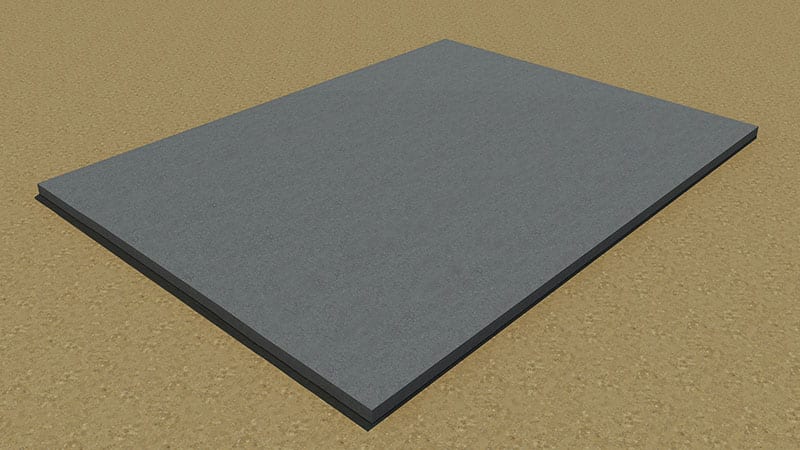

Concrete slab -

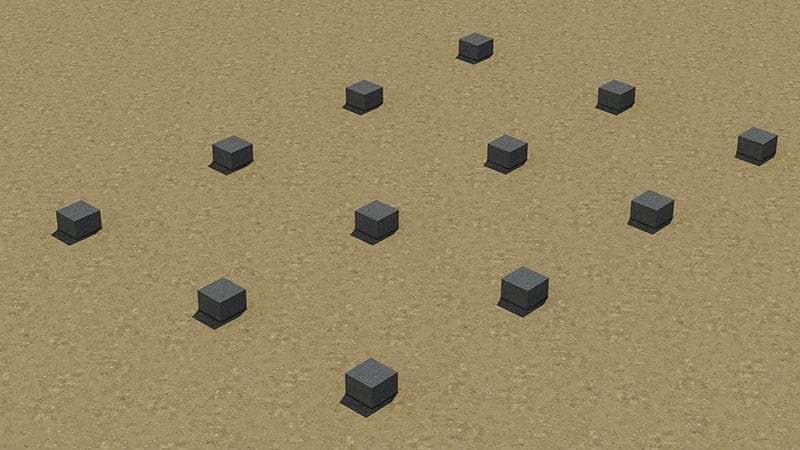

Dot Pillar foundation -

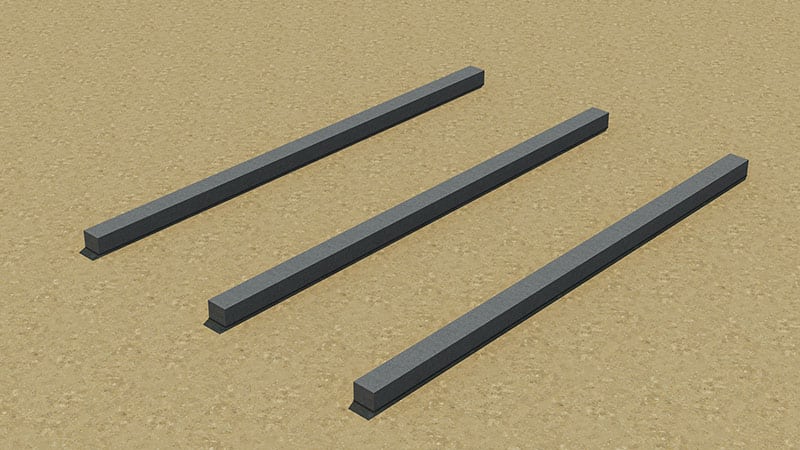

Strip Foundation
Common Anchoring Methods Explained
- Anchor bolts (J-bolts): These are the most common fasteners. They are cast directly into the wet concrete of the foundation. J-bolts offer excellent pullout resistance. Their dimensions (diameter and length/embedding depth) must be specified by your structural engineer or local building codes.
- Embedded parts: Components that are pre-installed (embedded) into the concrete foundation. The main structural columns or beams of the prefabricated house are then placed on these panels and securely fastened with high-strength nuts. This type of anchoring allows for buildings with higher loads. This provides a superior, more distributed load-bearing connection for heavy-duty applications.
- Expansion bolts: Post-installed option where a bolt is inserted into a hole and a wedge at the base expands as the nut is tightened, locking it into the concrete.
- Anchor straps and tie-downs: For added security, especially in areas with strong winds, steel straps can be used to further secure the wall frame and roof structure to the foundation.
-

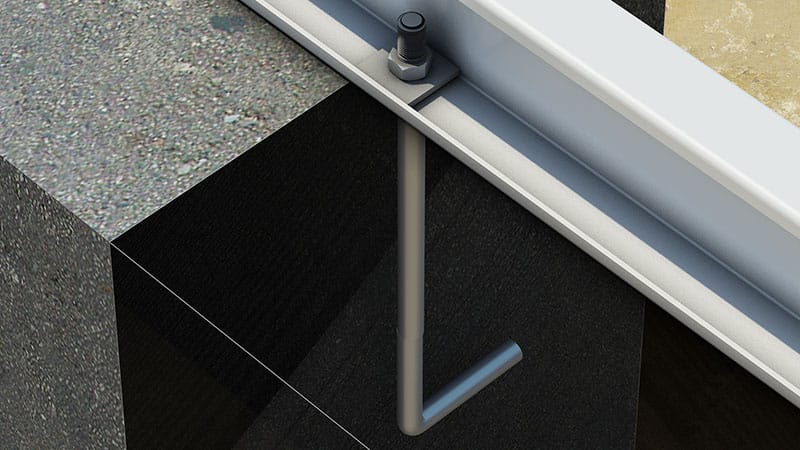

Anchor bolts -

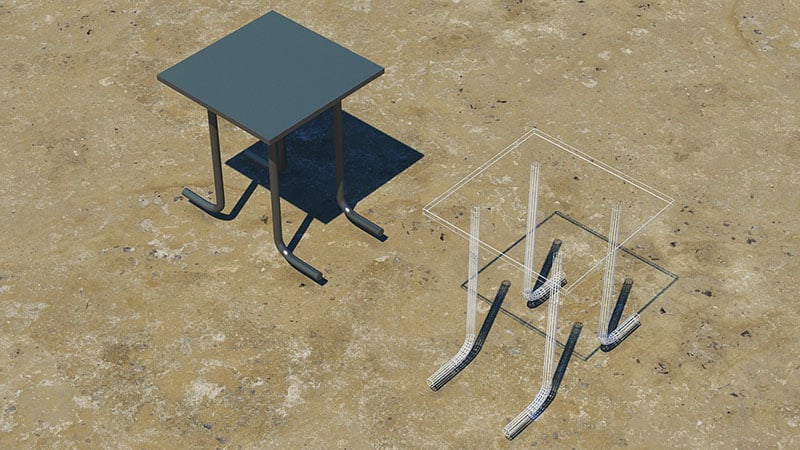

Embedded parts -

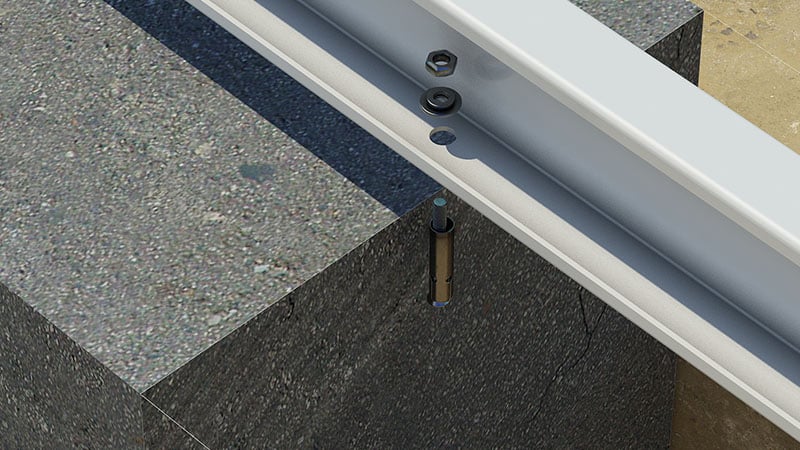

Expansion bolts
Which method is best? The specific choice depends on the structural design and load requirements. In strong wind areas, embedded slabs are preferred. If you are not sure which method to use, please contact us directly and we will provide you with professional advice.
tools
Cordless drill, impact drill (for drilling, if necessary), and appropriate personal protective equipment.
A Guide to Anchoring Your Prefabricated House
At K-HOME, we understand that adapting to local conditions is the core of our anchoring solutions. We primarily offer prefabricated container houses and prefabricated panel houses(k type & T type). These two products utilize different anchoring methods due to their differing core structural mechanics. Our professional services allow us to tailor an anchoring solution that best suits your home type and site conditions.
Anchoring Prefabricated container House
For prefabricated container houses, we use standardized high-strength components for core fixing. This is the anchoring method that best matches the original structural design and can efficiently transfer wind loads and earthquake forces to the foundation through the strongest nodes. The structure of the container house determines that it has a variety of anchoring methods. The following are some of the methods we commonly use.

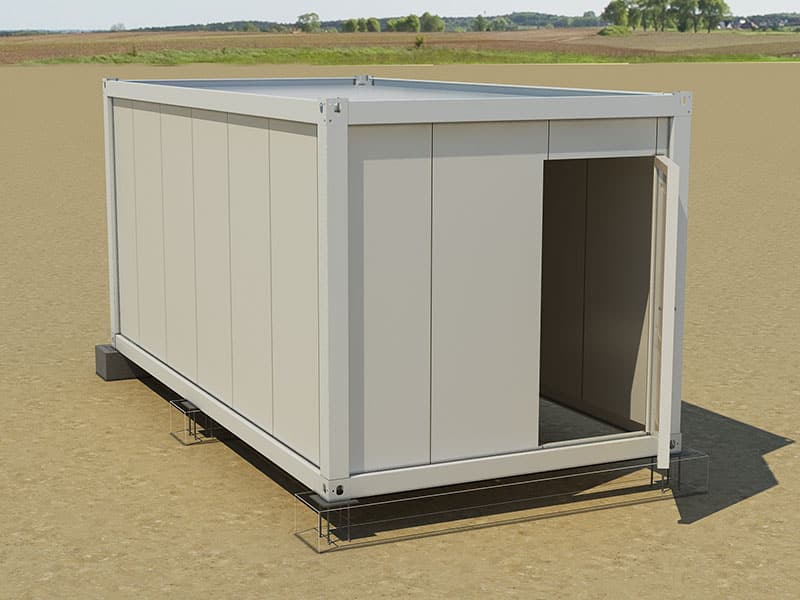

1.Dot Pillars + Embedded Parts

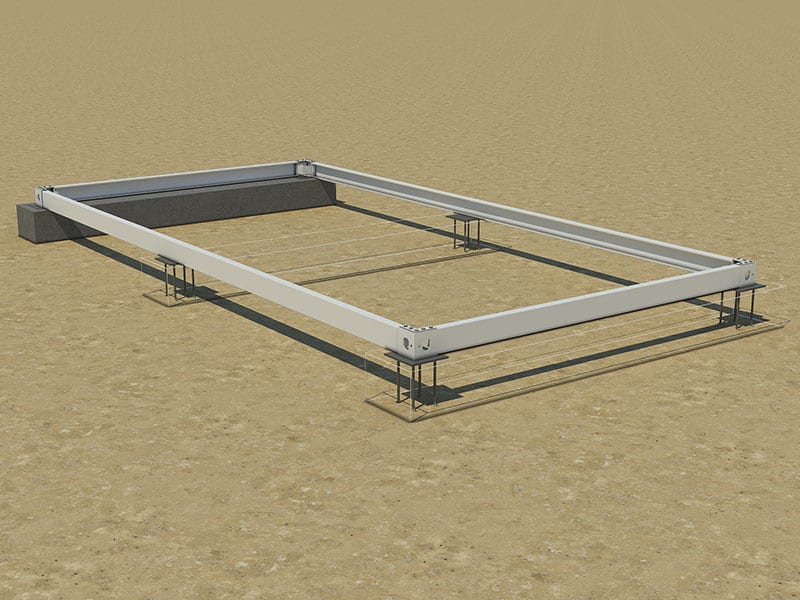

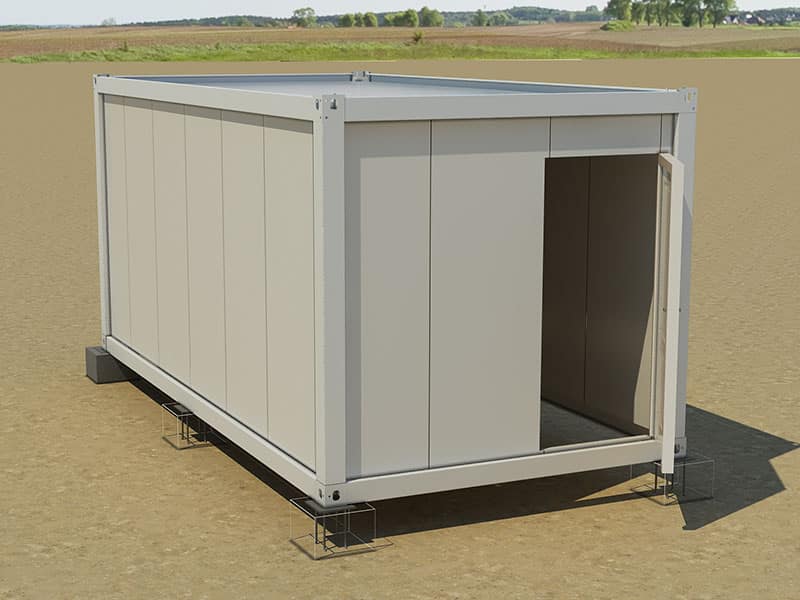

2.Strip + Embedded Parts

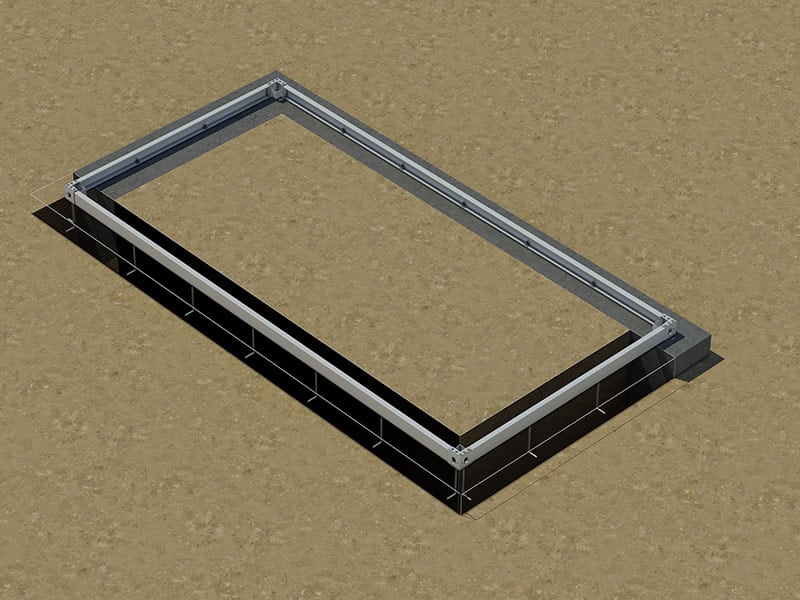

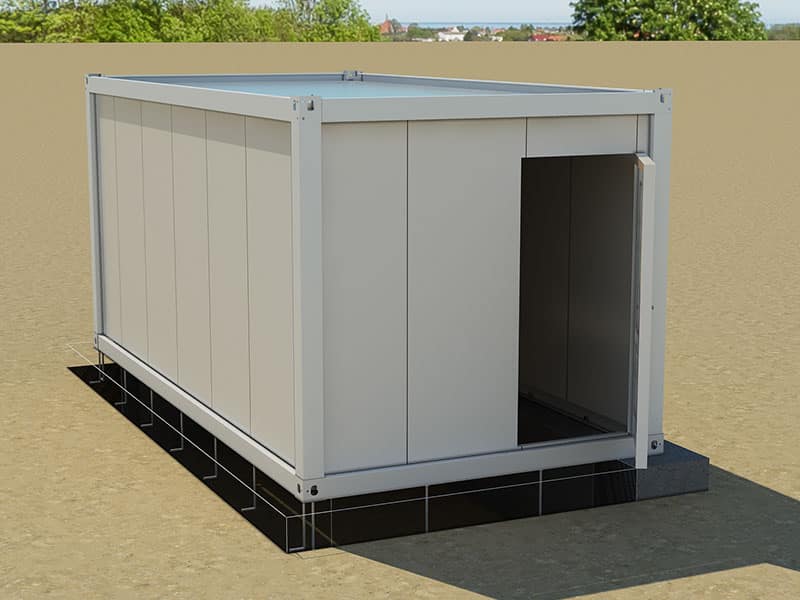

3.Concrete slab + Anchor Bolts

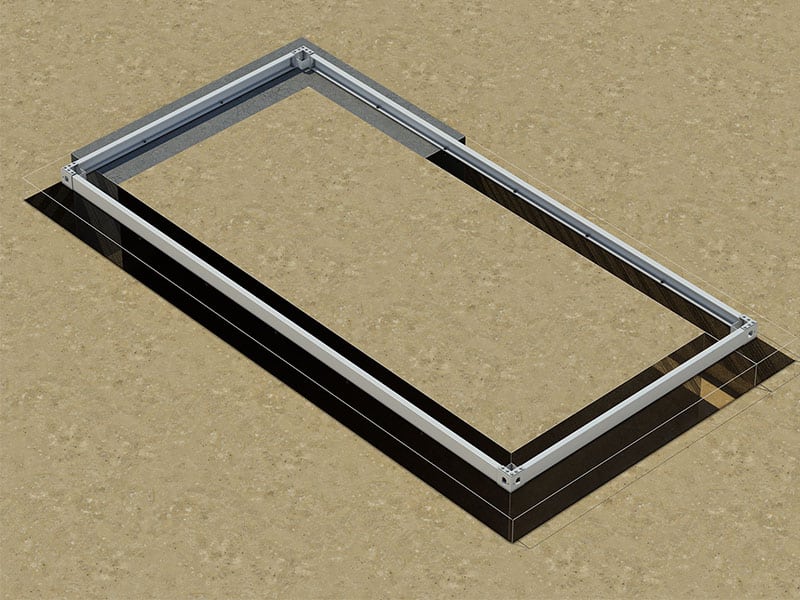

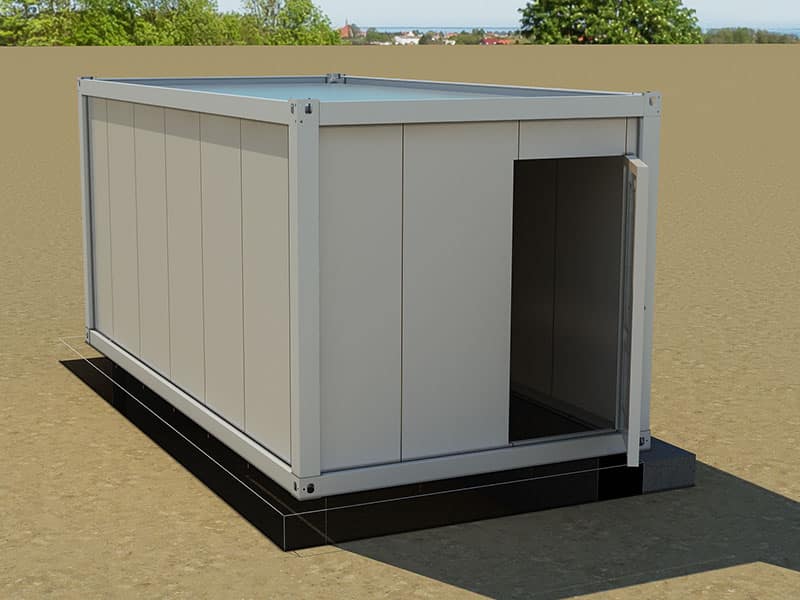

4.Concrete slab + Expansion Screws

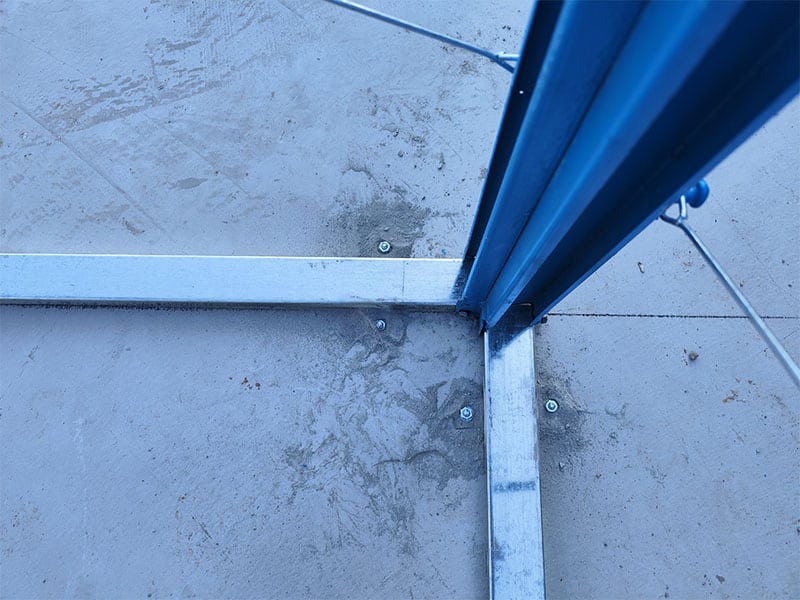

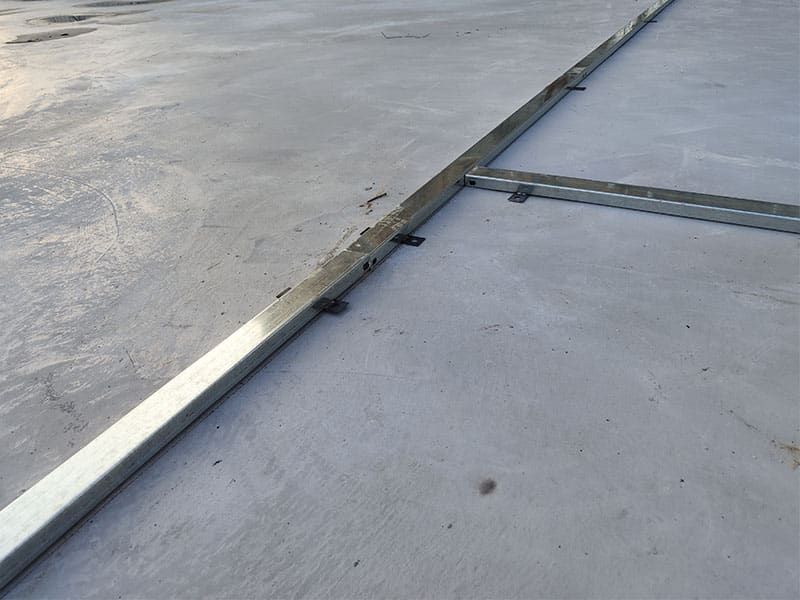

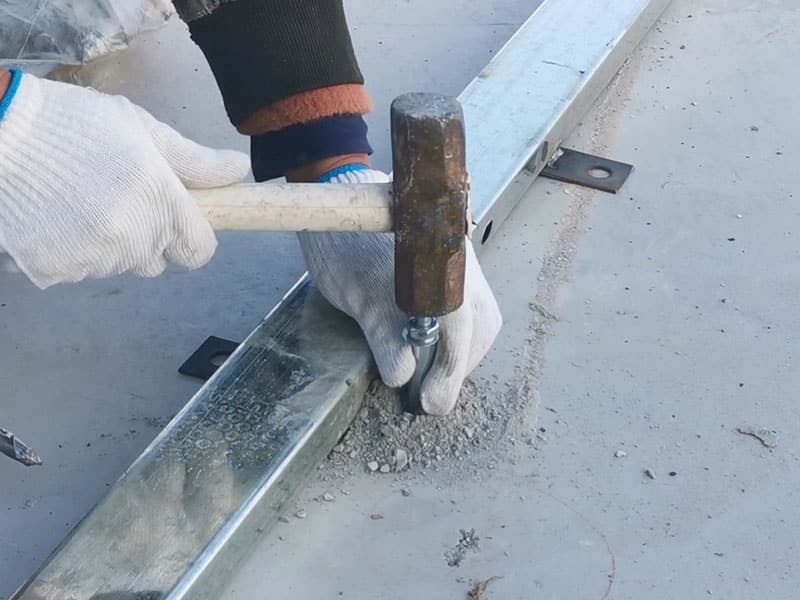

Anchoring Prefabricated panel House

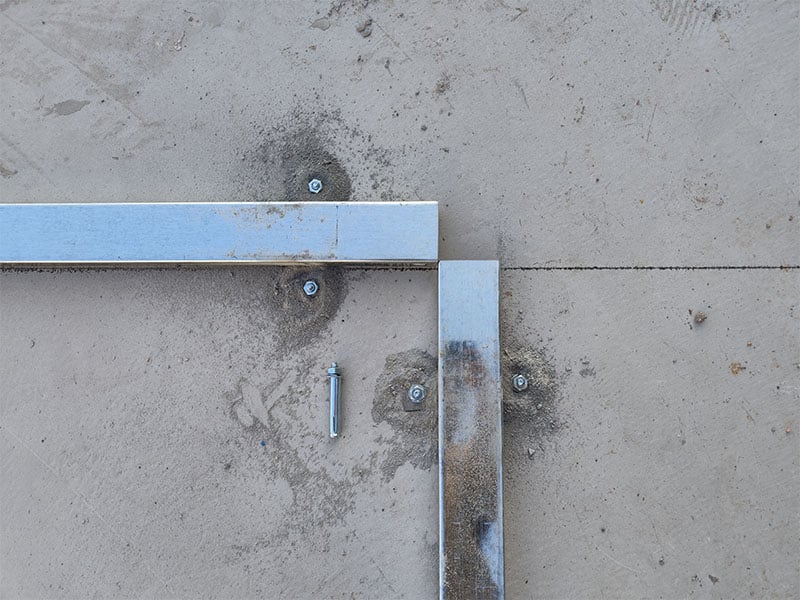

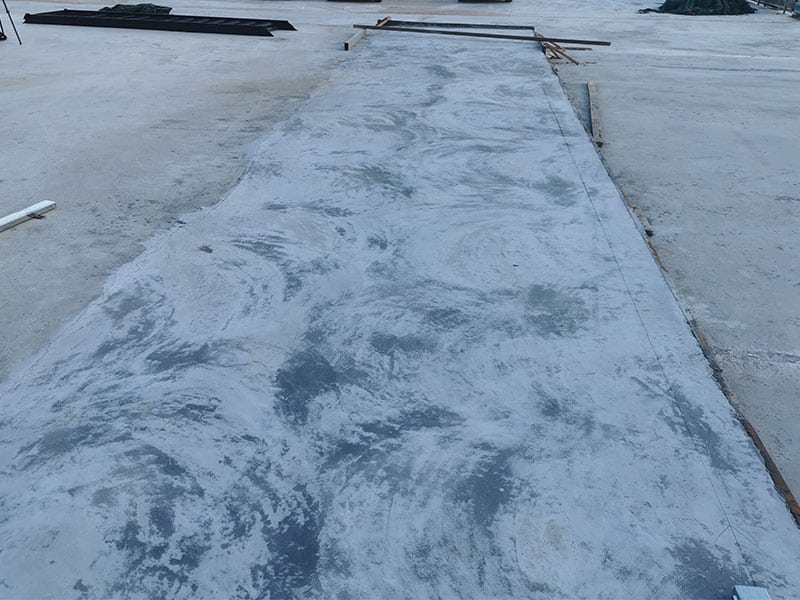

Prefabricated houses, based on their design, typically use expansion bolts and a concrete slab foundation. This structure employs an anchoring scheme distributed along the base wall frame. By placing anchor points at the required spacing for the building structure, we tightly connect the entire substructure to the foundation, forming a holistic lateral force-resistance system and ensuring structural uniformity and stability.
Partner with k-hOME to get professional solutions
Understanding how to anchor a prefabricated house to its foundation is crucial to ensuring your home is stable and secure. It’s a precise process that requires the correct materials, meticulous installation, and strict adherence to engineering principles and local codes. Understanding the importance of this connection, properly preparing the foundation and anchoring materials, and carefully performing the anchoring are crucial.
Ready to ensure your project rests on a solid foundation? Be sure to work with an experienced, professional prefabricated house supplier who understands the critical importance of structural connections and can provide you with expert guidance.
