modular Offshore living quarters in Congo
For those who work on drilling rigs and other offshore platforms, the offshore living quarters can provide a comfortable and useful living area. KHOME can customize the modular container living units as sleeping quarters, restrooms, office spaces, and equip all necessary facilities to satisfy your daily needs.
The main structure of living units is prefabricated in our factory. Complex components such as bathroom plumbing can also be pre-assembled indoors, moving difficult on-site work forward in the process. Before delivery, each unit is fully packaged as a complete system, making transportation to offshore sites convenient and final installation quick and efficient.
At KHOME, we fully understand your needs and provide customized, professional solutions — not one-size-fits-all sales talk.

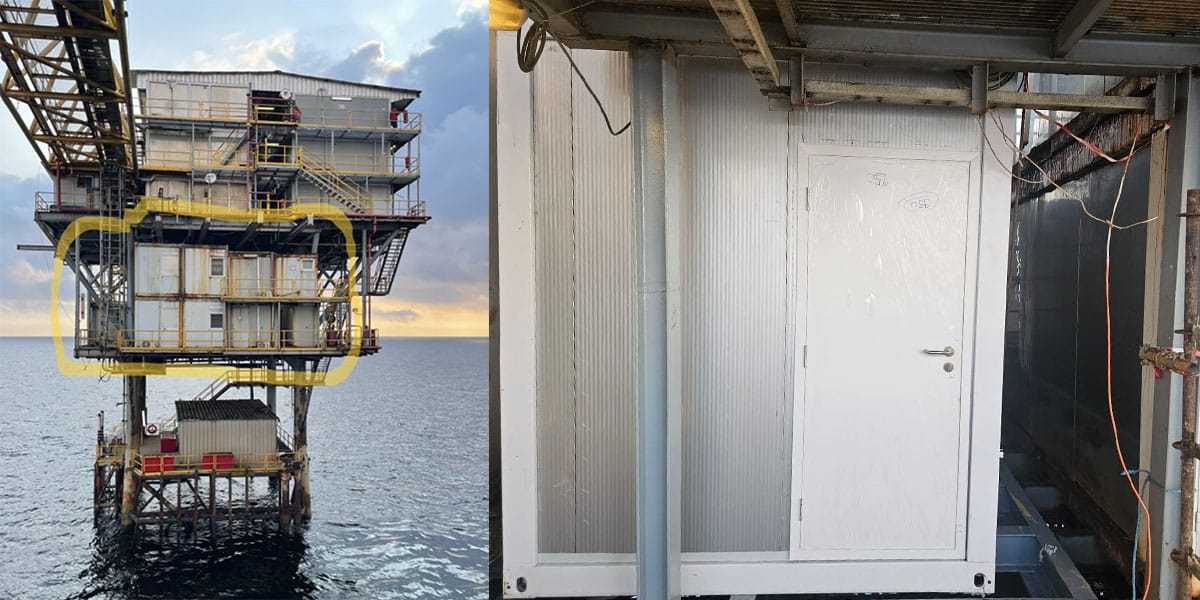

Offshore platform living quarters container in Congo | Project Overview
| PROJECT INFORMATION | PROJECT PERFORMANCE |
| Client: An end customer in the Republic of Congo | Key Outcomes: Overcame offshore platform limitations to build a safe, comfortable, and fully functional living quarter for workers. |
| Project Scope: • Modular container units for offshore platforms, including accommodation, toilets, and shower rooms. • Provided end-to-end services covering professional space design, customized anti-corrosion materials, unit-based packaging, and on-site installation guidance. | Key Achievements: • Successfully pre-installed complex systems (e.g., factory-fitted drainage) and packed materials by unit layout to prevent on-site logistics chaos. • Dispatched professional technicians to the site, overcoming harsh construction conditions to efficiently complete the entire installation in just 20 days. |
| Core Challenges： • Limited Space: Narrow deck space makes complex layout planning difficult. • Harsh Environments: Severe marine corrosion and climate weathering, demanding strict safety standards for fire and moisture resistance. • Construction Difficulties: Poor on-site conditions leading to high risks of schedule delays and budget overruns. • Poor Living Experience: Basic traditional facilities and high noise levels affecting workers’ conditions. | Quality & Compliance： • Ultimate Anti-Corrosion: Utilized custom high-corrosion-resistant materials and thickened rust-proof steel frames to significantly extend service life. • Safety Compliance: Applied high-density rock wool and PU foam edge sealing for superior fire resistance, moisture proofing, thermal insulation, and soundproofing. • Low Maintenance: Provided durable materials matching the harsh marine environment, along with practical long-term maintenance guidelines. |
| Quantity: 16 Sets | Progress and Customer Feedback: • Installation fully completed within 20 days; • Thoroughly resolved the client’s offshore living pain points, resulting in highly improved living experiences and 100% customer satisfaction. |
How Modular Design and Corrosion Resistance Solved Offshore Accommodation Challenges: A Full Case Study
Ⅰ. Fast Understanding of Client’s Special Needs | project Challenges
From our early discussions with clients, we identified several persistent challenges that often slow down offshore living quarter projects:
Deck space is extremely valuable, and usable area is tight. Planning all essential areas — including accommodation, dining, offices, medical facilities, and storage — while maintaining safety and comfort is a major challenge.
- Corrosion: With all that sea corrosion and constant weather exposure, people always need something that can handle strong winds, hold up in an earthquake, and keep the temperature comfortable.
- Safety standards: People also need to meet with strict safety standards. Fire protection, moisture control, and airtightness all need to be highly reliable to ensure overall platform safety.
The offshore platforms usually are far aways from land and not very On-site work is inefficient and high-risk, with complicated logistics for material transportation.
Excessive noise, basic ventilation, limited fresh water supply, and unstable hot water supply can easily cause fatigue during long-term stays and reduce work efficiency.
Ⅱ. Targeted professional solutions
Facing the challenges our client had, our technical team looked into the options. After making sure the cost was under control, we came up with workable solutions:

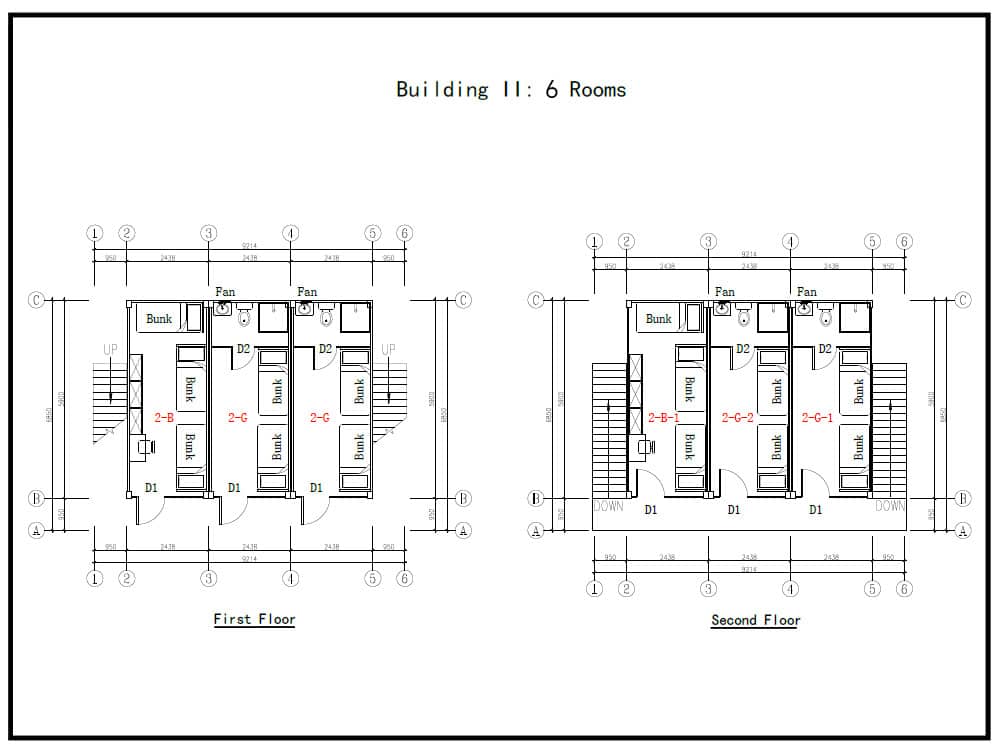

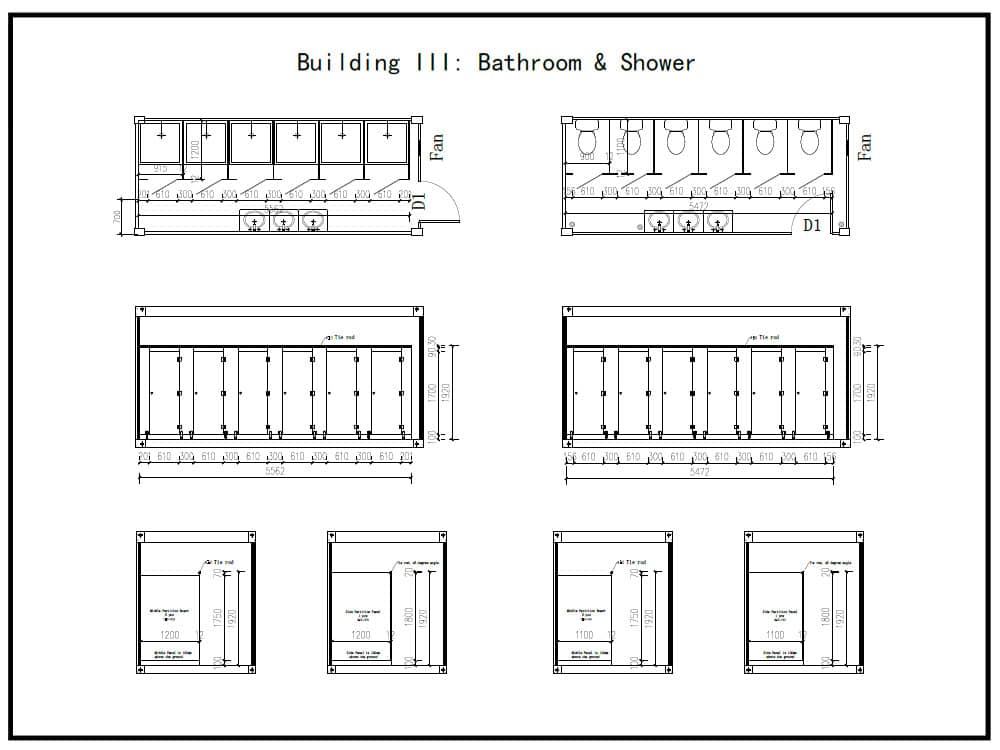

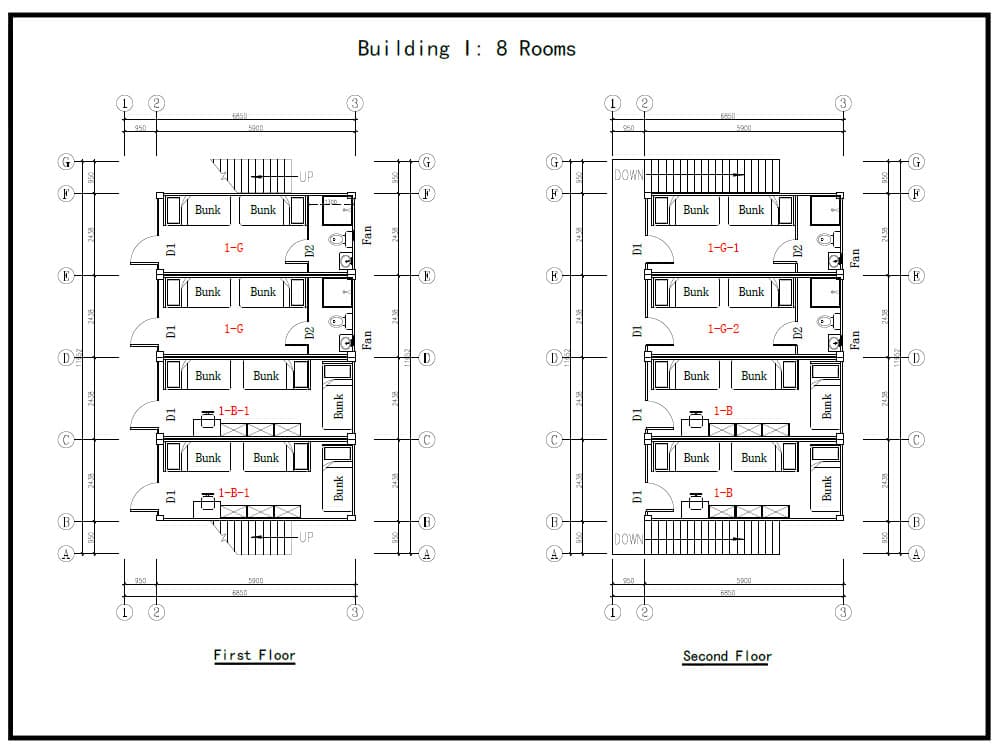

- Based on the client’s initial sketches, we helped adjust the interior layout. We considered structure strength, ease of use, and future maintenance. We also suggested our client to choose pre-installing the bathroom drainage system before the units leave the factory.

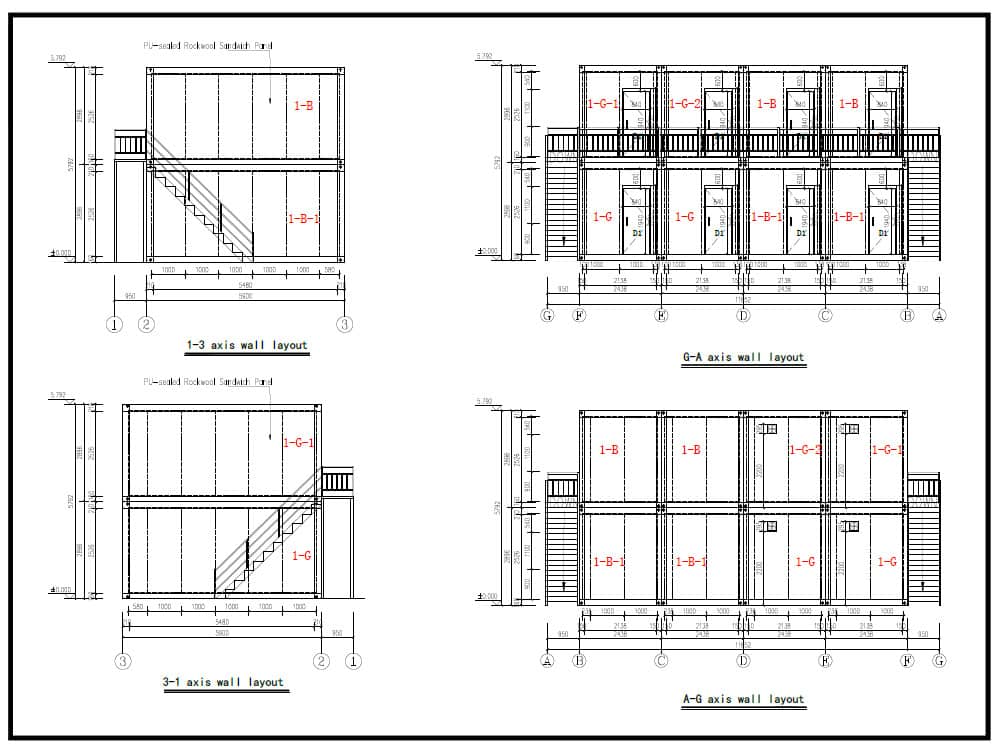

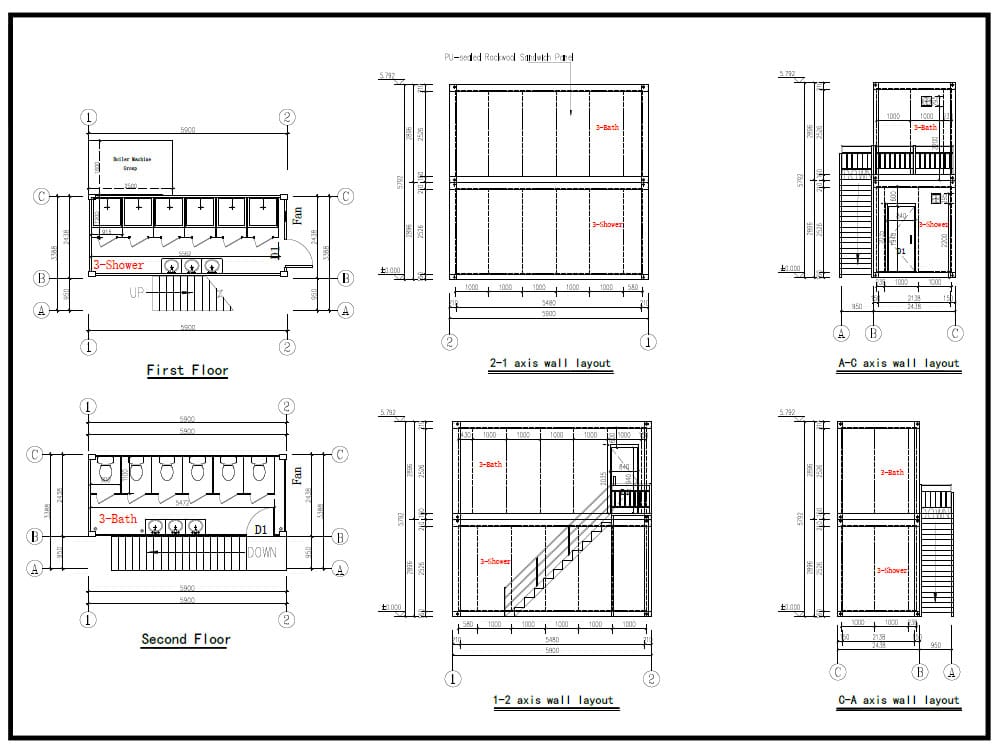

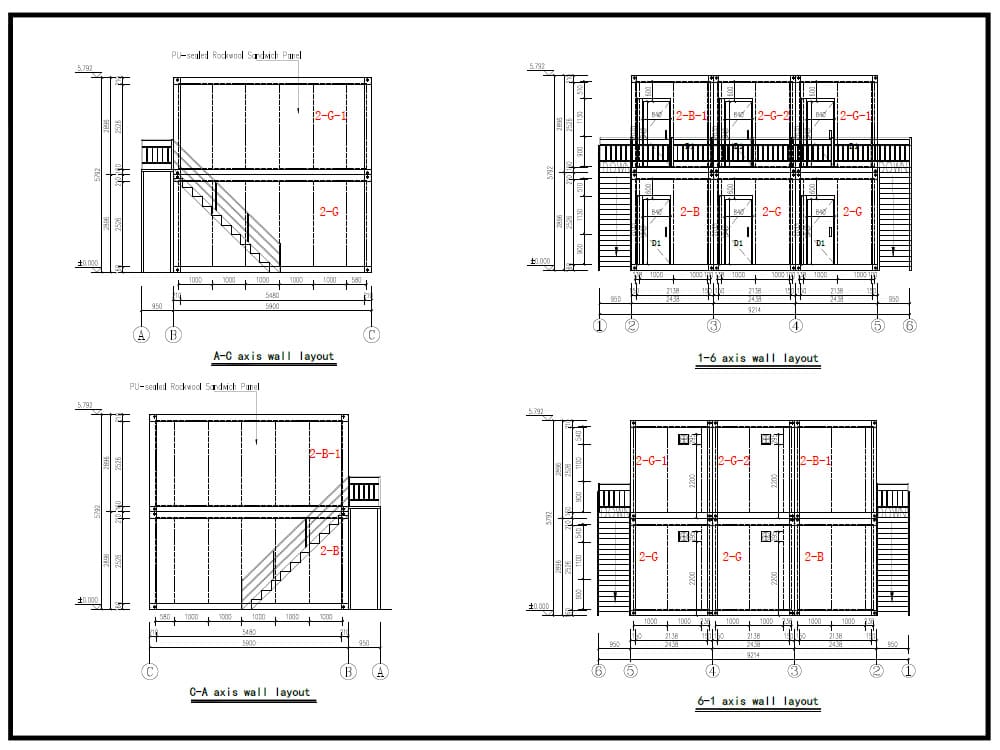

- For the limited space on an offshore platform, we custom-designed a modular housing layout with stackable units, plus custom stairs and walkways. This makes the best use of space and fits how people actually move around for work.

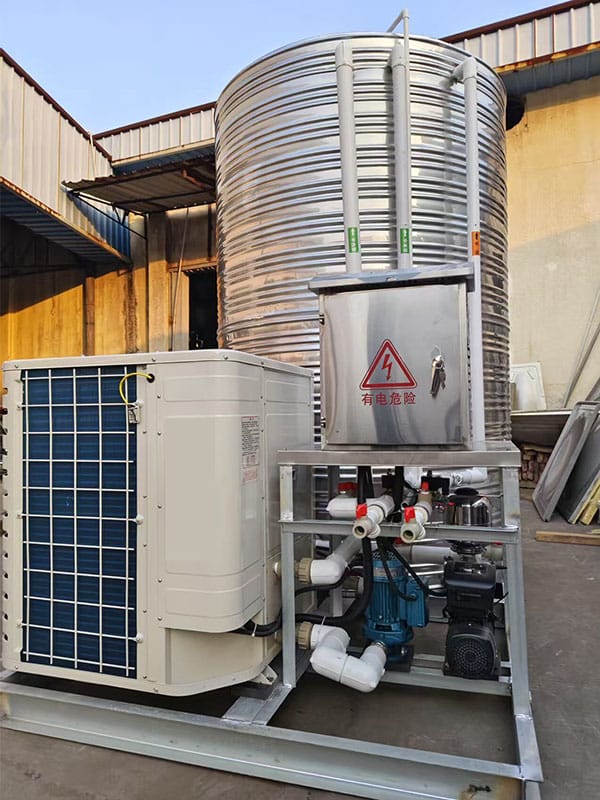

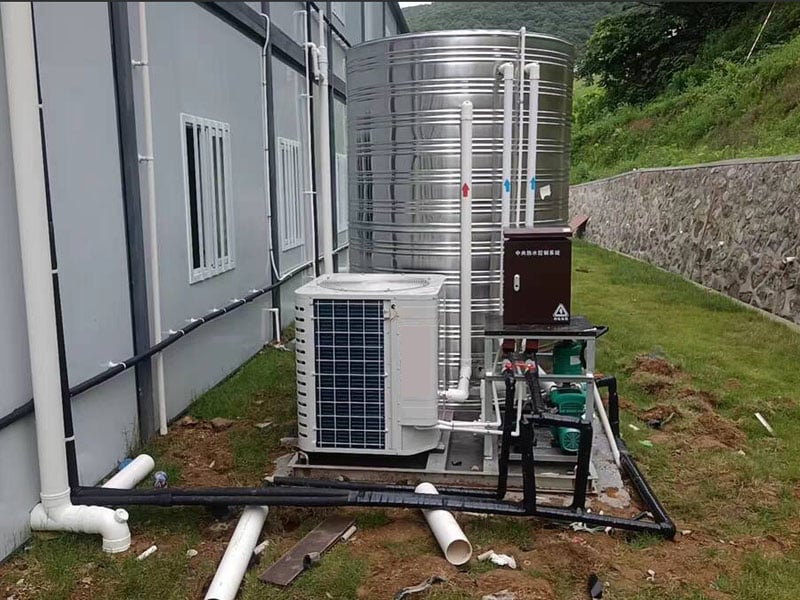

- For the water supply challenge — thanks to our strong supply chain — we provided a top system with materials suited for offshore conditions. It gives enough water and good pressure, while also reducing how often the client needs to do maintenance.
- Standard sandwich panels with steel sheets don’t last long in the highly corrosive sea air. According to our client’s budget, we recommended a custom, more corrosion-resistant material. This lowers future maintenance costs.
- For steel frames that tend to rust, we used thicker materials to extend their service life.
- Given the special offshore environment, we suggested insulation that’s both fire-resistant and moisture-resistant. High-density rock wool provides heat and sound insulation. PU foam is used for edging, offering support and sealing.
For different projects, we pick materials based on actual use and long-term needs. We also give practical advice for future maintenance and repairs.
- We moved complex jobs forward in the design phase — like the bathroom drainage system. This reduces on-site work time and the skill level needed from local installers.

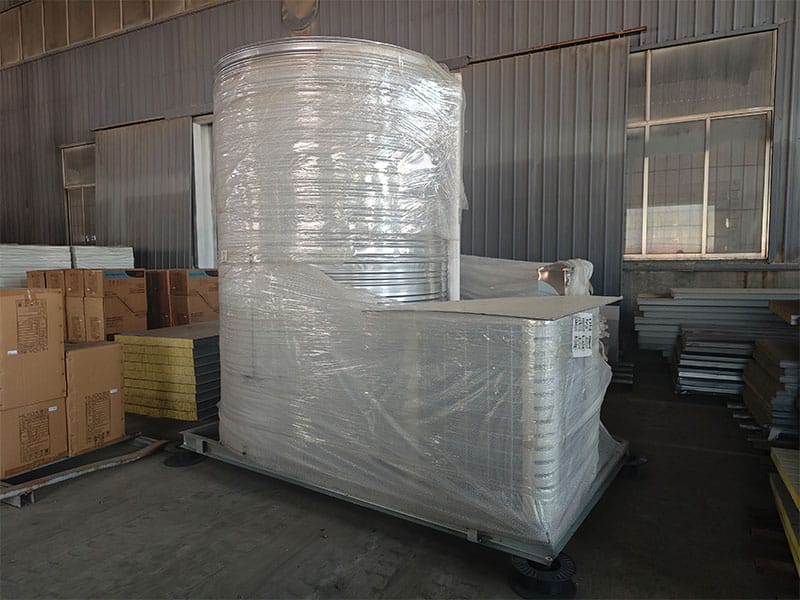

- Before packing, we sort materials by unit type and pack them into separate kits. Each kit contains everything needed to install one complete modular container. This avoids delays caused by messy material handling in tight spaces.

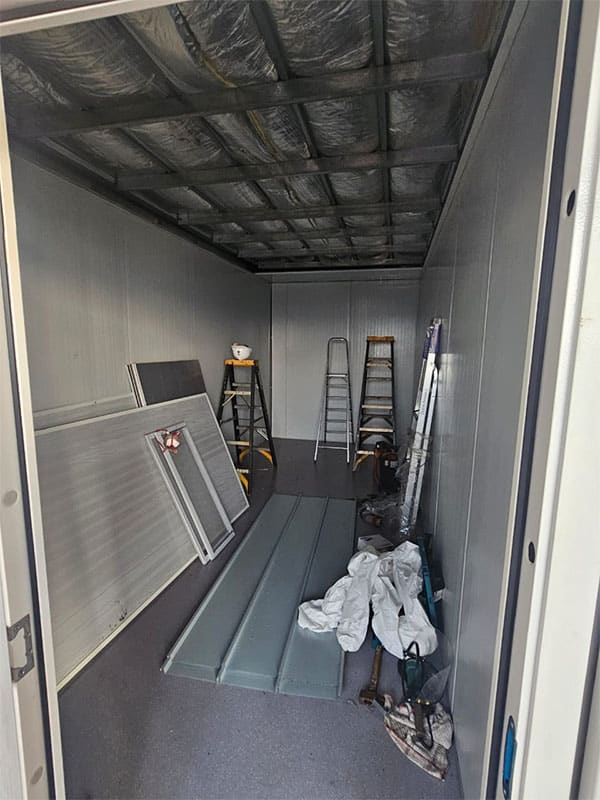

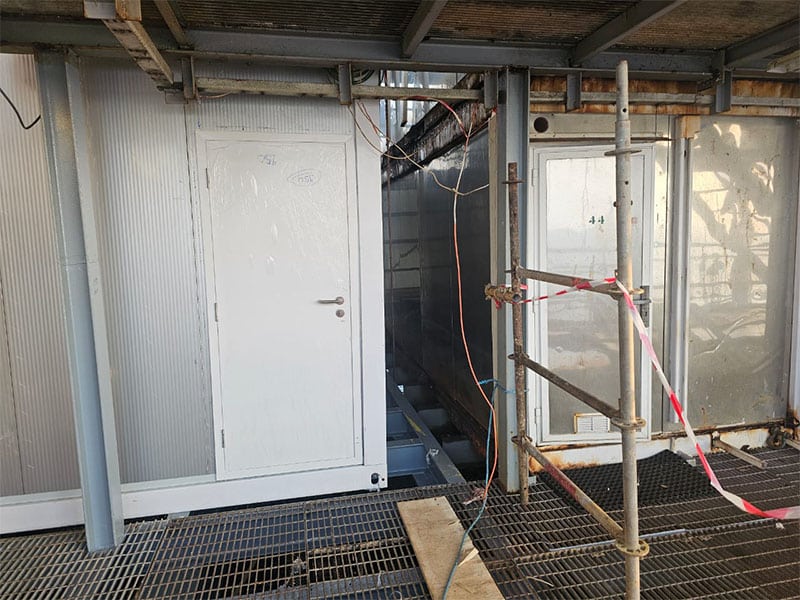

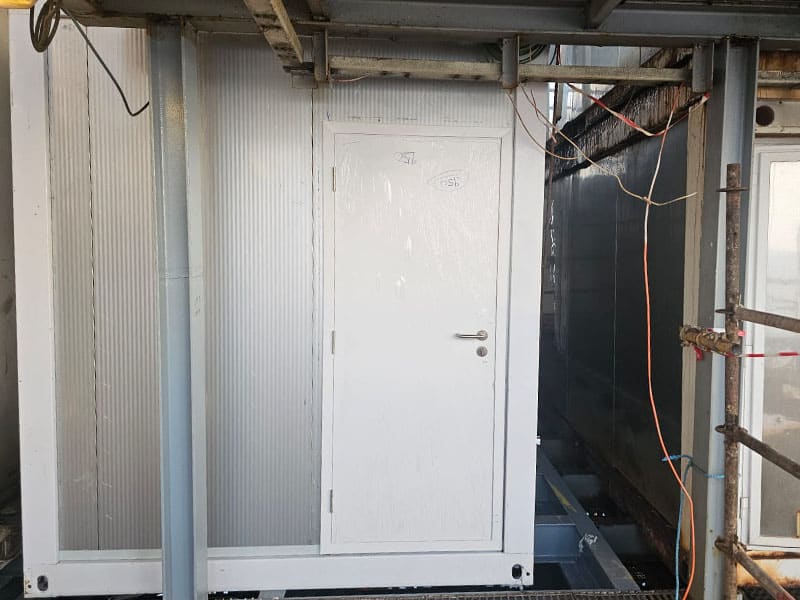

- During installation, we sent our own technical experts to help on site. That greatly improved efficiency. Even though the installation team faced many difficulties, they still completed the entire project within 20 days.
Customization options for offshore temporary living quarters
Every project is different because many factors come into play. We have solid solutions to support you, but we never rigidly apply a template to your project. We know how important each project is to the people who actually use it.
In a high‑humidity, highly corrosive environment, the service life of our standard configuration may drop significantly. But if you only need it for a very short period of temporary use, safety is still not an issue.
If you plan to use it for 5 to 10 years or even longer, here are some customized upgrades you can consider, depending on your budget:
1. Steel frame
- Base material thickness can be upgraded from 2.2mm to 3.0mm or 4.0mm, etc.
- If you need more than 50 units, have a sufficient budget, and the environment is very harsh, you can upgrade the steel frame coating to a fluorocarbon high‑temperature spray coating process.
- For other regular needs, we suggest checking rusty areas every 1–2 years, promptly removing rust, and touching them up with anti‑corrosion paint. This is the most cost‑effective option.
2. Wall panel options
- Galvalume, aluminum‑magnesium‑manganese, or stainless steel as the base material.
- Fluorocarbon coating lasts longer than ordinary PE coating. Steel coil thickness can also be chosen from 0.5mm to 0.8mm.
- All of these are better choices in high‑humidity, highly corrosive environments. Depending on your project size and requirements, please consult our sales team in detail so they can match you with a more suitable combination.
- Rock wool sandwich panels are still the best value for money, and they offer the best fire protection, but their water resistance is limited. If your budget is tight or you are using it for a short time and don’t want unnecessary costs, you can consider rock wool as the core material, or choose water‑repellent rock wool – it costs a little more but has higher density and much better water resistance.
- PU‑sealed rock wool sandwich panels, thanks to their special edge design, provide fire protection, sound insulation, wind protection, and better thermal insulation. The price is about 1.5 to 2 times that of standard rock wool panels.
- Flame-retardant EPS sandwich panels, because of their improved foam material, can achieve a longer service life in extremely humid environments while still offering some flame resistance, and they are cost‑effective. But if you have higher requirements for sealing and thermal insulation and a sufficient budget, consider the upgrade options below.
- PU/PIR sandwich panels have a seamless edge design to enhance sealing, and their material has the highest thermal resistance. They can be used for your cold storage or areas with very high insulation requirements. However, their fire performance is average. Unless the ambient temperature is extremely extreme, for safety first, we generally do not recommend using them in living areas.
