container hall
Temporary reception, exhibition, and display space for the competition and commercial.
Temporary container halls are spaces constructed using modular structures. They are typically used for grandstands, exhibitions, receptions, offices, and other purposes.
Compared to traditional buildings, container halls can shorten construction time and save costs. They also offer great flexibility and creative design possibilities.
20ft container hall unit in K-HOME | standard & customizable
standard size
The standard unit dimensions are 5950 x 3000 x 2800 mm, around 20 feet.
Multi-Unit Combination: Supports horizontal connection of two or more units to create a spacious area. Can be stacked in 2-3 layers as needed.
Frame & structure
The main frame is constructed from high-galvanized painted steel. The purlins are made of high-galvanized square tubing. The bottom frame consists of 4+10+30 galvanized square tubing of various sizes. Compared to other suppliers, our frame is more durable.
wall

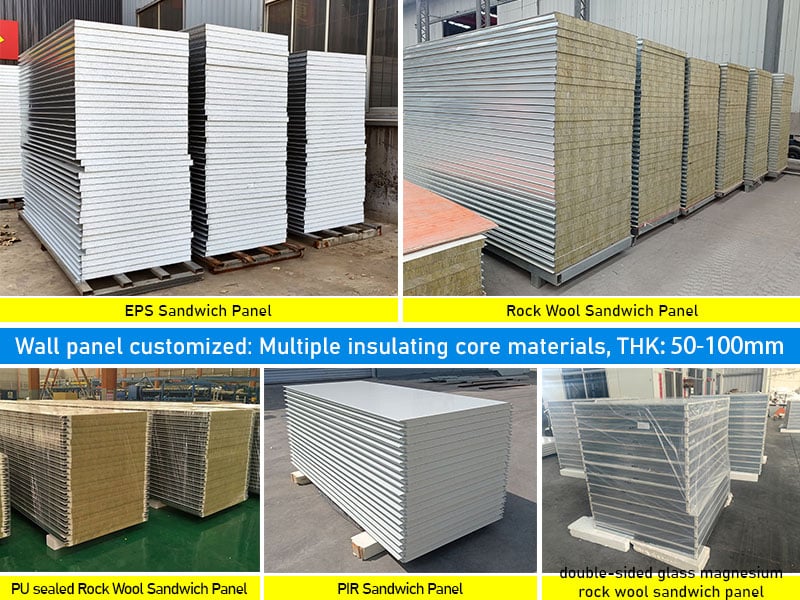

Sandwich panels, standard material is rock wool, thickness 50mm. Custom thickness up to 100mm. Insulation materials can be rock wool, polyurethane, polystyrene foam, or PIR.
roof
Ceiling + 50mm glass wool + roof sheet, Sealed roof with gutters on all four sides, allowing rainwater to drain smoothly to the ground through downpipes, preventing water accumulation.
flooring
MGO board + PVC floor leather or cement board + Patterned aluminum sheet. The latter option is suitable for areas of the bathroom that are prone to dampness. Vinyl flooring can be upgraded to stone-plastic flooring.
Door & window
The standard door is a steel door (steel railings and security gates are optional). The standard window is a PVC window, which can be upgraded to aluminum alloy windows or thermally broken aluminum alloy windows.
customizable

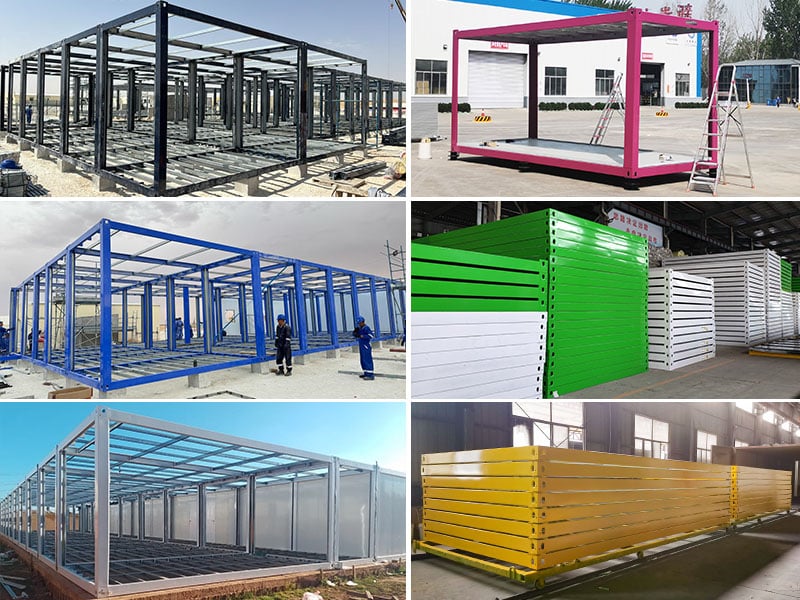

KHOME container units offers a full range of customization supported: dimensions, steel frame specifications, RAL color chart for steel frame color, 50-100mm thick insulation core material; furniture; appliances.
Foundation
Select a suitable foundation scheme based on local geological conditions. Concrete blocks or beams are typically used.
Standard Container Unit Structure Diagram
prefab detachable containers steel structure diagram
Multiple Customizable Options
What are the modular container halls used for

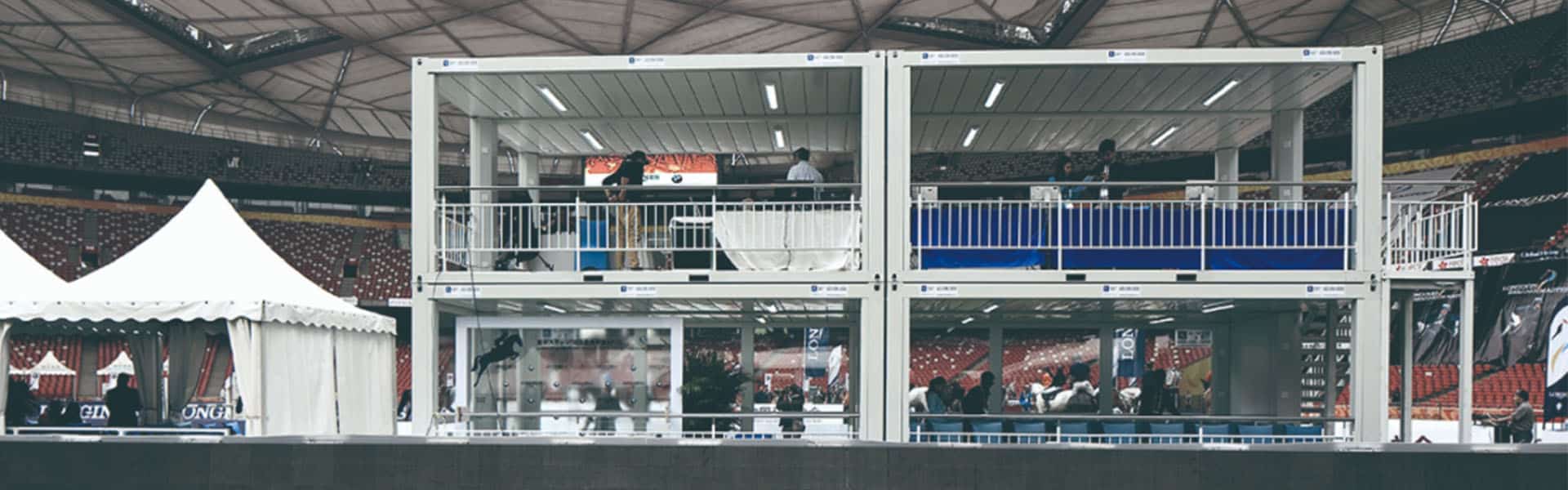

Container grandstand for ball games or other competitions
Container exhibition halls are highly flexible. They can be freely combined and reconfigured based on event needs. This makes them ideal for different activity scales and seating types.
These modular structures are easy to transport. They are also simple to install. As a result, they work well in a wide variety of venues and environments.
Container exhibition halls for Automobile Exhibition & Car Rental Services
Container exhibition halls are an innovative form of exhibition space. They can be constructed as flexible and adaptable display spaces, offering a fresh experience for all kinds of exhibition events.
container showroom for samples in the factory
For factories that need to display different types of samples, container modules offer a flexible temporary display space. You can divide them into separate areas to showcase different product categories. You can also add a customer reception zone within the same space. This temporary setup provides a versatile space solution for client visits.
What do I Need to Prepare to Build a Container Hall?
Clearly define the requirements and purposes
For example, what are you planning to do with this container hall? Then it is necessary to determine the area and capacity of the hall to plan the size of the hall. When setting a budget range and understanding the funding requirements of the project, the costs of container procurement, transportation, installation, renovation, and decoration need to be taken into account.
Design
According to the requirements, we will create CAD layout design drawings for you, including internal space arrangements, etc.
Material selection
Select suitable configurations and materials based on budget and requirements, such as wall panels, roofs, doors and windows, decorations, etc.
Land selection and approval
Select a suitable site to ensure that the area is suitable for container construction, with sufficient flat ground and infrastructure. And according to local building regulations, apply for relevant construction permits to ensure that the container hall complies with all building standards, fire safety, environmental protection and other regulations.
Foundation and infrastructure construction
The ground of container buildings needs to be flat and stable, usually requiring pouring concrete foundations or laying solid gravel foundations to support the weight of the containers.
Installation and decoration
Assemble the container according to the drawings we provide, and then connect the water and electricity to put it into use!
Why choose us
Committed to Creative Problem Solving
We tailor each modular building to your needs with the most professional, efficient and economical design.
Buy direct from the manufacturer
Modular container buildings come from the source factory, carefully selected high-quality materials to ensure quality and durability. Factory direct delivery allows you to get accommodation containers at the best price.
Customer-centric service concept
We always work with customers with a people-oriented concept to understand not only what they want to build, but also what they want to achieve.
CE certification-
fireproof standard
-
ISO quality certification
-
NATA certification
-
PVOC certification
-
SGS certification
Different Applications of Container Units
Detachable containers offer flexibility to meet various temporary needs. They provide solutions that balance standardization and customization. They are widely adaptable to most temporary space requirements. Whether it’s temporary offices, worker dormitories, or multi-functional camps, they can be quickly set up.
related projects
For more than 15 years, K-home has focused on providing long-term affordable, practical, and efficient on-site space management solutions
Prefabricated Canteen & Training Rooms for a Remote Mining Camp in Tanzania
Modular Office Building in Cameroon
Prefab Workforce Housing in Malaysia
Flat Pack Containers for Music Festival in KSA
Accommodation Camp in Mali
Folding Container House for mining camp in Indonesia
