Cost-Effective Workforce Housing in Malaysia: A K-Type Prefab Solution for Humid Climates
A Cost-Effective and Scalable Solution for Large-Scale Accommodation Needs
Facing a tight budget and Malaysia’s humid, rainy climate, we successfully delivered a large-scale workforce housing complex for AIMA Construction.
The project accommodates 150 workers and utilizes a K-type prefab system, chosen for its cost-effectiveness and climate resilience.
Furthermore, this case study will explore how this approach provides a durable and comfortable living solution, detailing our design choices, key challenges, and the final outcomes.
Project Overview for prefab Workforce Housing in Malaysia
| PPRJECT INFORMATION | PROJECT PERFORMANCE |
| Client: Construction Company in Malaysia | Key Outcomes: Successfully balanced budget limitations with the demanding humid, rainy climate of Malaysia. |
| Project Scope: • Workforce Housing for 150 personnel • Services included design, manufacturing, and logistics support from China to Malaysia. | Key Achievements: • Utilized K-type prefabricated modular building structure. • Successfully completed logistics and final delivery integration in Malaysia. |
| Core Challenges： • Maintaining a balance between product quality and budget • Use materials adapted to the climates of Malaysia | Quality & Compliance： • All products meet quality standards • The steel frame structure is designed to withstand local conditions and has a longer service life. |
| Progress and Customer Feedback： Installation finished, customer satisfaction 100% | |
Next, we will describe this project in more detail：
What Is Affordable Workforce Housing? workforce housing meaning
Affordable workforce housing refers to cost-effective, safe, and functional living spaces designed specifically for workers employed in industries such as construction, manufacturing, agriculture, development, and infrastructure. These housing solutions must be inexpensive to build, quick to assemble, and durable enough to withstand continuous occupation under various environmental conditions.
The Prefab K-Type House: A Top Solution for Malaysia’s Needs
For Malaysia’s specific climate and project demands, the K-type prefabricated building stands out as an efficient solution. Its design is based on a standardized “K” module, where 1K equals 1.82 meters. This modular approach creates a powerful combination of flexibility and economy.
Key benefits include:
- Easy Expansion: The buildings can span up to 5K (about 9.1 meters) in width, extend to virtually any length, and reach up to 3 floors. This easily accommodates groups from dozens to over a thousand people.
- Rapid Deployment: Thanks to standardized components, on-site assembly is extremely fast. This significantly cuts down project timelines and gets workers housed sooner.
- Cost-Effectiveness & Durability: Factory-controlled production lowers overall costs. At the same time, the robust structure and materials ensure long-term stability and performance.
Therefore, for companies needing to plan long-term or short-term worker accommodation, Malaysian K-type prefabricated worker dormitories are a practical and cost-effective option.
Why We Chose K-Type Prefab Houses for This Malaysia Workforce Housing Project？
In this real project case, the client needed to build a large-capacity dormitory for their staff in Malaysia. During initial planning, several housing options were considered. However, compared to container houses and other prefabricated structures, the K-type house system offered the lowest construction cost, making it a perfect fit for projects requiring extensive accommodation but within a controlled budget.
The main reasons for choosing K-type prefabricated housing are:
Rapid deployment
Traditional construction is time-consuming, labor-intensive, and heavily influenced by weather. In contrast, K-type housing uses factory-prefabricated components, reducing on-site construction needs and assembly time by up to 60%. This rapid turnaround speed is essential for the client’s tight schedule, directly saving labor costs and overall project costs.
Excellent cost-effectiveness
Compared to other prefabricated structures, the K-type prefabricated housing system has the lowest unit price. This is crucial for the client, enabling large-scale housing construction without compromising structural safety and quality.
Long-Term Flexibility and Low Maintenance
The modular design of K-type houses allows for easy expansion or reconfiguration after the initial setup. This provides a scalable, long-term solution. It can perfectly adapt to changes in workforce size. Additionally, the durable materials used ensure minimal maintenance. This helps lower the client’s overall cost of ownership.
Overcoming Environmental Challenges in Malaysia: Our Technical Solutions
The K-type prefabricated system offers flexibility. However, delivering prefabricated labor accommodation in Malaysia requires tailored solutions for its hot, rainy, and humid tropical climate.
Here’s how K-HOME addressed these key challenges:
Challenge 1: Fighting Rust from Rain and Moisture
- Problem: Malaysia’s wet weather causes steel structures to rust quickly. This weakens the building and shortens its life.

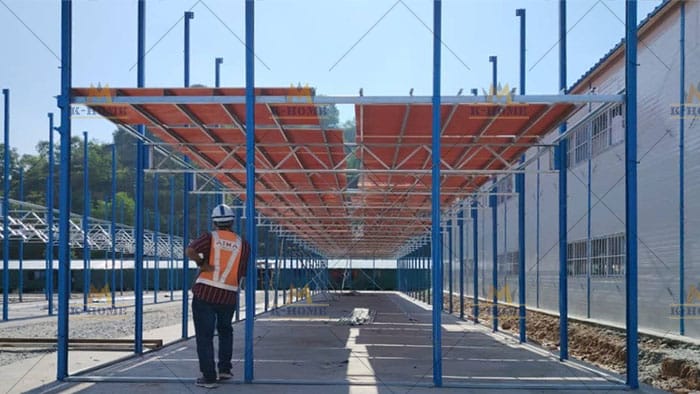

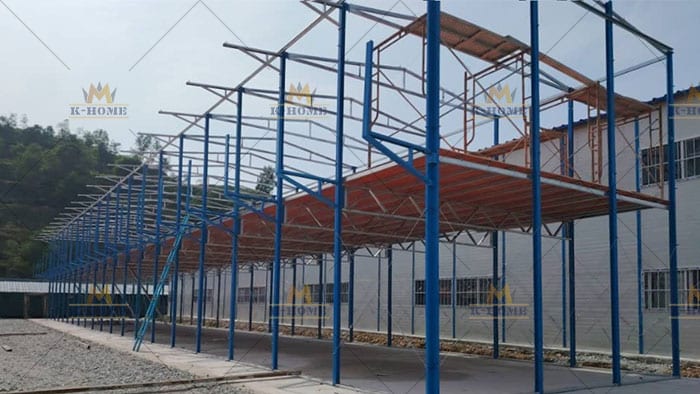

- Solution: We used a strong two-step protection on all steel frames: hot-dip galvanizing and a powder coat. This combination provides excellent rust resistance. It ensures the buildings remain stable and safe for a long time, even in constant dampness.
Challenge 2: Insulation and Thermal Comfort
- Problem: High temperatures and humidity can lead to uncomfortable indoor environments, affecting worker health and well-being.
- Our Solution: We used EPS sandwich panels for both walls and roofing. These panels are not only lightweight and durable, but their core material also offers excellent thermal insulation. This effectively blocks heat, making the interior cooler and more comfortable. Crucially, the tight seal and waterproof performance of the panels prevent moisture penetration, thus eliminating the risk of leaks, mold, and climate-related damage.

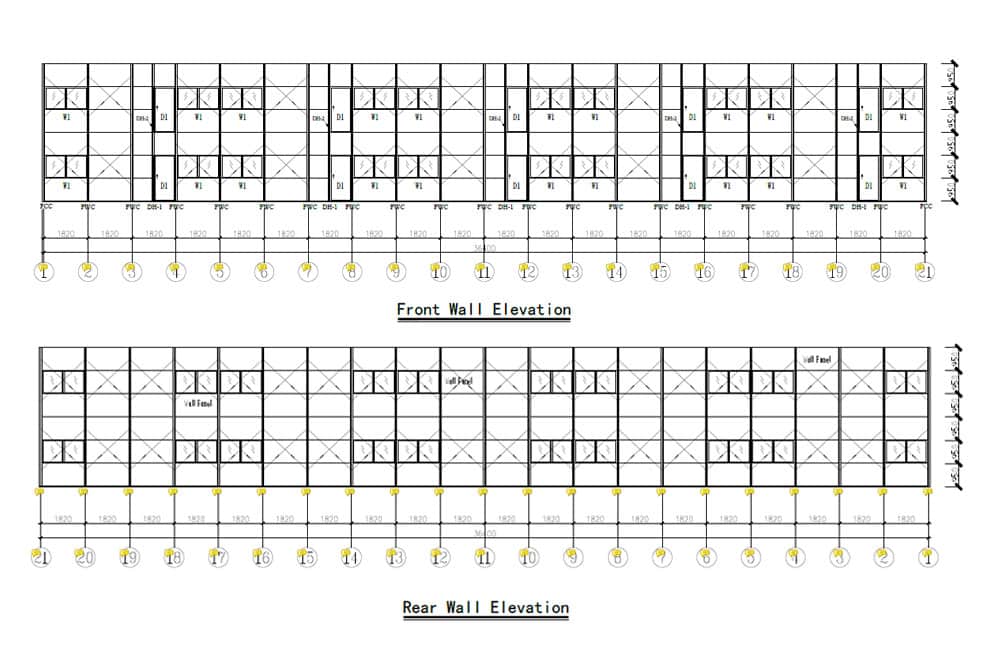

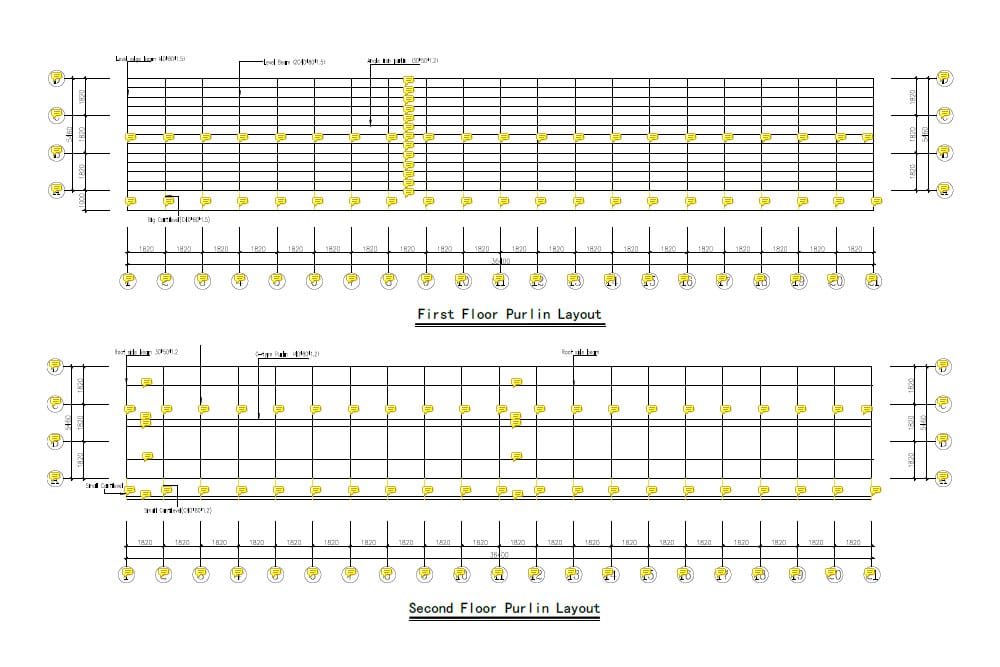

Customized Design: Maximizing Space for 140 Workers in Malaysia
Faced with limited land, the key challenge was designing a high-capacity camp without sacrificing comfort. Our team developed a fully customized layout using the K-type prefab system to achieve this goal efficiently.
Project Specifications:
- Total Capacity: 140 Workers

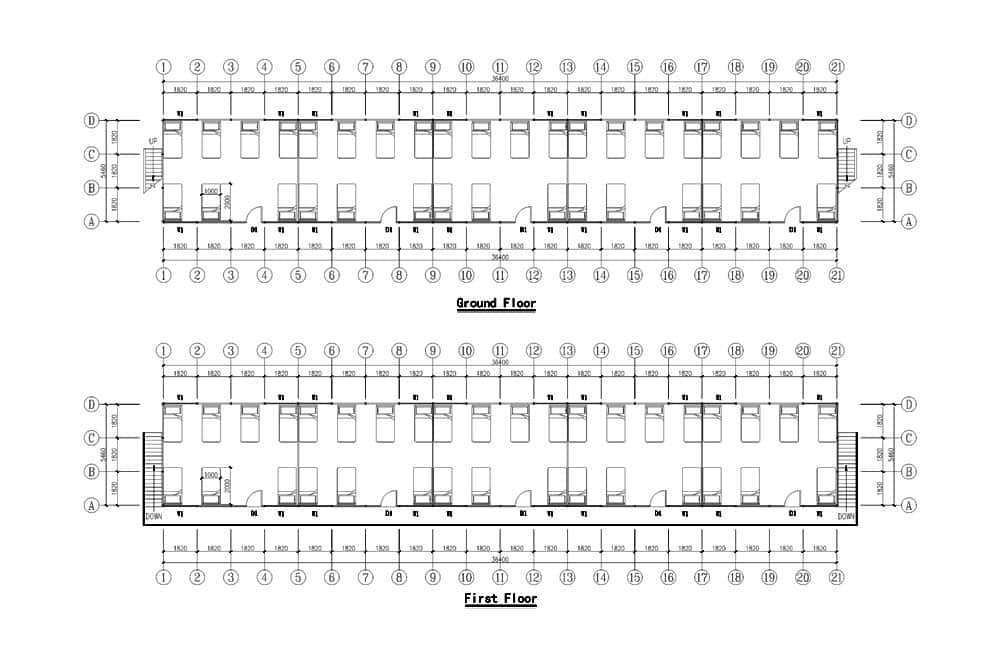

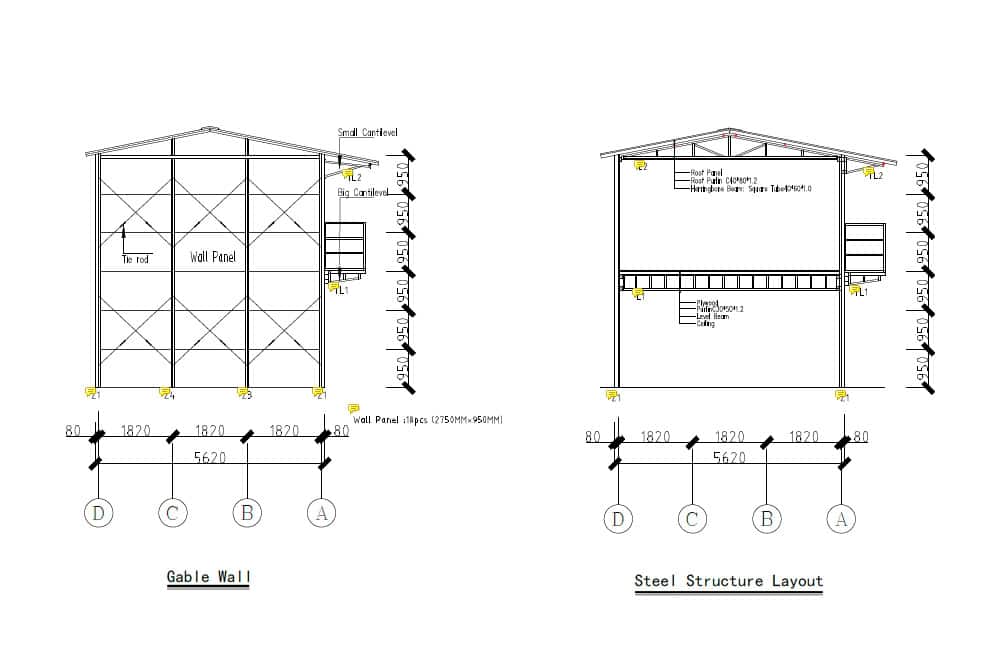

- Building Dimensions: 3K x 21K, two stories, K-type prefabricated building
- Rooms: 10 Total (5 per floor)
- Room Size: 3K x 4K
- Occupancy: 14 Workers per Room
- Optimized Room Layout: Each 3K x 4K room was carefully designed to maximize space utilization while ensuring ample privacy for all 14 occupants.
- Human-Centered Planning: The placement of windows, vents, and internal passageways was carefully planned to accommodate the workers’ daily routines. This contributes to improved natural ventilation, lighting, and safe and convenient access within the camp.
This project demonstrates that the modular and economical K-type system can successfully create high-density and highly livable worker accommodation solutions for the Malaysian market.
Transparent Price & Cost Breakdown
The main advantage of the K-type Temporary Workforce Housing in Malaysia lies in its excellent cost-effectiveness, which can save a lot of costs compared with traditional buildings.
Project Investment Overview:
- Price per m²: $49
- Total Project Cost: ~$19,500 (for a 2-storey, 3K x 21K building)
What’s Included in This Price?
This investment covers a complete, ready-to-assemble package:
- Full K-type structural system
- Insulated wall and roof panels
- Hot-dipped galvanized steel frame
- All essential fixtures and fasteners
For any business looking to expand its workforce accommodation while strictly controlling capital expenditure, the K-type prefab system presents the most economical and smart choice.
Ready to Get a Custom Quote for Your Project?
[Contact Us Today] to receive a detailed price breakdown tailored to your specific needs and scale.

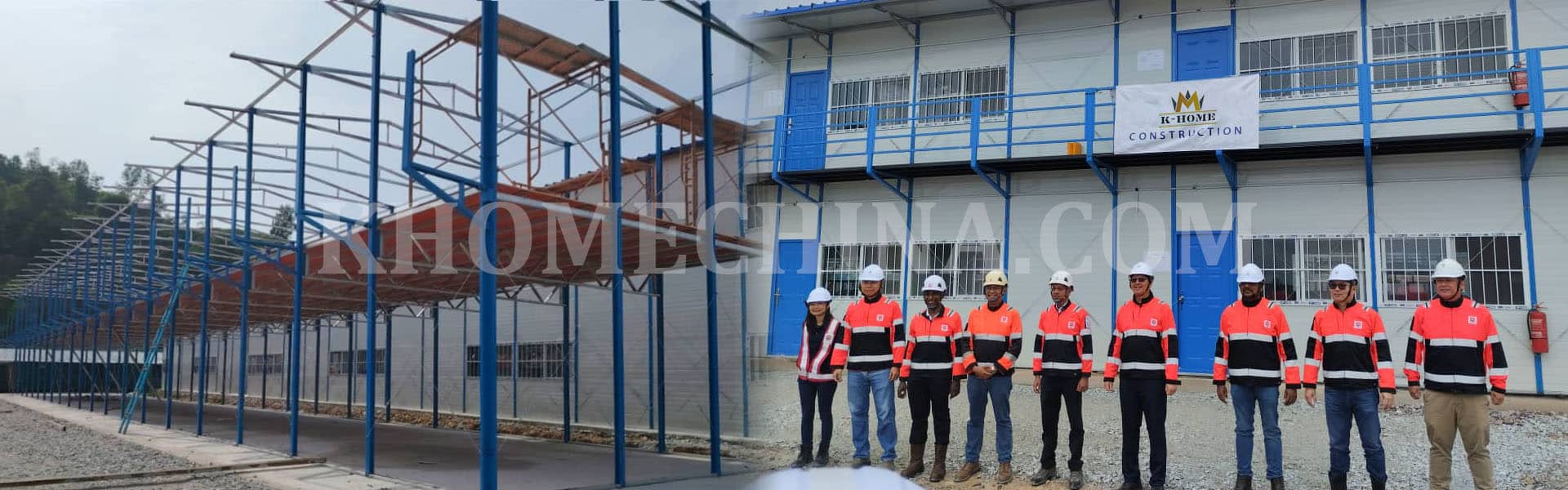

Real Client Experience
The client expressed satisfaction with the speed of installation, overall cost savings, and the durability of the finished building. They appreciated that the steel structure remained corrosion-resistant despite Malaysia’s constant humidity. Workers reported that the EPS-insulated rooms felt comfortable, even during hot afternoons.
Most importantly, the project’s efficient execution helped the company reassign their budget to other operational needs, demonstrating the true value of prefab workforce housing in Malaysia.
Why Choose KHOME for Prefab Workforce Housing in Malaysia?
Choosing the right supplier is essential for ensuring quality, safety, and long-term reliability. KHOME provides several advantages that make it a strong partner for prefab workforce housing in Malaysia.
At K-HOME, we pride ourselves on being a premier accommodation container supplier that places quality at the forefront of everything we do. From the very inception of our containers to their final installation, we meticulously curate every aspect, ensuring that our homes exceed the industry’s highest benchmarks for durability, safety, and sustainability. We guarantee that each K-HOME prefab container is built to last, withstanding the test of time and the elements.
Committed to Creative Problem Solving
We tailor each modular building to your needs with the most professional, efficient and economical design.
Buy direct from the manufacturer
Modular container buildings come from the source factory, carefully selected high-quality materials to ensure quality and durability. Factory direct delivery allows you to get accommodation containers at the best price.
Customer-centric service concept
We always work with customers with a people-oriented concept to understand not only what they want to build, but also what they want to achieve.
Comprehensive Certifications
We uphold the highest standards. Behind every building is a rigorous commitment to safety, quality, and sustainability, backed by dozens of internationally recognized certifications.
How to install prefabricated k houses in Malaysia？
Wondering about the installation process for your K-type house project? A key advantage of the K-type system is its straightforward installation. We ensure a smooth and successful setup for our clients through comprehensive support, whether you choose DIY assembly or professional installation.
Our Step-by-Step Support System:
- Pre-Installation Foundation & Planning: Before delivery, we provide all necessary foundation drawings and site preparation guidelines to ensure your site is ready.
- Detailed Documentation & Video Guidance: Upon shipment, you will receive a complete set of easy-to-follow assembly drawings and component lists. We also provide exclusive step-by-step video tutorials that visually guide your team through the entire process.
- Remote & On-Site Technical Support: Our technical team is available for online support to answer any questions in real-time during your installation.
- On-Site Supervision (Recommended for Large Projects): For larger or more complex projects, we can dispatch our certified technicians to your site in Malaysia to supervise or directly manage the installation, ensuring speed, quality, and safety.
