A-Type capsule house
Factory-Built Modular Cabin tiny Houses for Sale
The A-Type capsule house is an innovative design launched by KHOME. Unlike the common flat-roof apple capsule cabin, this model features an A-frame pitched roof similar to a small log cabin.
The A-frame capsule housing offers two key benefits: a unique exterior view and high drainage performance. With the sloped design, Rainwater flows quickly down the sloped roof, effectively preventing any pooling or standing water issues.
A-Type Prefab Capsule House Design
K20&K40 Pitch Roof Capsule Cabin
A type Capsule House Structure
Structure & Exterior Design
This capsule house is a Factory-Built cabin kit with light steel. It uses a high-strength light steel frame. The exterior is covered with metal-insulated cladding panels. That combination gives it a modern look and great insulation. Plus, the A-frame roof design is friendly to rain and snow areas.. It allows water and snow to slide off quickly, protecting the main structure from damage.
Internal Loft Vertical Space design
This standard A-frame capsule house covers 11㎡ around. But with 4 meters in height, it doesn’t feel cramped at all. Inside, there’s a flexible Loft layout. It can easily sleep two to three people. You can also customize it as a standalone creative studio, with space for both work and rest.
Modular Expansion

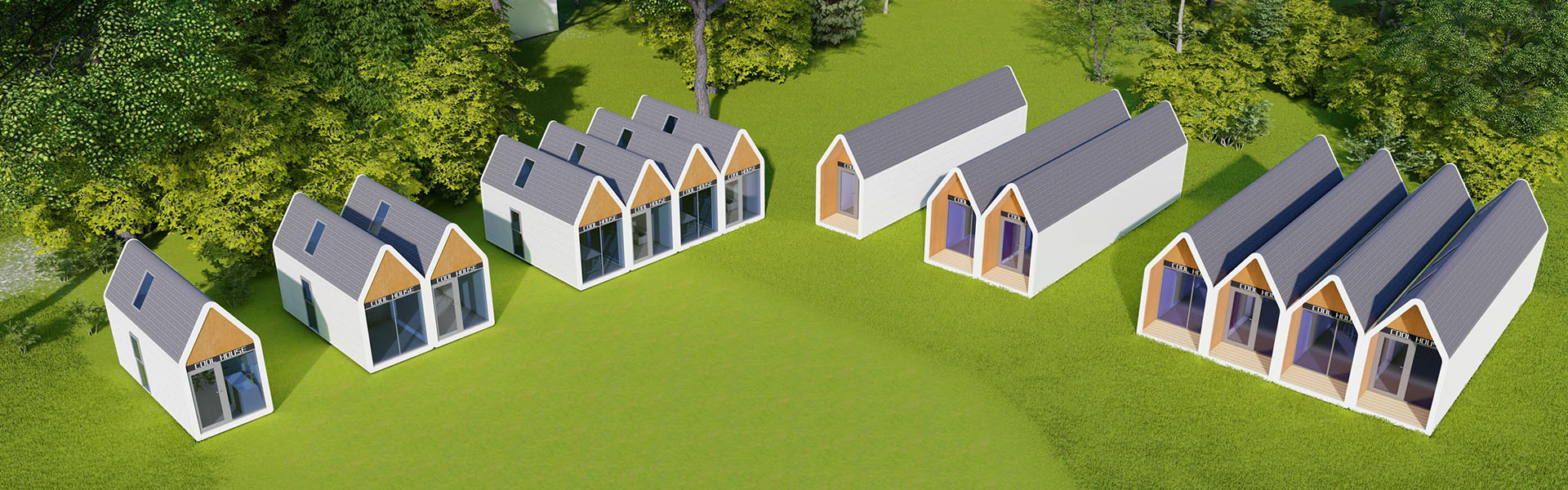

The design supports “+1” horizontal expansion. You can simply connect several units side by side. This turns the small space into a much larger area. It’s a flexible solution that fixes to different functional requirements.
20ft & 40ft Modular Capsule Tiny House for Sale
With its unique exterior design, the capsule tiny house is widely used in scenarios such as campsites, homestays, and coastal towns. It supports personalized customization and can serve as an office, accommodation, or leisure space, offering users a distinctive experience.
K20 & K20+ Capsule Tiny house model
The K20 model measures 5000 x 2250 x 4000 mm and covers 11㎡ around. A 40-foot shipping container can carry two K20 units. The interior is a loft design, allowing for flexible customization of the layout.
-

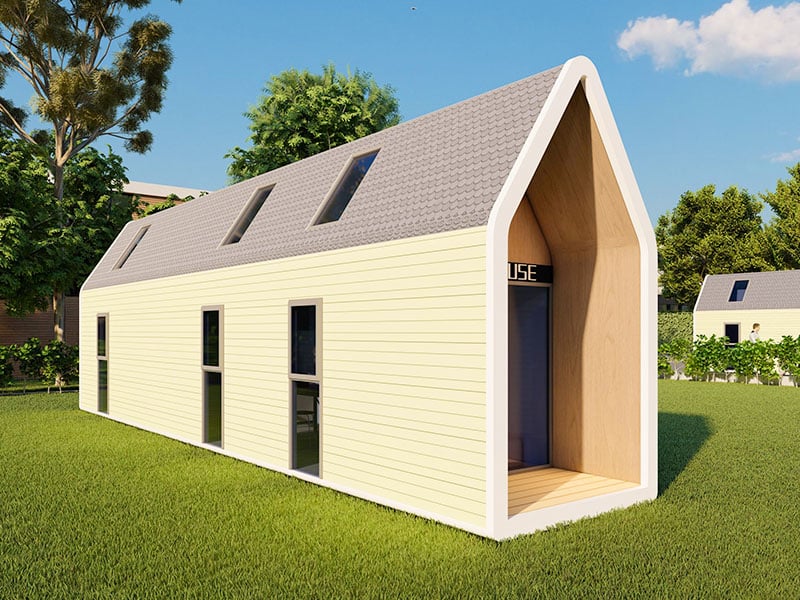

K20 Pitch Roof capsule house Exterior View -

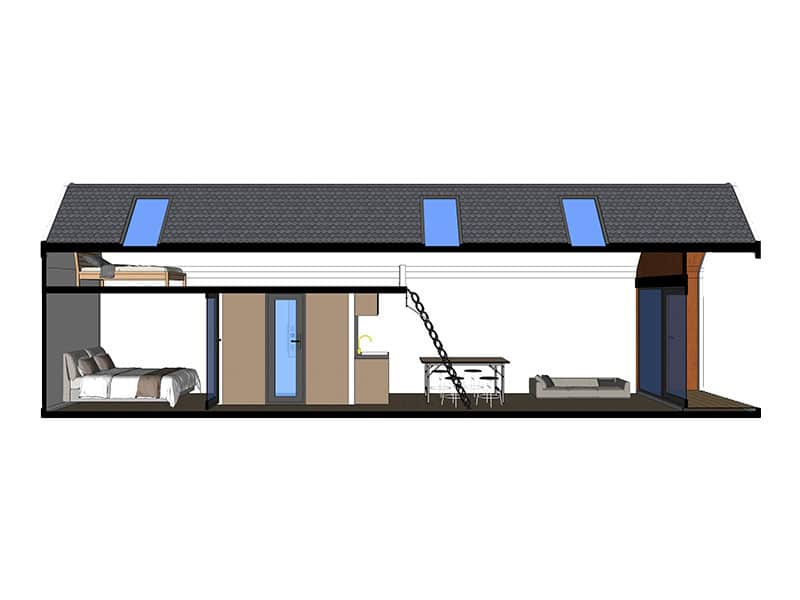

K20 Pitch Roof capsule house Section View -

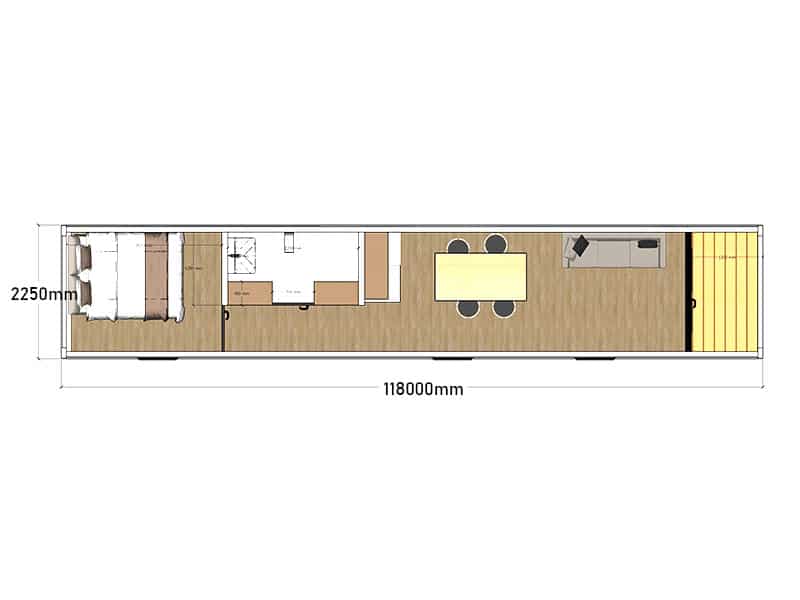

K20 Pitch Roof capsule house Floor Plan -

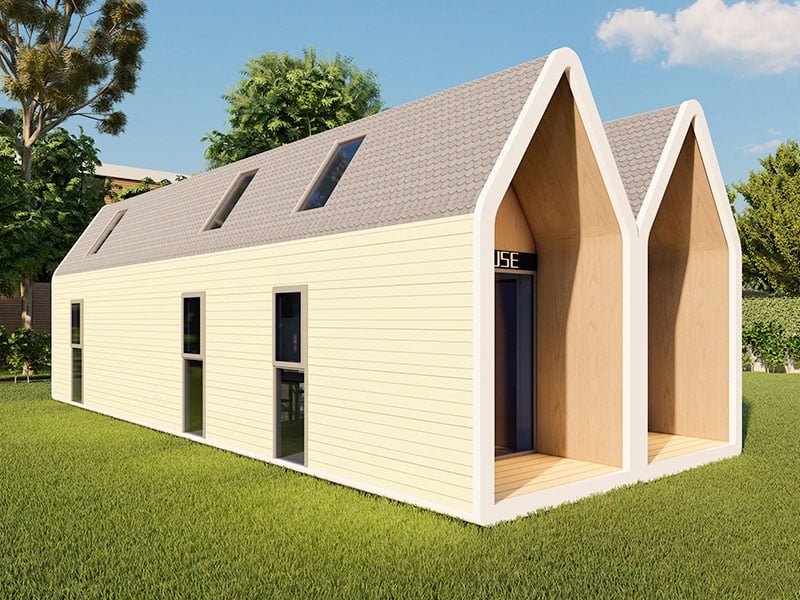

K20+ Pitch Roof capsule house Exterior View -

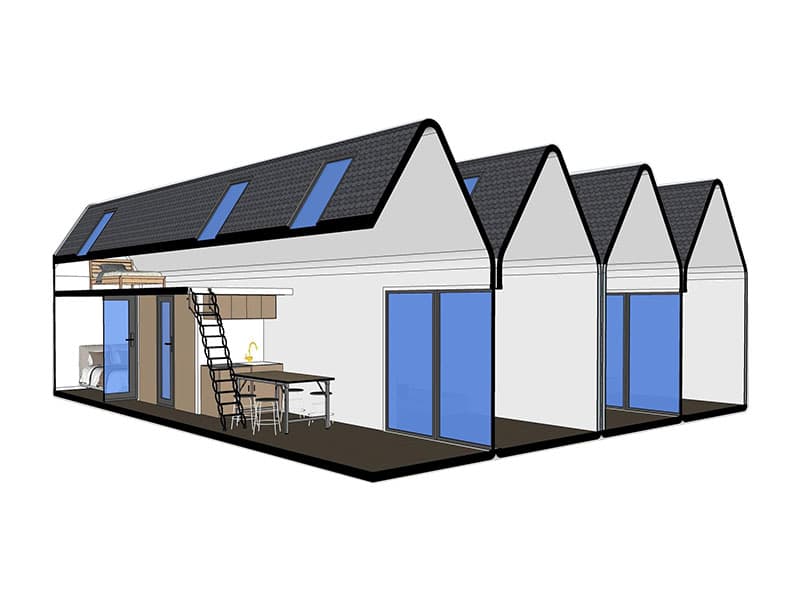

K20+ Pitch Roof capsule house Section View -

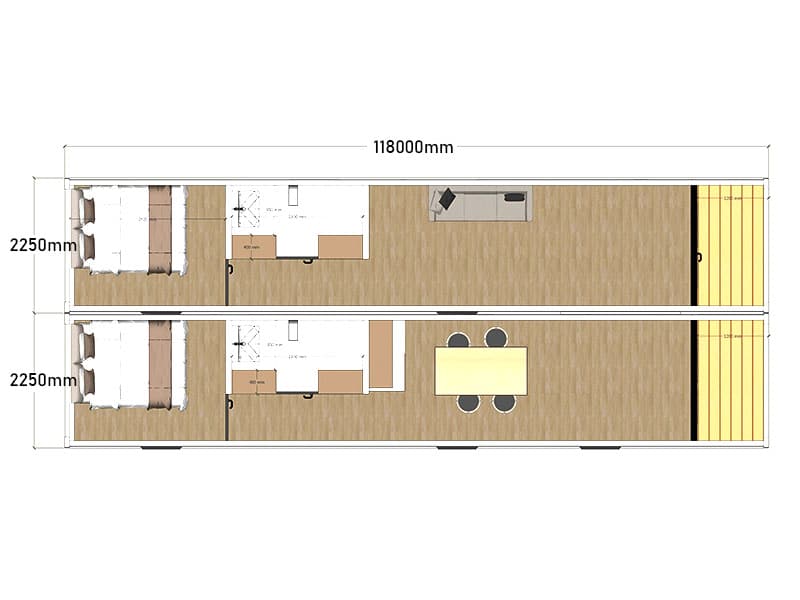

K20+ Pitch Roof capsule house Floor Plan
K20 Front View
K40 & K40+ Capsule Tiny house model
The K40 model measures 11800 x 2250 x 4000 mm and covers 26㎡ around. A 40-foot shipping container can carry one K40 units. The standard K40 model features a layout with two bedrooms, one living room, one kitchen, and one bathroom, and supports custom designs.
KHOME’s A – type capsule house technology specifications
| Profile | L*W*H(mm) | 5000*2250*4000mm / 11800*2250*4000mm |
| Roof Type | Pitched roof with natural drainage system. | |
| Number of Floors | One floor | |
| Area | 11.25㎡ / 26.55㎡ | |
| Parameters | Designing Life-Span | 20years |
| Roof Loading | 0.5KN/㎡ | |
| Wind Loading | 0.45KN/㎡ | |
| Snow Loading | 0.5KN/㎡ | |
| Structure | Main Structure | 80*160*2.0 Galvanized steel structural, steel profile Q235B |
| Wall System | exterior wall | metal cladding panel |
| frame | 50*50*1.2/30*50*1.0/20*40*1.0 galvanized square steel, steel profile Q235B | |
| insulation | 50mm extruded polystyrene board | |
| interior wall | 8mm integrated wall panel | |
| Floor System | frame | 50*100*1.2/40*60*1.2 galvanized square steel, steel profile Q235B |
| Floor Decoration | 18mm cemment board + 4mm Stone Plastic Flooring | |
| Roof System | Frame | 40*80*1.2/50*100*1.2 galvanized square steel, steel profile Q235B |
| Ceiling | OOSB Board, E1 level environmental protection | |
| External | OSB Board + Waterproof layer + asphalt shingles | |
| insulation | 50mm extruded polystyrene board | |
| Interior Finish | Bamboo and Wood Fiber Board, E1 level environmental protection | |
| Window | Aluminum alloy Window | 5+12+5 coated tempered glass |
| Door | Sliding Door | Aluminum alloy |
| Interior Decoration | Bathroom | Includes water inlet and drainage, wet and dry separation, waterproof base, toilet, shower, bathroom heater, water heater, washbasin, and vanity mirror. |
| Kitchen | 2-meter kitchen cabinets, 2-meter wall cabinets, water supply and drainage system, stainless steel sink, faucet, range hood, and induction cooker. | |
| Power supply system | Concealed wiring/Air conditioning wire 4², socket wire 2.5², lighting wire 1.5². Distribution box. | |
| External Decoration | Stairs/railings | Retractable staircases |
| Platforms | Steel structure platforms |
How Much is a Capsule Housing？
Based on the above standard specifications, the A Roof Capsule House price is typically USD 8,500/unit. USD 8,500 is the ex-work price for one unit. You can request us to provide the total cost on FOB or CIF terms.
- FOB price = USD 8,500 × quantity + inland port charges
- CIF price = USD 8,500 × quantity + inland port charges + sea freight to the destination port
As can be seen from the above formula, the total cost per capsule house depends on the order quantity and sea freight. In a world of peace and a well-functioning market economy, sea freight usually does not fluctuate significantly.
If you need to upgrade the configuration, the total cost will increase accordingly, and the additional cost is closely related to the degree of customization. We offer the following upgrade options:
- Upgrade exterior walls to 2.0mm aluminum sheet
- Upgrade exterior walls to aluminum composite panel
- Upgrade insulation to 50mm polyurethane
- Add air conditioning
You can choose a standard solution or a customized upgrade solution. Which one you choose, Khome will provide you with a transparent cost quotation. Feel free to contact us!
portable capsule house | How to transport?
What makes this portable A‑frame capsule cabin special? It comes with a removable roof. That might sound simple, but it solves a real headache: transporting odd‑shaped houses is usually a nightmare. With this design, it’s no longer a problem.
The entire capsule is Integrated prefabricated in a factory. This modular design reduces on-site installation process. You only need a few people, and you can put it together in no time.
Chinese Capsule House Factory, Supplier, Manufacturer
As a professional prefabricated capsule house manufacturer, K-HOME is committed to providing you with safe & efficient modern tiny housing solutions.
Committed to Creative Problem Solving
We tailor each modular capsule house to your needs with the most professional, efficient and economical design.
Buy direct from the manufacturer
Modular capsule house come from the source factory, carefully selected high-quality materials to ensure quality and durability. Factory direct delivery allows you to get it at the best price.
End-to-End Service
We provide full-lifecycle services encompassing consultation, design, manufacturing, transportation, and installation. At every stage, we are dedicated to resolving all your challenges.
Customer-centric service concept
We always work with customers with a people-oriented concept to understand not only what they want to build, but also what they want to achieve.
Comprehensive Certifications
We uphold the highest standards. Behind every building is a rigorous commitment to safety, quality, and sustainability, backed by dozens of internationally recognized certifications.
