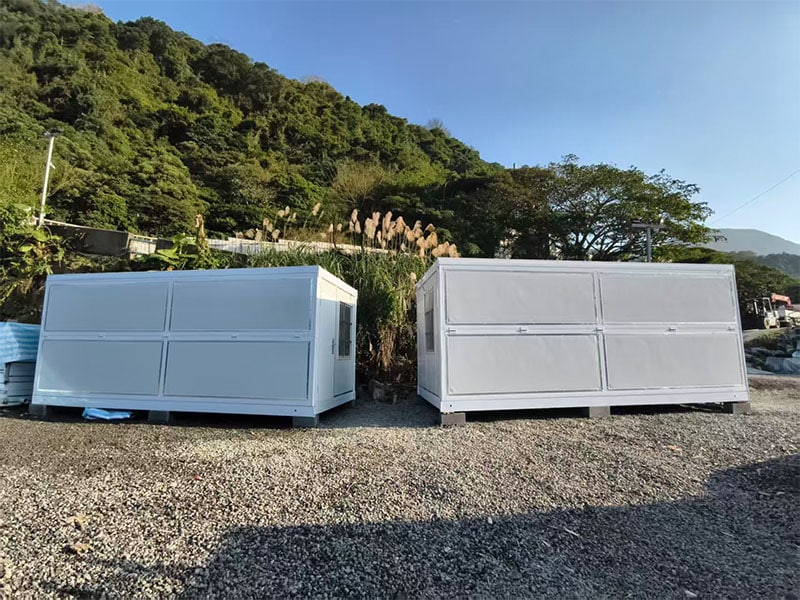

Portable Folding Container House
The foldable container house means that all the main components of the container (side walls, end walls, box top, etc.) can be simply folded or disassembled, and they can be easily reassembled when they are used again.

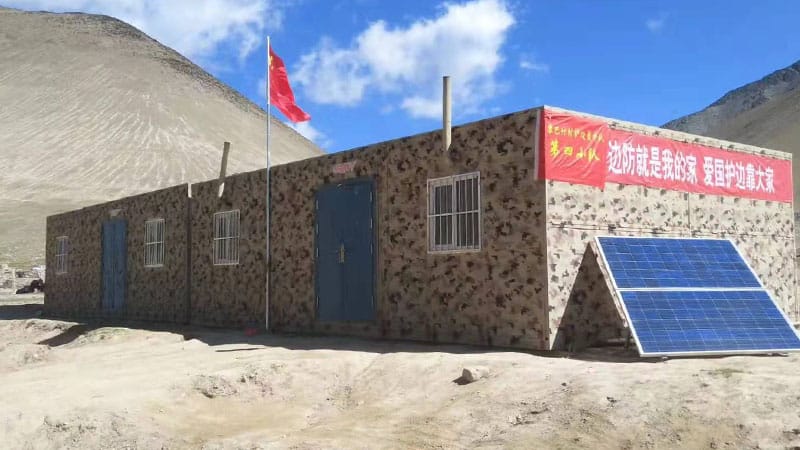

Folding container house can be quickly installed in 4 minutes and is the best solution for disaster reconstruction and construction site housing. Folding container houses are cheap, easy to install, fireproof, waterproof, and soundproof, and are widely used in construction site offices, dormitories, resettlement houses, hospitals, camps, etc. Our mission is to help low-income people develop happily with modular fast-packing houses. The projects we have exported include Philippine isolation hospital, Singapore foreign worker dormitory, Mali military camp, Kenyan school, Ethiopian container hotel, Dubai coffee shop, Guyana student dormitory, Guatemala container restaurant, etc.
Foldable Container House Details
- item No.: KHFCH
- Product Origin: China
- Size: 5800mm *2500mm * 2560mm
- Folding Height: 320mm

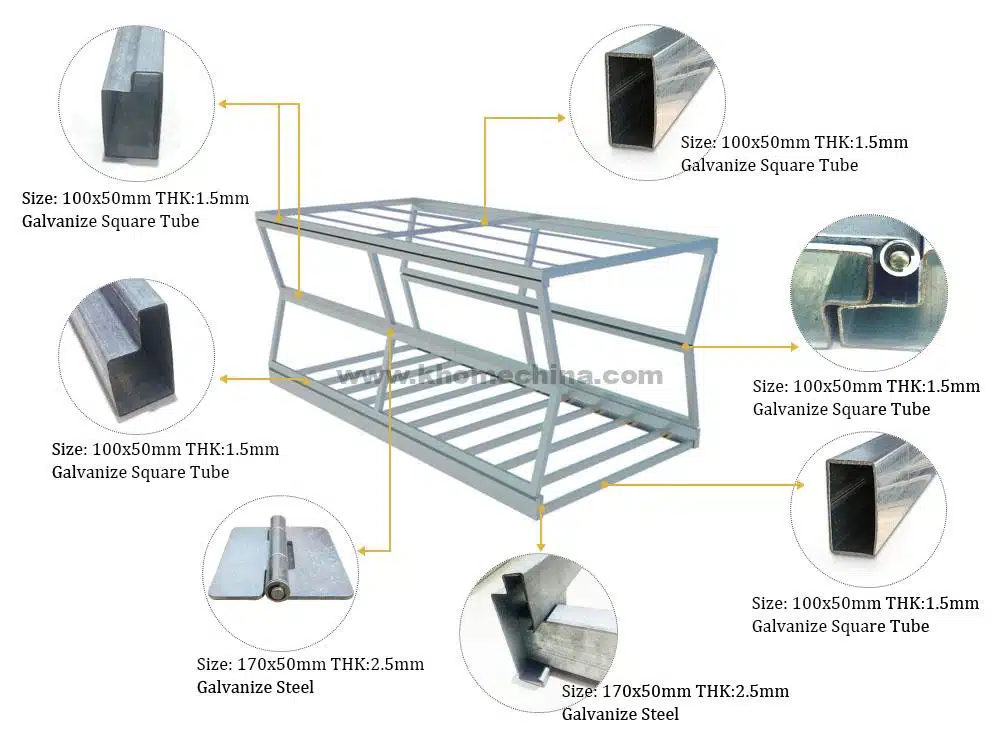

- Structure: Galvanized steel structure
- Thickness of the Wall Panel: 50mm
- Performance: Waterproof, fire prevention, sound insulation
- Color: Customized
- MOQ: 10~12 sets
- Payment: TT/LC
- Shipping Port: Qingdao Port
- Lead Time: 7~15 days

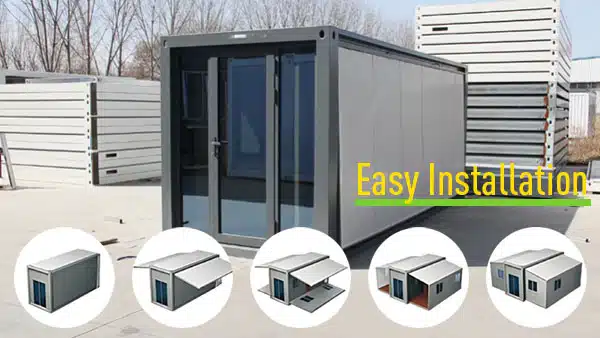

Four Steps to Build a Foldable Container House
The production and assembly of all the components of the folding container house are prefabricated at the factory. You can install the Folding House on the job site in just four steps.

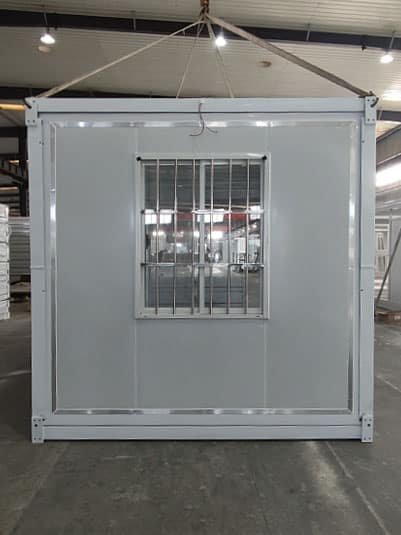

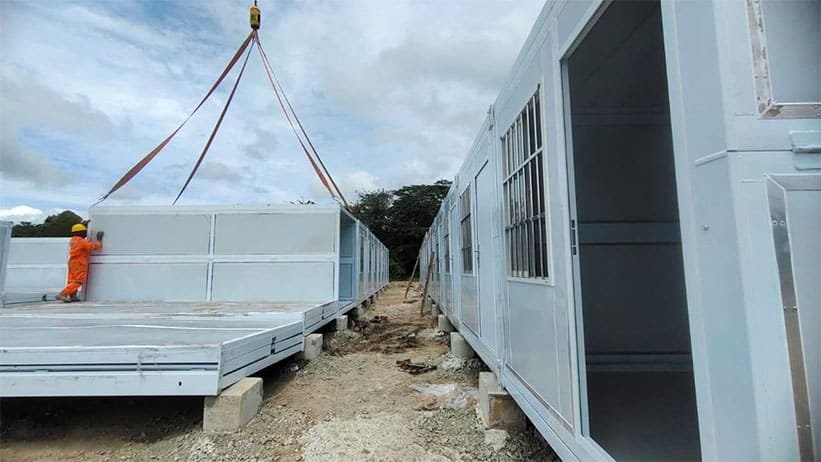

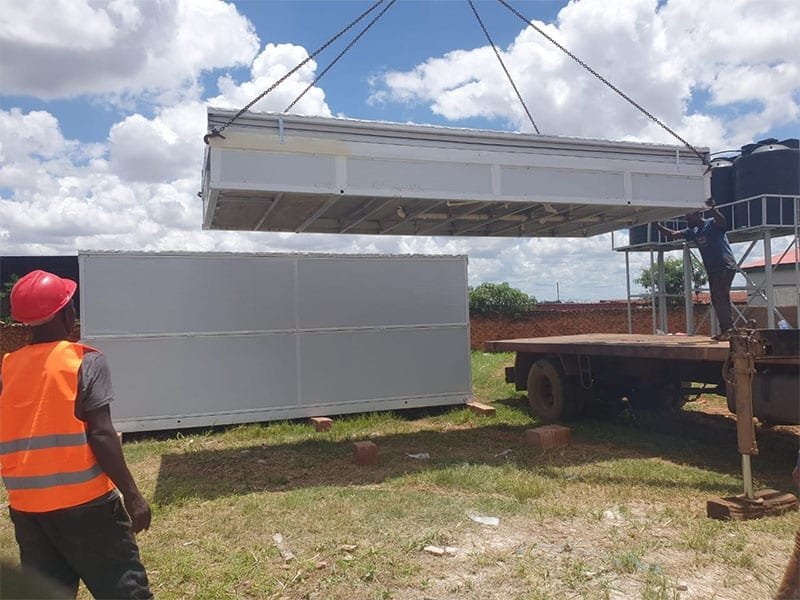

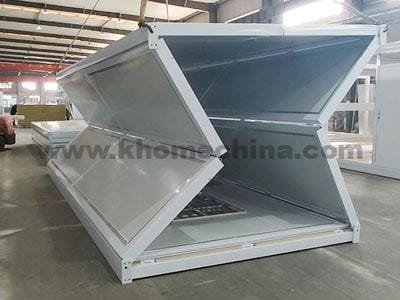

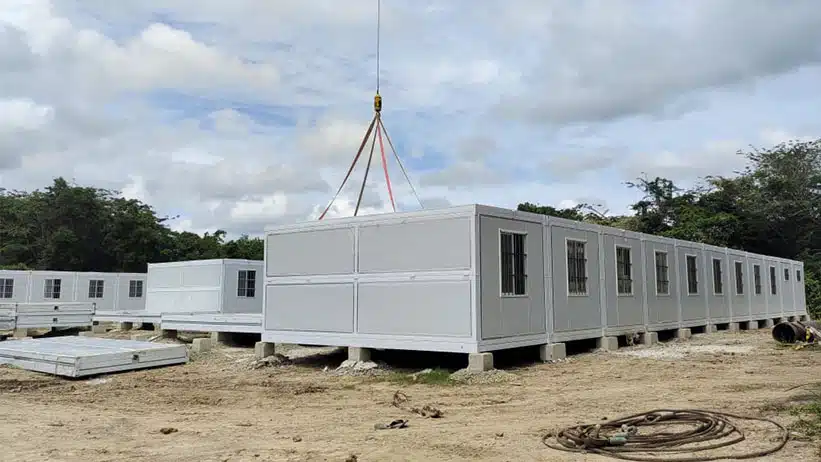

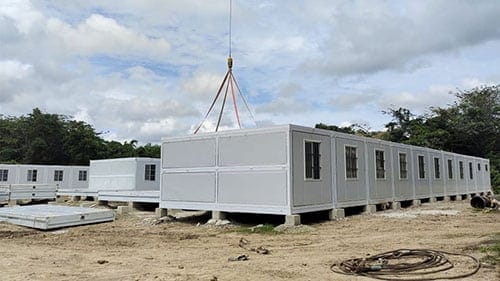

1. Use the crane to live its roof. Lift its roof slowly until the house is unfolded and stop the crane there.

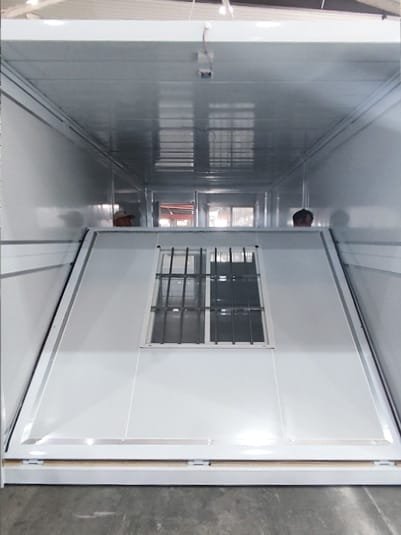

2. Expand the front and back walls of the container. Push the front and back from inside, and make it stand in the correct place.
3. Use the bolts to fix the whole structure. There will be premade bolt holes on the columns, and we will provide enough bolts for you to fix them.
4. Install the door lock. To prevent the door lock from damaging the ceiling during the folding process, we will not install the door lock in advance. If you need to move the house to another place and need to fold it, please remember to take down the door lock in advance also.

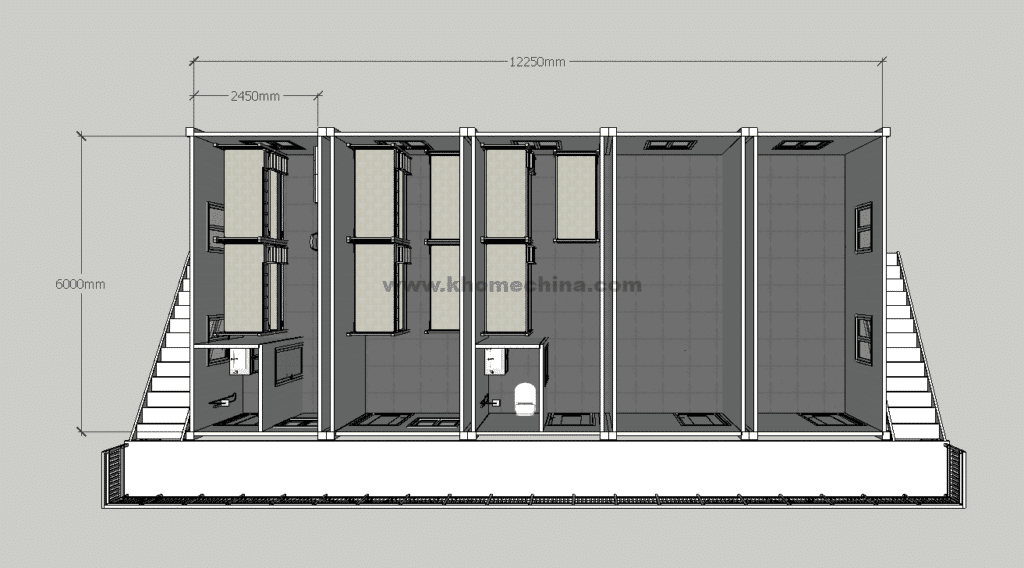

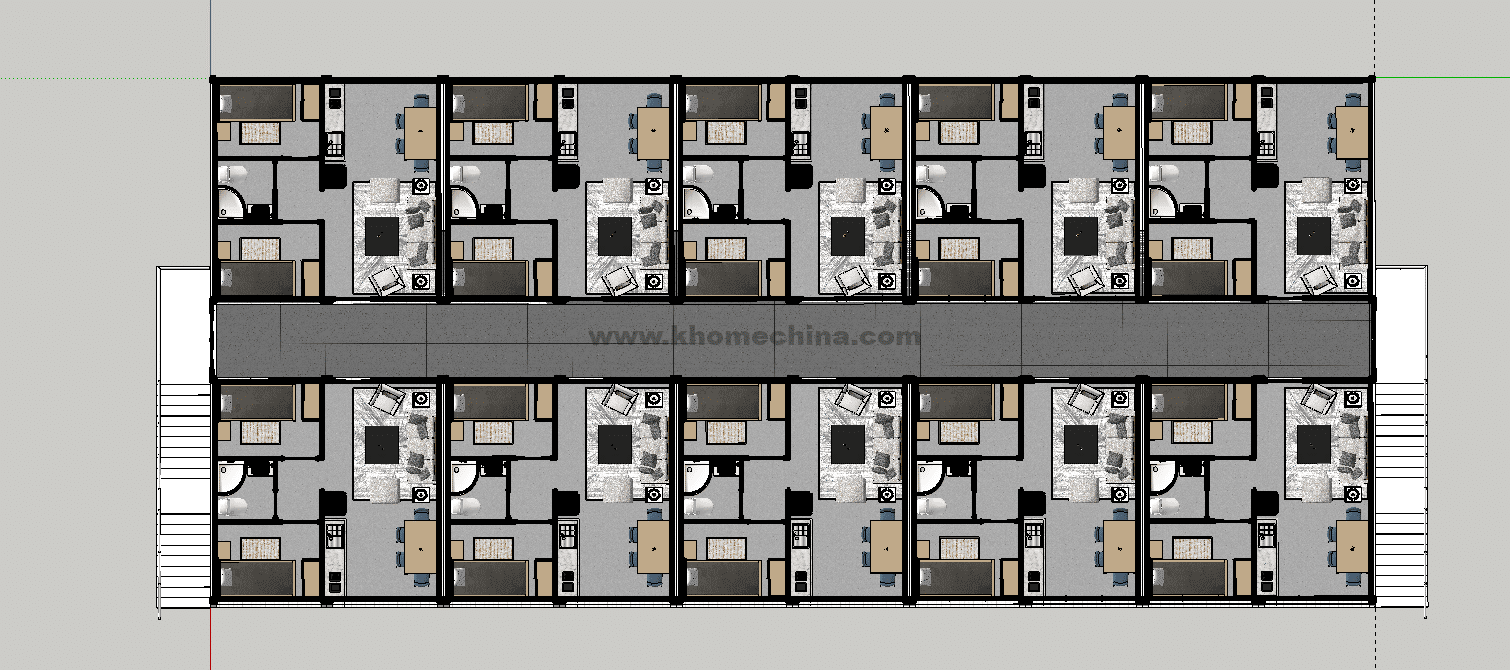

Design & Layout
The standard size of each foldable container house unit is 5800mm * 2500mm * 2560mm (LWH). The design and layout are flexible. If you have project needs, please do not hesitate to contact us, we will provide you with free customization and planning advice.
Steel Plate Colors
Please contact us to determine the color of the exterior steel plate and the material of the wall panel.
The commonly used steel plate colors are as follows:
Wall panel materials
|No.||Wall Panel Types||Thickness||Options|
|1||Rockwool Sandwich Panel||50mm/75mm||the most cost-effective choice|
|2||PU Sandwich Panel||50mm/75mm||high-end choice, better performance, more beautiful|
|3||EPS Foam Sandwich Panel||50mm/75mm||the cheapest option, the shorter service life choice|
Folding Container House Project Gallery>>

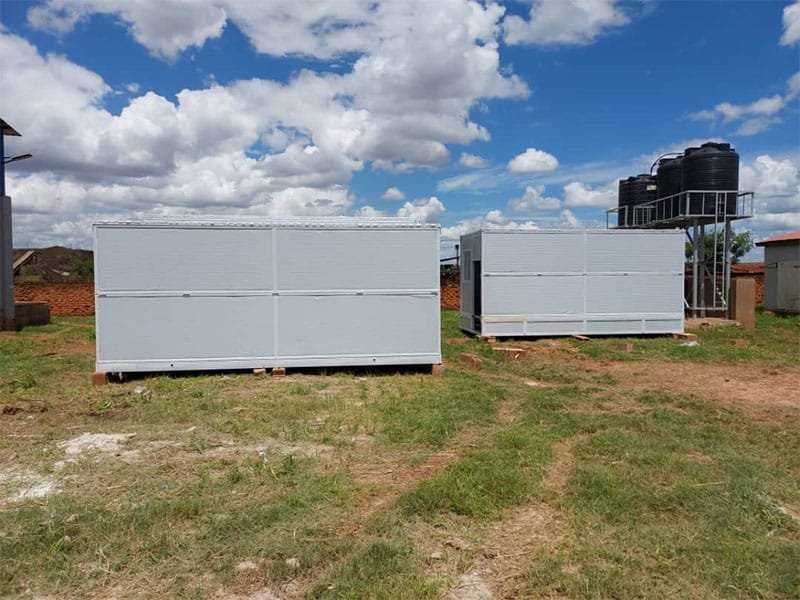

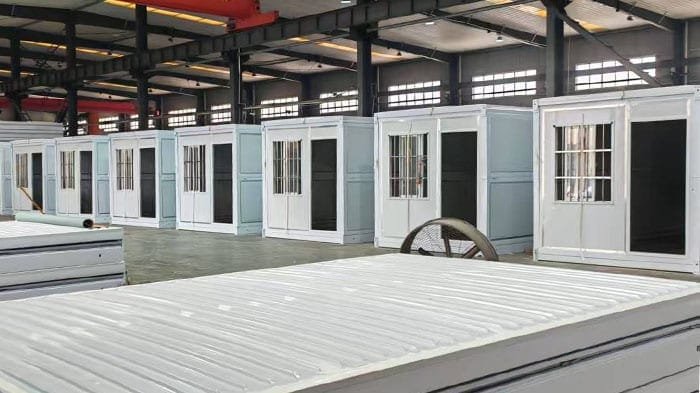

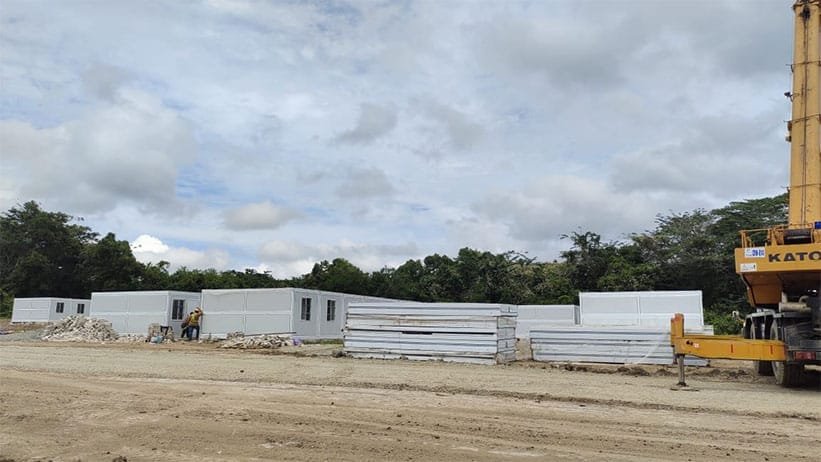

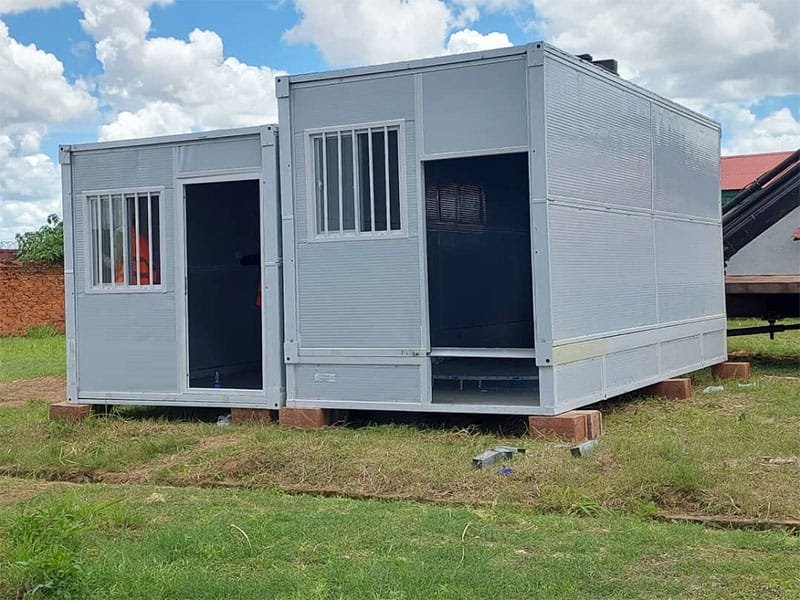

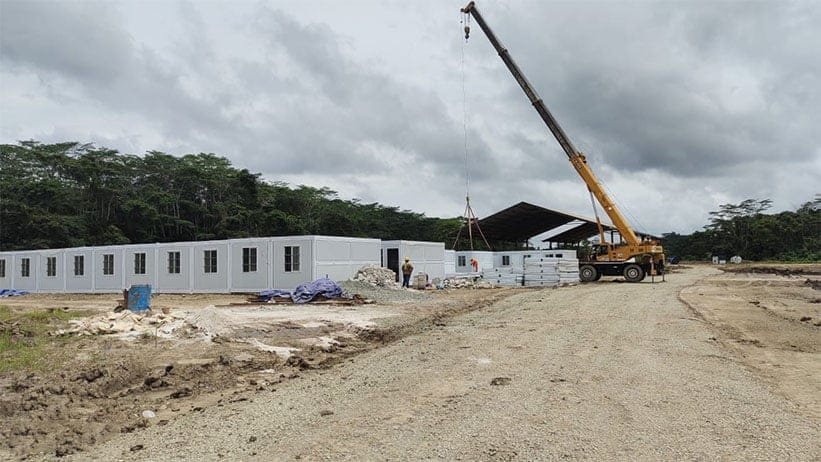

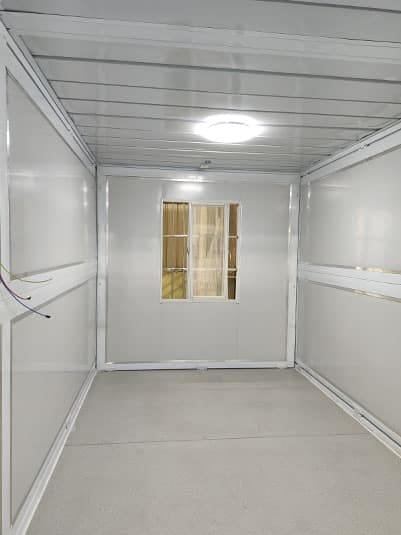

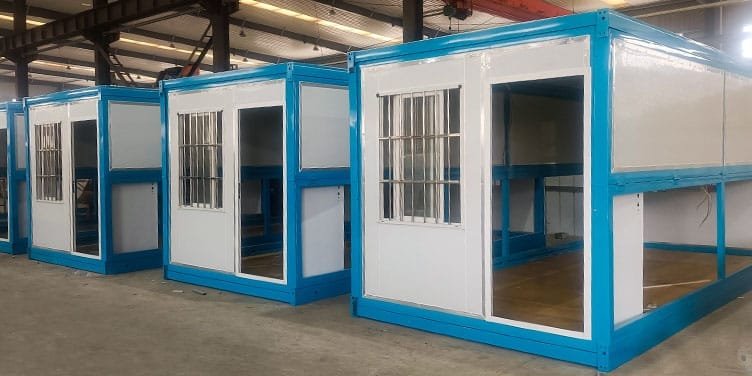

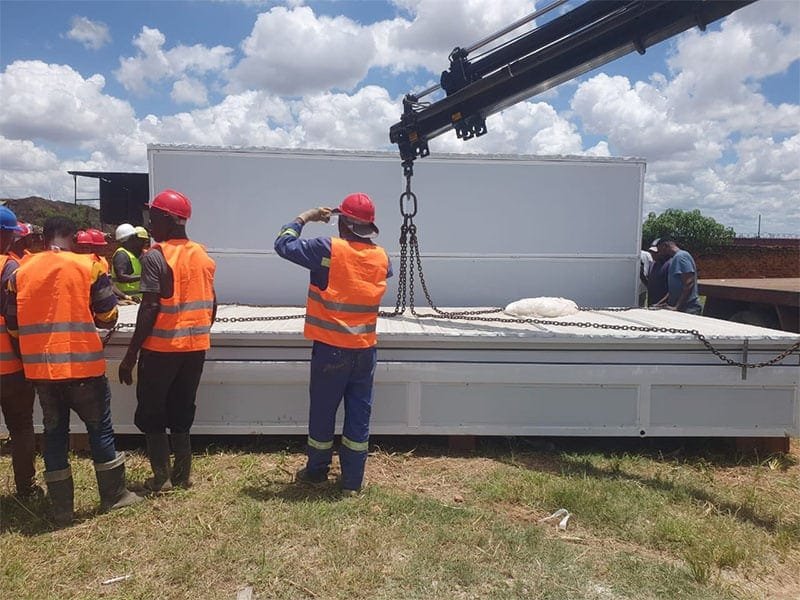

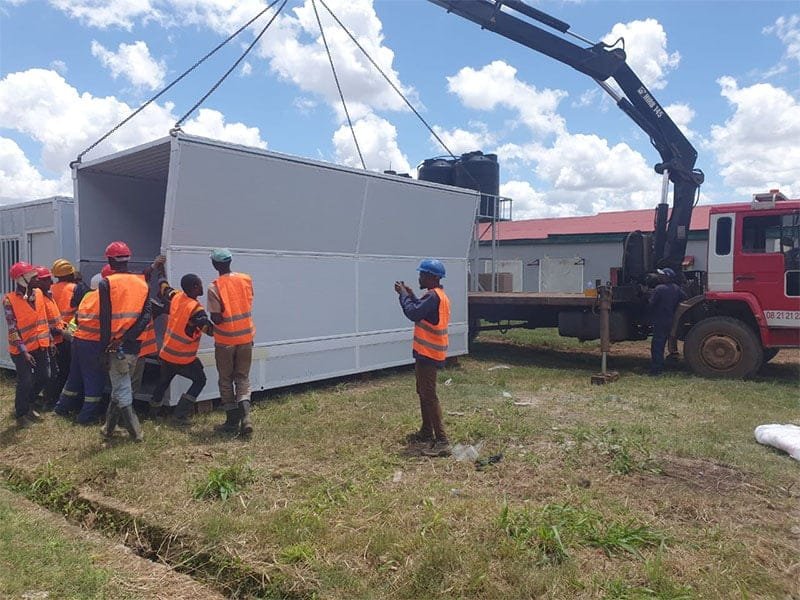

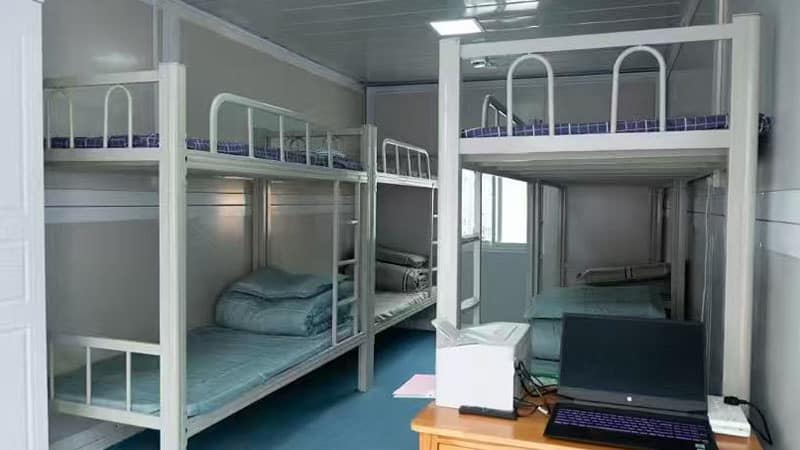

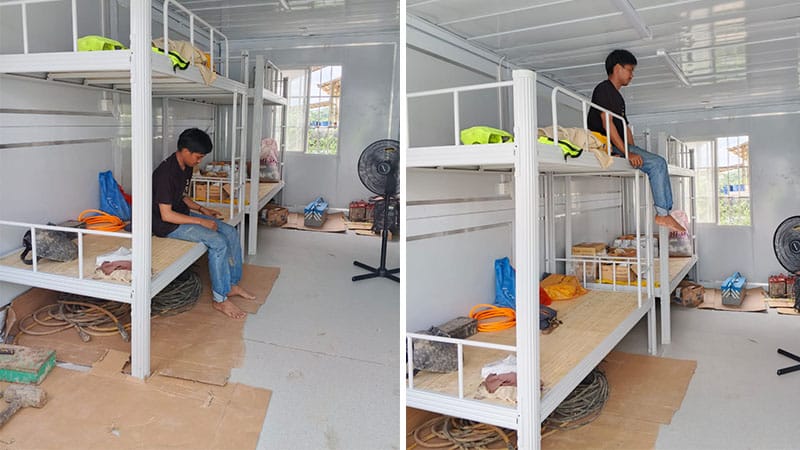

Folding Container House Interior & Installation Site
|Specification||Length*width*height||External dimensions: length 5800mm*width 2500mm*height 2560mm|
|Internal dimensions: length 5620mm*width 2260mm*height 2440mm|
|Roof form||Roof form and material|

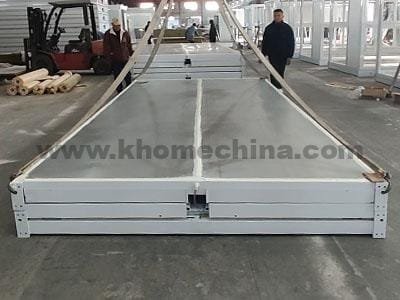

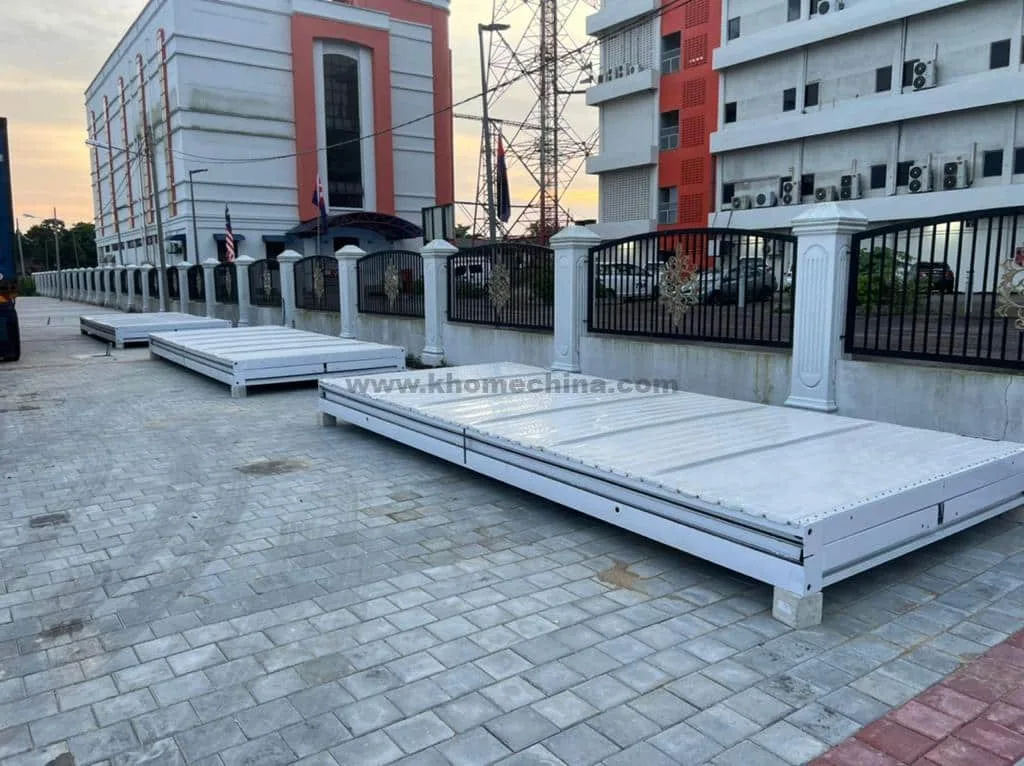

|Folded state||320mm (height)|
|Drainage form||External drainage organization|
|Number of layers||≤2 layers|
|Roof||External roof||0.45mm cover steel plate + 40mm glass wool + ceiling steel plate 0.3mm|
|Internal suspended ceiling||12 kg 50mm 0.326 Dongshang foam sandwich panel|
|Insulation board||8kg 50mm 0.236 foam sandwich panel|
|Framework||T1.2mm special-shaped pass material Q235|
|Hanging head||T16mm Q235 steel plate|
|Floor||Framework||Bottom side beam: t1.2mmQ235 galvanized steel pipe|
|End side beam: t1.2mmQ235 galvanized steel pipe|
|Beam: t1.2mmQ235 galvanized steel pipe|
|Bottom plate||T16mm magnesium oxychloride fireproof floor|
|Side Panel||All outer/end plates||8kg 50mm 0.236 foam sandwich panel|
|Framework||T1.2mm Q235 galvanized steel pipe|
|Door||1 exterior door||Steel frame; inner frame size: 977mm*2360mm|
|Window||/||2*Aluminum alloy white unilateral sliding window, frame 930/1200mm|

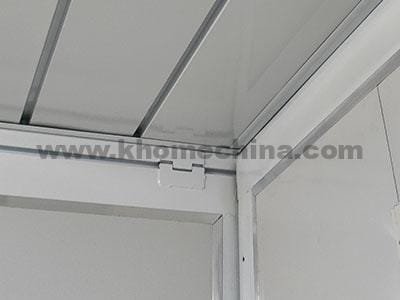

|Folding Hinge||/||T3mm 180*76 galvanized hinge|
|Electrical System||/||Electrical wiring must be safe and concealed and installed in strict accordance with moisture-proof specifications. All electrical products must comply with CE certification and support European certification.|
|Technical Index||/||Voltage 220V, 50HZ|
|Circuit Composition||/||Connect the circuit according to the circuit engineering specifications. Indoor: wall socket. Light switch, LED light 2x16w.|

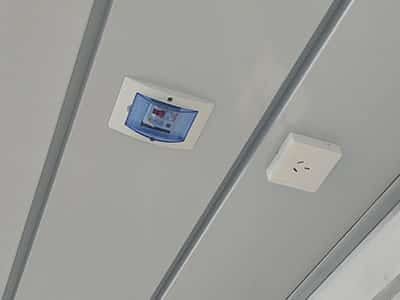

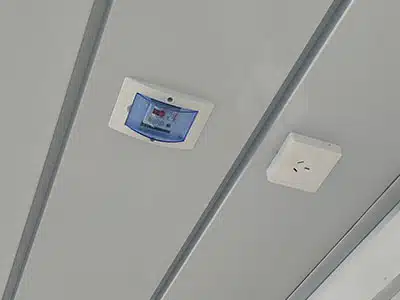

|Socket Distribution||/||Ceiling 16A three plugs*2, 10A five plugs with a switch at the front, one 16A air conditioning socket at the back, five plugs, and six.|
|Protective Coating||Overall framework||Electro-galvanized: zinc 10 microns; primer coating: zinc-rich 20 microns; topcoat: polyurethane topcoat 50 microns; total coating thickness: 80 microns.|
Folding Container House Features
- Compared with other prefab buildings, the price is cheaper and the construction time is the shortest.
- The installation can be completed quickly in 4 minutes with the assistance of a crane, especially for emergency housing projects.
- Ready for immediate occupancy without interior renovations.
- Soundproofing, thermal insulation, heat insulation, fireproof, waterproof.
- Different wall panel colors can be customized.
- Transportation: The latest model adopts a new pulley design, which is convenient for loading and unloading and avoids wear and tear.

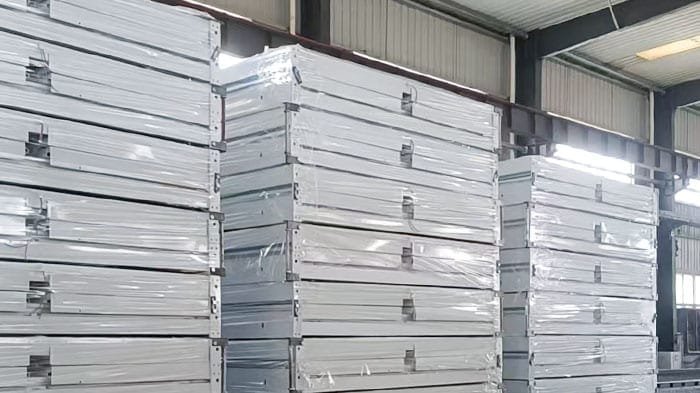

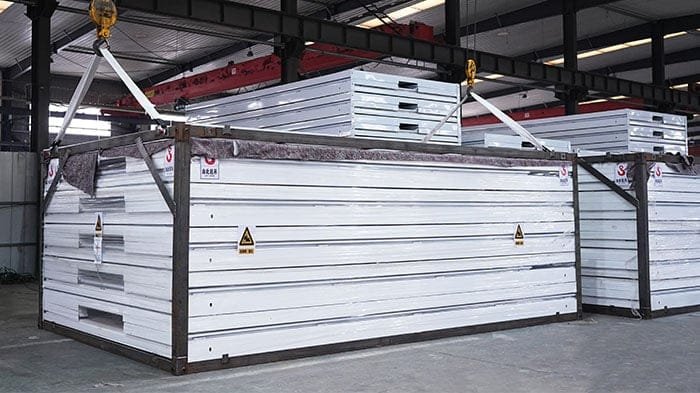

- 1*40’HQ container house can load 10 units, and the transportation cost is reduced by 50%.
- 10-15 years of service life.
China Folding Container House Manufacturer, Supplier, Factory

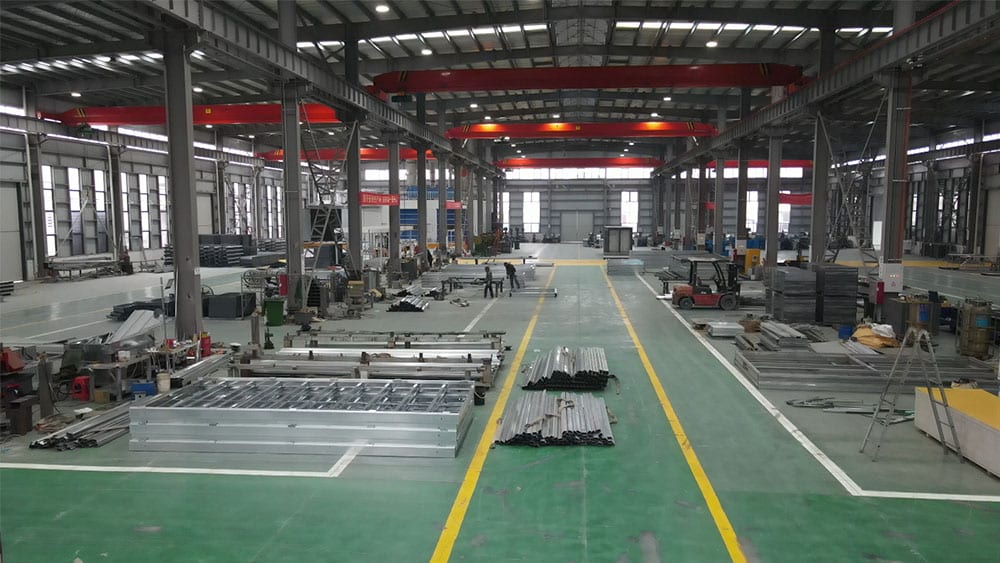

Henan K-home Steel Structure Co., Ltd is a high-quality folding container house supplier in China. We are located in Xinxiang, Henan, the birthplace of China’s container housing. Relying on the Asian transportation hub and being close to Qingdao Port, has resulted in convenient transportation and lower transportation costs. We have a complete industrial chain, and container houses in Xinxiang account for more than 70% of China’s market share.
Due to decades of rich experience in overseas prefabricated house construction as well as the accumulation of different national policies, laws, customs, culture, and climates that impact the project carrying out smoothly, K-home has been leading Chinese overseas prefabricated house construction and become a preferred provider for the well-known large-scale Chinese Construction Enterprises.
K-home insists on innovation and development. So far, our products are in a leading position, and, K-home has successfully provided thousands of prefabricated house projects in more than 80 countries, including construction camp planning, modular school construction, emergency hospital, camp facilities, customized design, transportation, on-site installation, etc. K-home has got high praise from clients for its excellent product quality, superb construction technology, and attentive after-sales service.
Folding Container House Features
1. Fast construction & Easy Installation.

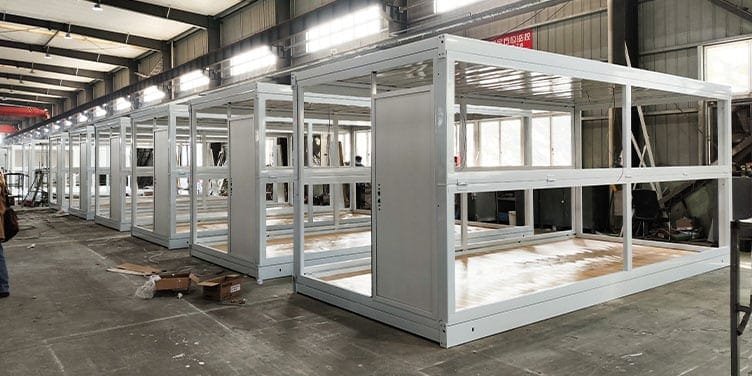

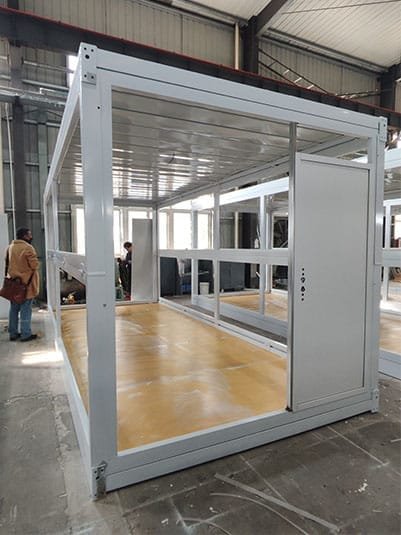

The whole structure of the folding container house is prefabricated in our factory. The window, door, ceiling, floorboard, and electric parts are all installed in advance. So when this container house is transported to your site, you only need to use a crane to lift the roof slowly, then the structure will unfold, and then you use some high strength bolts to fix the beam so the structure can stand there solidly. The whole installation process of the foldable container will only take you several minutes.
2. Repeat use many times

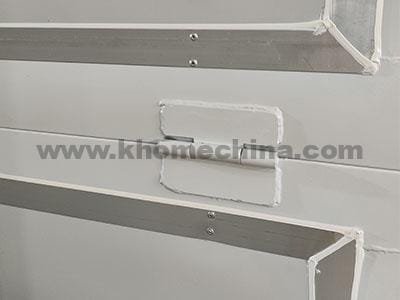

K-Home Collapsible Container House is designed and can be used thousands of times. So it’s getting more and more popular on the construction site. After you finish the project in this place, you can fold the house in several minutes and then transport it to a new project site for repeat uses. The hinge is produced by our own factory, and it’s thicker and stronger than others, guaranteeing the long life span for the whole structure.
3. Waterproof Design
This container house folding in china is improved with the development of technology upgrades. For the roof, we will create an arch, and the roof sheet is lap joint together, so the rainwater is easy to fall down, will not stay on the roof and it’s will not leak through the joint of the two roof sheets.

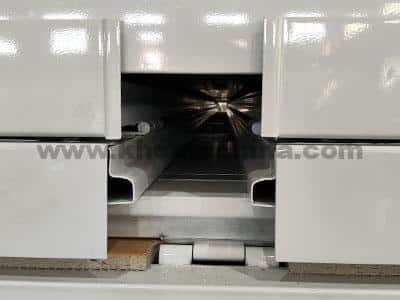

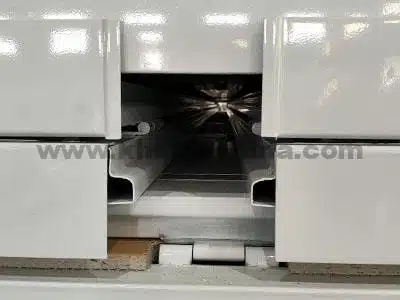

For the folding structure, the folding part is an S-shaped connection, so the rainwater will definitely not go inside through the connection joints. All the steel structure is galvanized, which means it has a good performance on the corrosive resistance. You can use it safely even if it is rainy in your local.
4. Short Delivery Time

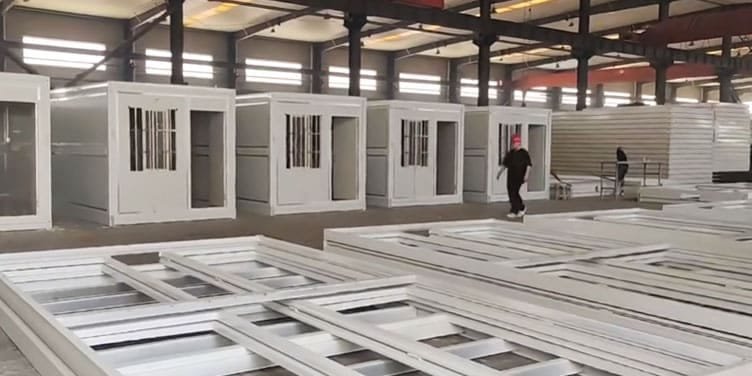

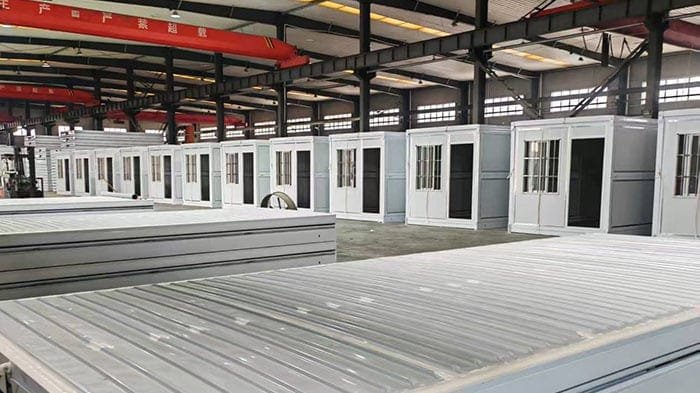

K-Home can produce ready-made container houses of about 500 units every month. If you need it urgently, we can speed it up to match your time schedule. After the Covid19 happens, we have delivered many urgent orders for temporary concentration of isolation room, which is very timely and popular used.
5. Flexible Layout

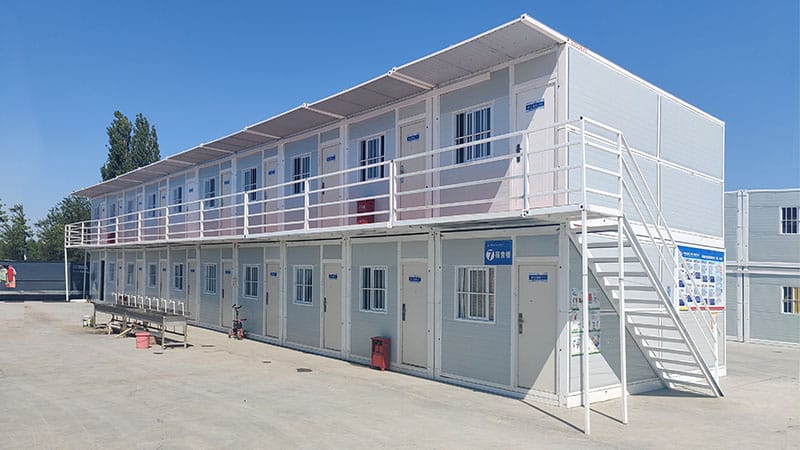

The foldable container house can not only for separate space use but also can use different units to combine together for bigger space use. It can also be stacked up for a two-floor building.

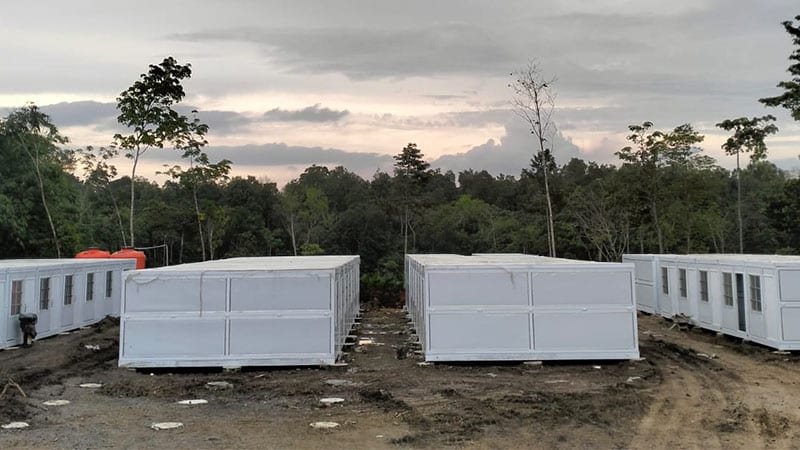

You can decide how to use the spaces freely, and we provide you with the space. For example, if you want to build a labor camp with complete functions, our easy install container house can totally meet your needs. It can not only be used as a portable office, temporary accommodation, kitchen & Dining hall, public toilet, shower rooms, but also can be used as the recreation room, meeting room, etc.
6. Eco-friendly Material
The galvanized steel and insulation material we use on the prefab folding container house is eco-friendly, satisfying the industrial standard. And it will not cause construction waste on the site when you install them.
7. Low Cost
When you start to build a residential camp, the construction material is not the only thing that you need to consider. You also need to consider the transportation cost, labor cost, and even the time cost to make a comprehensive project budget. K-Home folding container house is a standard design and highly industrialized, so its production cost is very low.

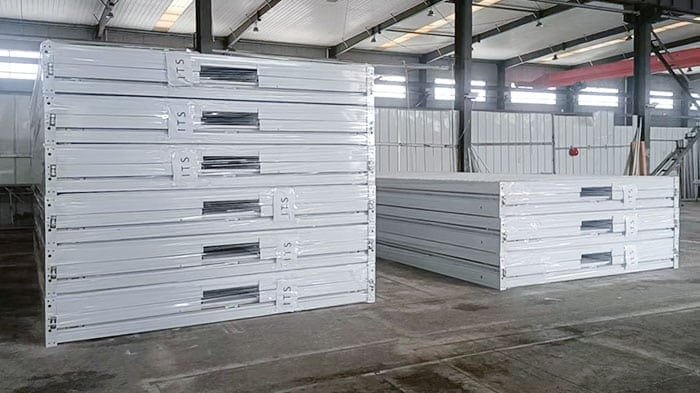

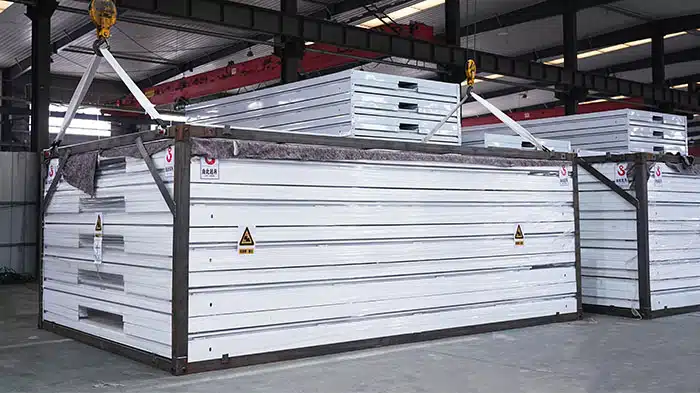

Besides, each 40’HQ shipping container can load 10-12 units folding container cabins, which can save you a lot in the transportation cost, especially at this time when sea freight is generally high.
